1.3. Channel distribution
The vertical resolution is 2° across the FOV, as illustrated in Figure 6. Channel vertical distribution (unit: mm).
1.3.1. Side connector lidar
•
The optical center's exact position is shown as a yellow dot.
•
The origin's exact position is shown as a red dot. All measurements are relative to the origin.

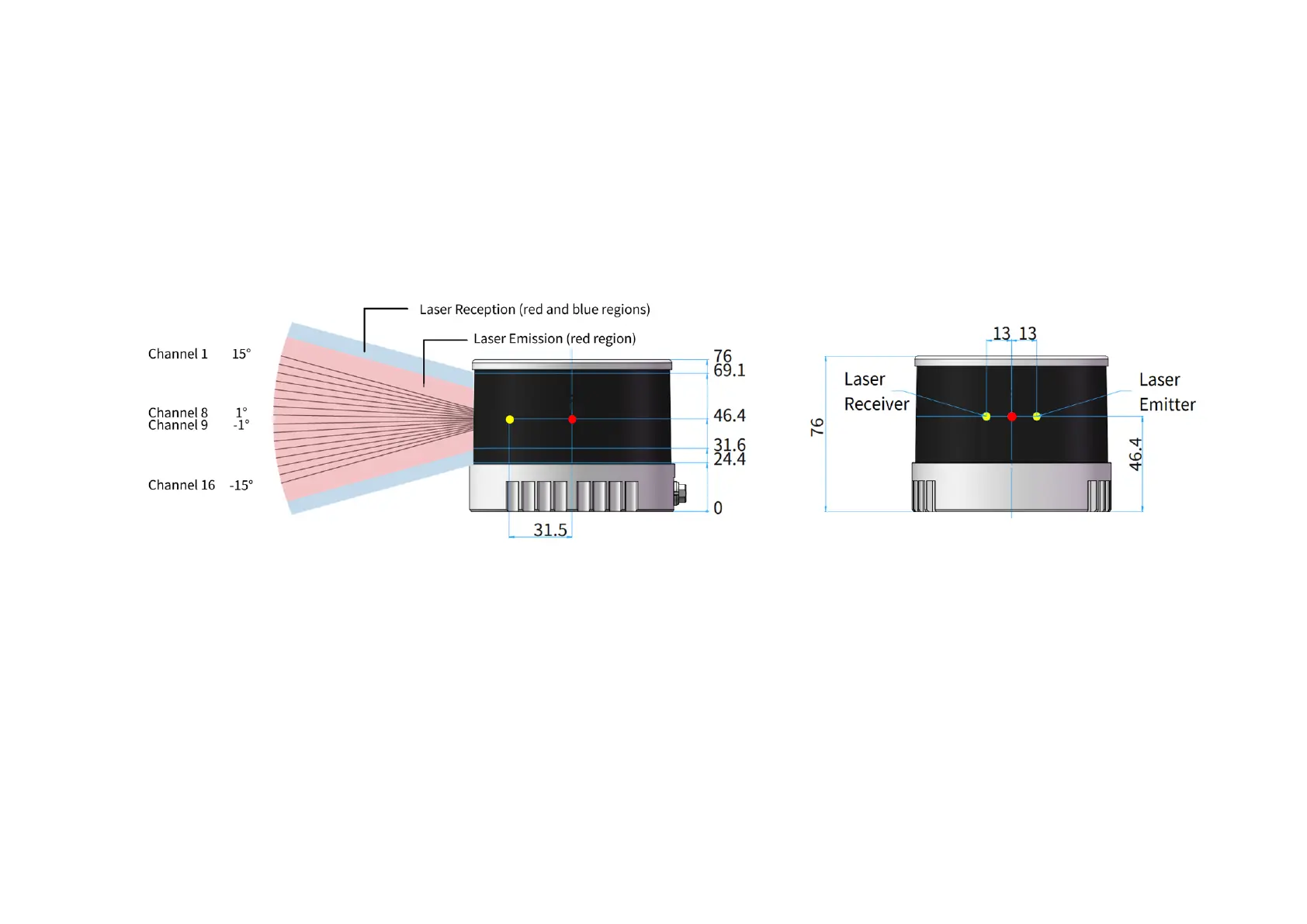

Figure 6. Channel vertical distribution (unit: mm) Figure 7. Laser emitter/receiver position (unit: mm)
