Hesai PandarXT-16 User Manual

Connection 1. Turn off the power source.
2. Make sure the red dot on the cable's plug faces upward so that the alignment key matches the slot on the lidar side.
3. Push the plug straight into the lidar's socket.
Disconnection 1. Turn off the power source.
2. Hold the plug's shell and pull the plug straight from the socket.

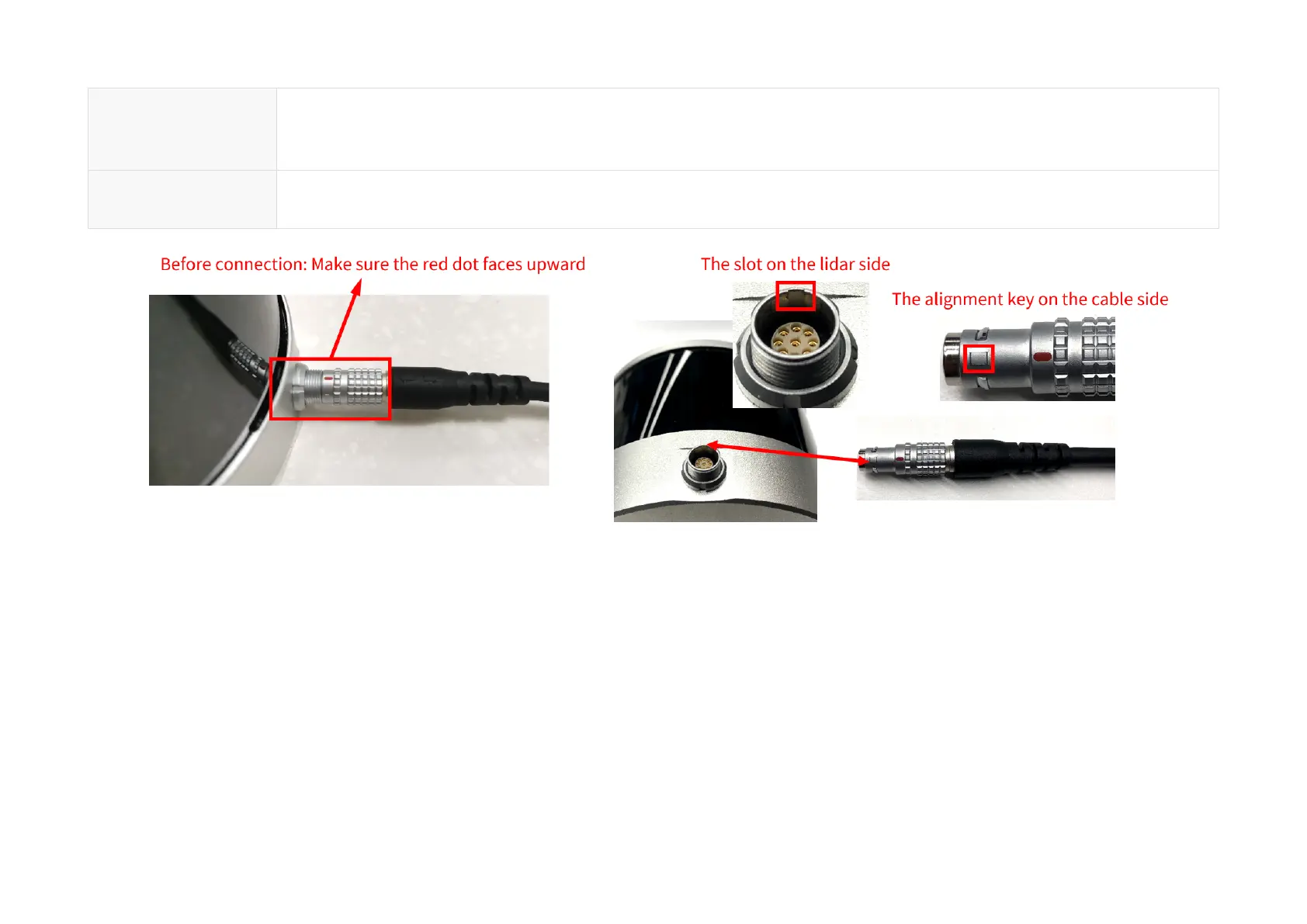

Figure 17. Connector use
