HEXMOTO Indverter V2 - 3-Wire Operation (para 02 Is Set to 0002); 2-Wire Operation (para 02 Is Set to 0001); Operation of FOR, REV and HOLD Inputs

Indverter V2 Manual
Issue 03 Dated 11 November 2009 S/w Ver 12.4 HEXMOTO
Controls Pvt.Ltd
21
Operation of FOR, REV and HOLD inputs
* If programmed command location in Para 02 is Display unit and when RUN key is
pressed, Inverter will start provided either of the FOR/REV digital inputs are connected to
GD terminal. The direction of rotation depends on the FOR/REV selection on TB.
* When both TB inputs FOR/REV are closed, the Inverter will not start if it is in Ready to
Run Mode OR it will stop if in Run Mode
CAUTION
• All digital inputs are sensed as enabled based on the type of connection as
shown in Control circuit diagram.
• All analog inputs and outputs are with reference to GA terminal. Except in
case of AI+/AI- terminal where differential input is provided
• Do not short GD and GA terminals

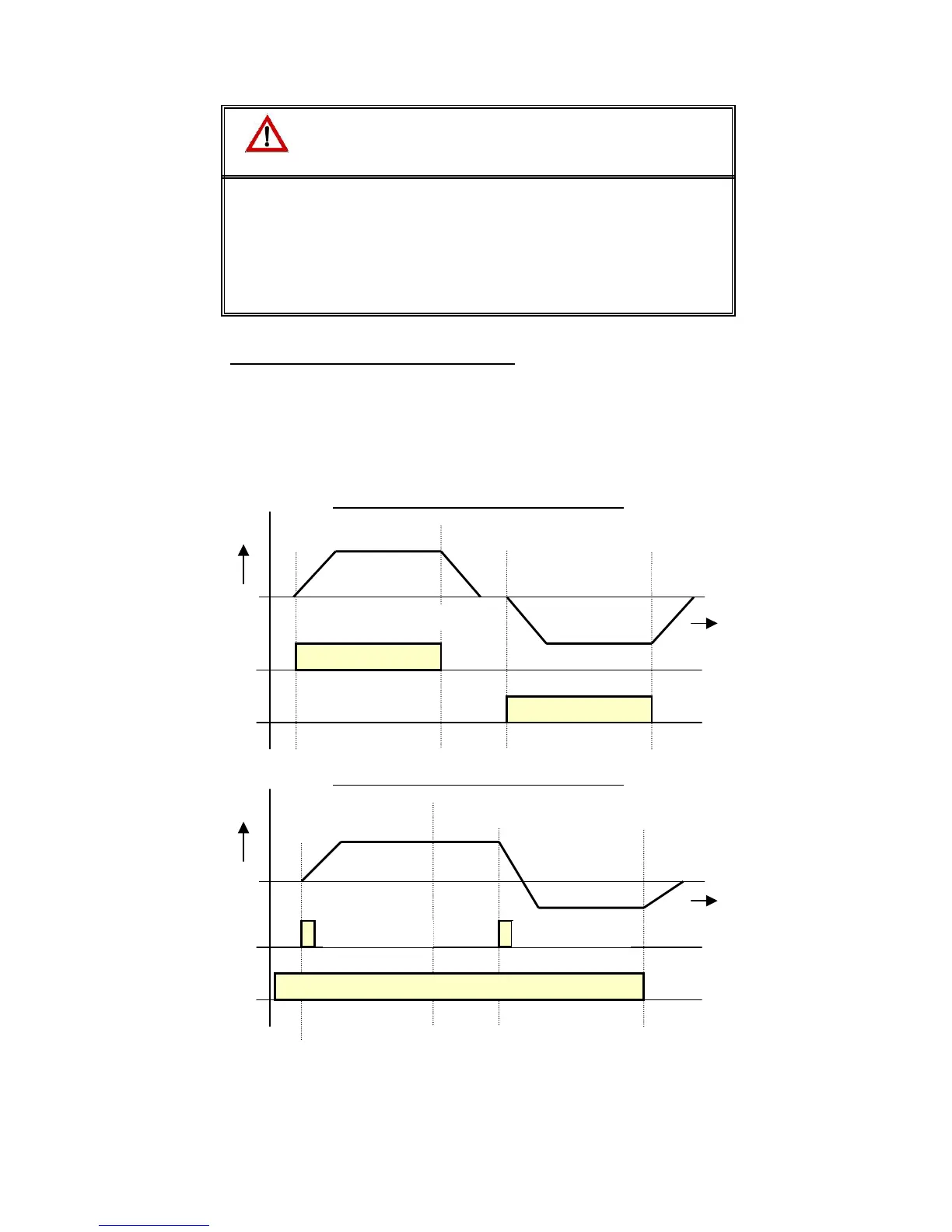

Motor
Rotation
Time
0
2-wire Operation (Para 02 is set to 0001)
FOR ON
REV ON
Start Stop
Run Forward
Run Reverse
Start Stop
Motor
Rotation
Time
0
3-wire Operation (Para 02 is set to 0002)
Run Forward Run Reverse
FOR Input 20mS REV Input 20mS
HOLD Input ON
