Indverter V2 Manual
Issue 03 Dated 11 November 2009 S/w Ver 12.4 HEXMOTO
Controls Pvt.Ltd
6

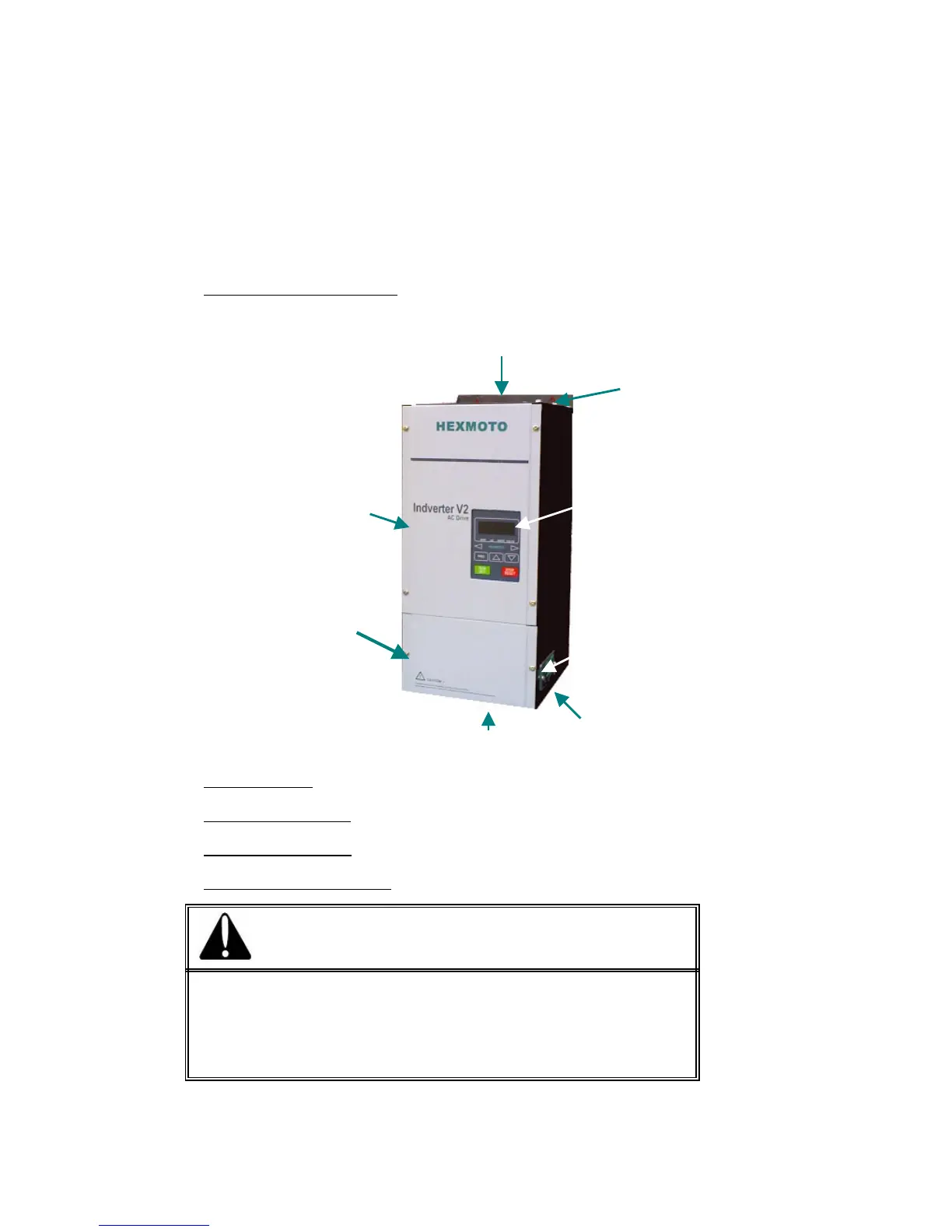

3. INSPECTION OF THE MODULE
Visual inspection of items delivered against the Purchase Order and Transit damage if any, is to be carried
out by the user before starting the process of installation and commissioning. Visual check of module parts
such as display unit, cooling fan and mounting arrangements is necessary. Except for the Indverter V2
module and the User manual, all other items are optional and must be checked for list of ordered items. In
case of Natural air-cooled modules, Cooling Fans are not mounted inside the module.
3.1. Indverter V2 drive Module
(√)
3.2. User Manual
(√)
3.3. AC Reactor – Optional
3.4. DC Reactor – Optional
3.5. Serial Display Unit - Optional
Module Ratin
g
Plate
Display Unit and Keypad
interface
Front terminal Cover
Front Module Cover
Coolin
g
Fan
Terminals for interface
WARNING
Do not open the Indverter module with Input Power ON. Indverter should be opened
onl
y
after the LED displa
y
switches off. The internal components or PCBs should be
handled/ removed onl
y
after the Red char
g
e LED on the Power board is visibl
y
OFF.
Contact with internal components while input power is ON or the char
g
e LED is ON,
may cause severe Electric Shock
To
p
mountin
g
holes
Bottom mountin
g
holes
