Indverter V2 Manual
Issue 03 Dated 11 November 2009 S/w Ver 12.4 HEXMOTO
Controls Pvt.Ltd
39
Voltage Input from VIN terminal on TB
Para 03 set to 0001
Voltage Input from AI+ / AI-
Para 03 set to 0002
Current Input from AI+ / AI-
Para 03 set to 0003. Ensure to connect JP4 on Control Card
60 Slip Compensation
The value entered here is considered as percentage slip of the motor at rated current.
(Synchronous speed – Motor actual speed at full load) X 100
Rated percentage slip = ---------------------------------------------------------------------------------
Motor Synchronous speed
Slip compensation will be disabled when this setting is 00.00. In steady state the Drive will compensate the
speed drop due load increase. This helps in improving the speed regulation
61 VOut
Drive can be configured to output voltage on Vout terminal on control TB with respect to GA (Gnd). Para 61
can be used to choose the parameters to be output from Vout terminals. All parameters are scaled to +10V
level on Vout.
Selection Parameter Vout 0 +10V
0000 Output frequency 00.00 Hz to Max.Frequency Para 04
0001 Output Current 00.00 Amps to 100.0 Amps
0002 Set frequency 00.00 Hz to Max.Frequency Para 04
0003 DC Bus volts 000.0Volts to 840.0 Volts
0004 Voltage Output Voltage output is the RMS line-to-line voltage
output to the motor terminals. At 560V DC bus,
measuring +10V at Vout terminal indicates voltage
output of 395 Volts

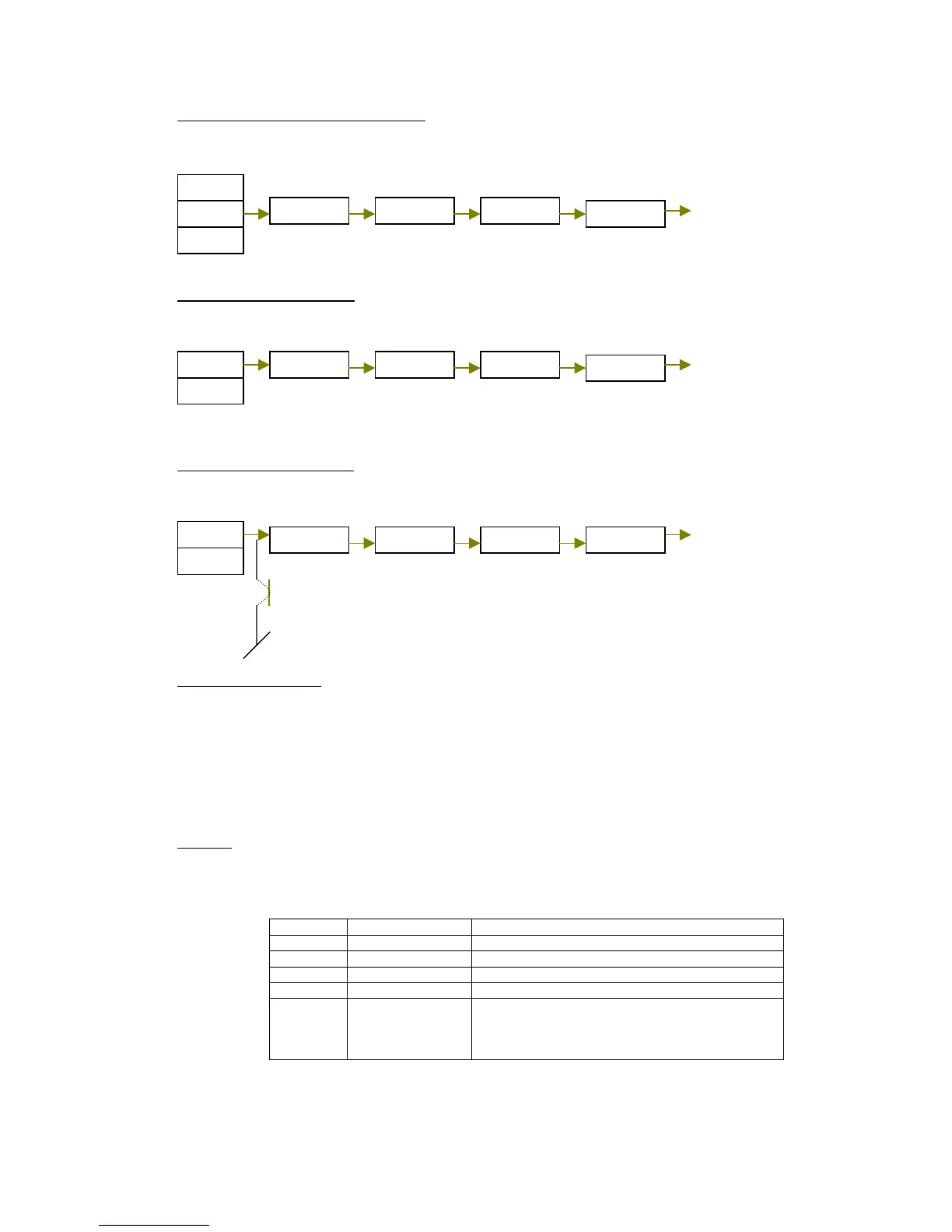

TB Analog input
10VA
VIN
GA
Para 52
VIN_Min
Para 53
VIN_Max
Para 54
VIN_Filt
Para 55
VIN_Neg
Frequency
Reference
To Next Page
