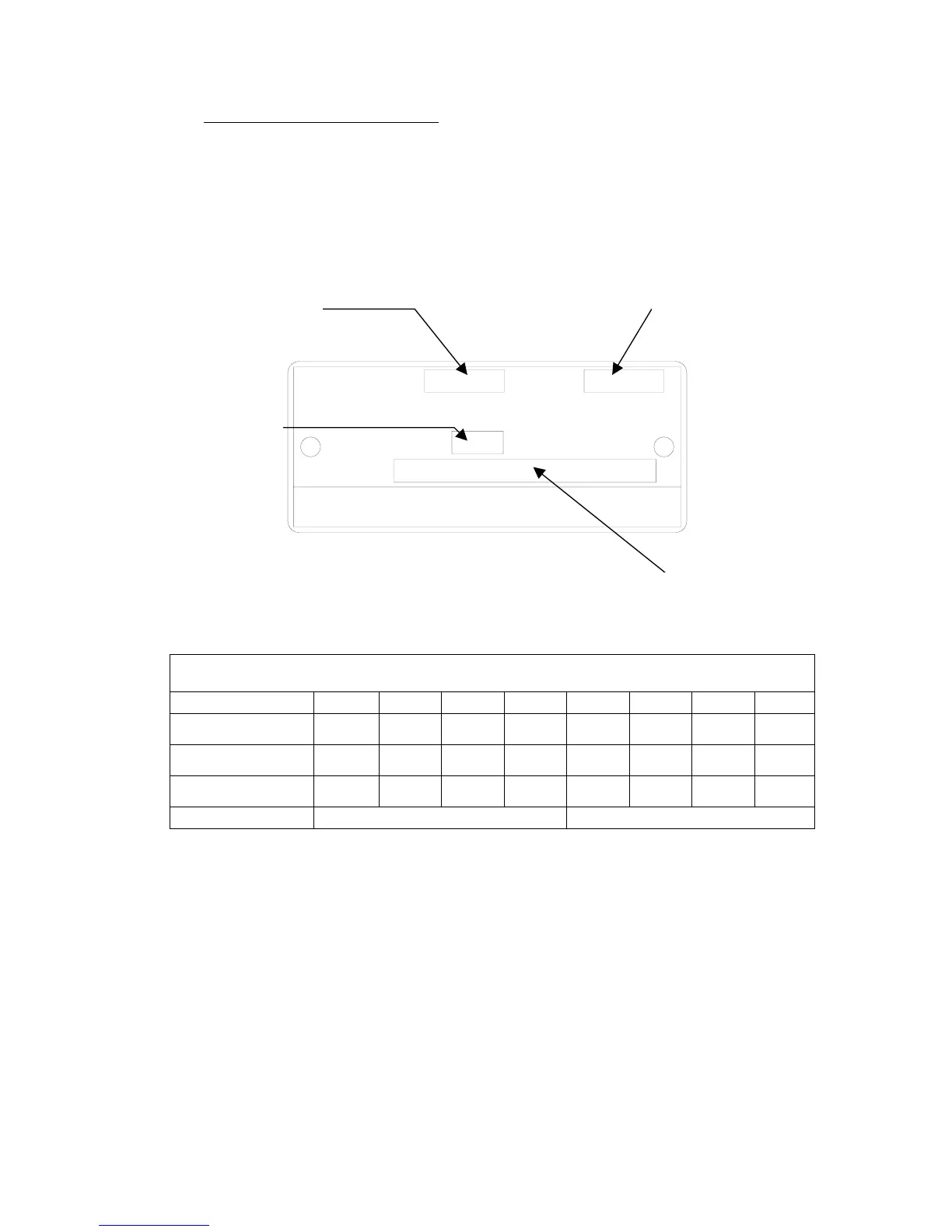

Inspection of Rating Plate details
As shown in the figure in section 3.1, user can find the rating plate on the right hand side of the module.
Rating plate contains all the details of the module such as Module Type, Input/Output ratings and
Module serial Number.
Selection Chart
Type V2 2K2 V2 3K7 V2 5K5 V2 7K5 V2 11K V2 15K V2 18K V2 22K
Applicable Motor
output in KW
0.4~2.2 3.7 5.5 7.5 11 15 18.5 22
Inverter Output at
415V in KVA
4.1 6.8 9.9 13 18 22 29 34
Rated Output Current
in Amperes
5.5 9 13 18 24 30 39 45
Dimensions (W D H) 155 x 187 x 364 180 x 230 x 468
HEXMOTO CONTROLS PVT. LTD.,
SOURCE : AC 3Ph, 415V, -15%, +10%, 50/60 Hz.
MYSORE 570018 - INDIA WWW.HEXMOTO.COM
O/P : CURRENT A FREQ.: 1-400Hz
SERIAL No.
TYPE : IND V2
CODE
Module rating
in kW
Manufacturing
Code
Rated current
of the Module
Module Serial
Number
