HEXMOTO Indverter V2 - Recommended Cable Type and Termination; Recommended LAPPKABLE Make Crimps for Single Wire Crimp; Power Cable Wiring Details; Control Cable Wiring Details

Indverter V2 Manual
Issue 03 Dated 11 November 2009 S/w Ver 12.4 HEXMOTO
Controls Pvt.Ltd
22

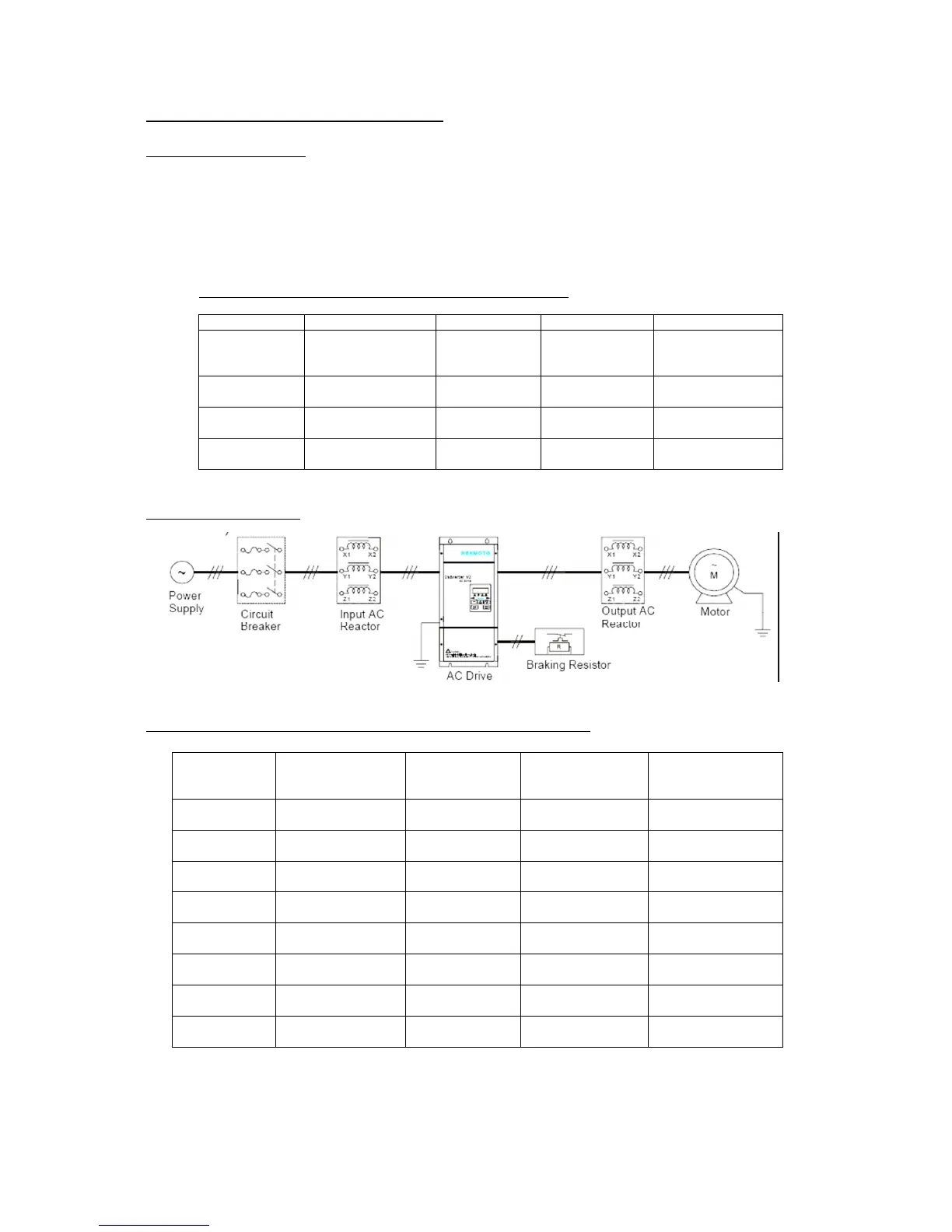

Recommended Cable type and termination
Control Cable wiring details
Tool: Screw driver blade size: 0.6 x 3.5 mm
Recommended 0.14 mm
2
to 1.5mm
2
(26 to 16 AWG)
Conductor size
Conductor strip length 6 mm ( 8 mm for twin wires for looping)
Recommended LAPPKABLE make Crimps for single wire crimp
Part Number Type For cable size AWG Core Color
61801580 AHI DIN K 0,5/6 0.5 mm2 20 White
61801620 AHI DIN K 0, 75/6 0.75 mm2 20 Grey
61801660 AHI DIN K 1/6 1 mm2 18 Red
61801700 AHI K 1, 5/6 1.5 16 Black
Power Cable wiring details
Recommended Circuit Breaker, Contactor, Power Cable and Reactor ratings
Model Type Circuit Breaker
(Amps)
Input Contactor
(Amps)
Input/ Output
Cable
(mm
2
)
AC Reactor
Type/ Current
V2 2K2 16 10 2.5 IAC5.5kW/ 14A
V2 3K7 25 16 4 IAC5.5kW/ 14A
V2 5K5 25 16 4 IAC5.5kW/ 14A
V2 7K5 40 25 6 IAC7.5kW/ 22A
V2 11K 63 32 6 IAC22KW/ 57A
V2 15K 63 50 6 IAC22KW/ 57A
V2 18K5 100 63 10 IAC22KW/ 57A
V2 22K 100 80 16 IAC22KW/ 57A
