HIAB EFFER 35 - Buttons, Selectors and Leds

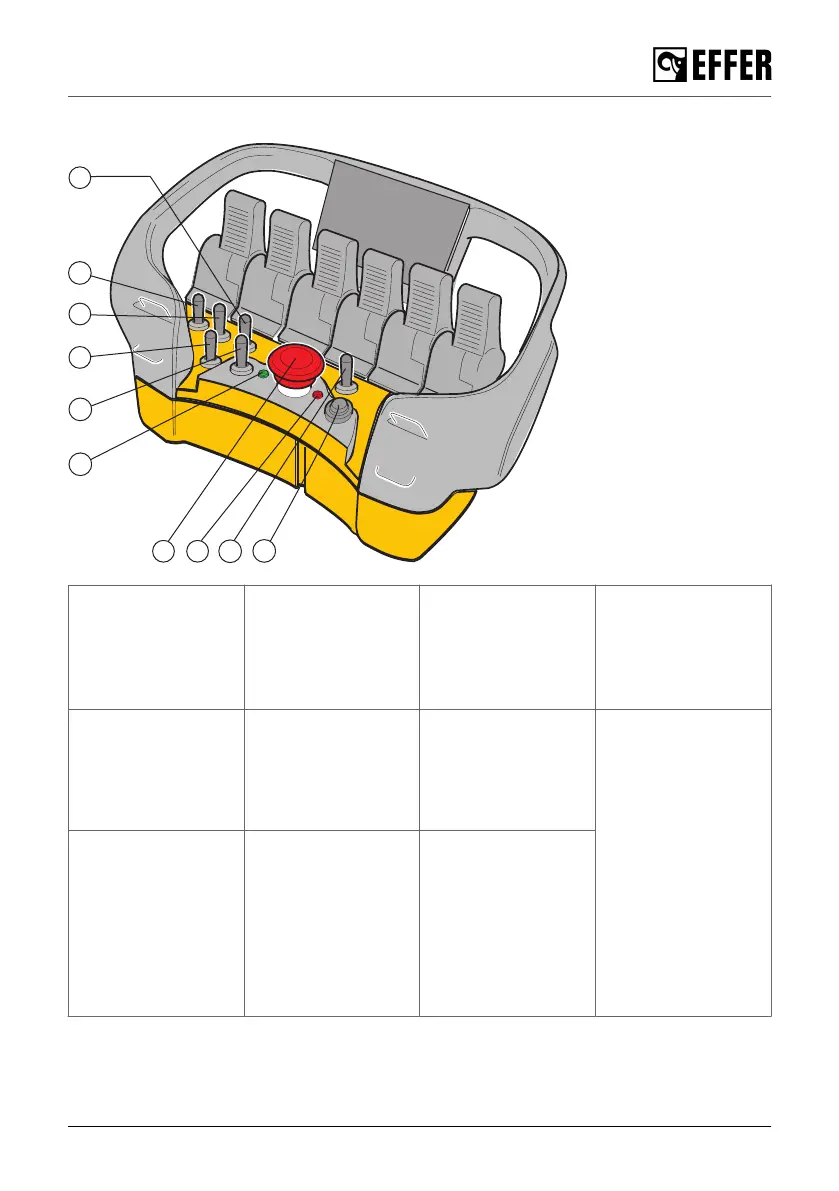

4.6.1. Buttons, selectors and LEDs
7
8
9
10
5
4
1 3
2
6
(1) Emergency
stop button
(4) LED for radio
connection:
• Flashing: the
transmission is
bad.
(7) Auto Rpm
ON/OFF
(10) Not in use
(2) Button:
• Activate the
controller.
• Horn
(5) Speed
adjustment:
• 5 positions based
on preset values.
(8) Truck engine
ON-OFF
Truck engine ON
Truck engine OFF
(3) LED for battery
status:
• On: remote on
and the battery is
charged.
• Flashing: the
battery must be
replaced.
(6) Operation
selector mode:
• Left: CRANE
mode (CRANE)
• Right:
STABILISER
SYSTEM mode
(STAB)
(9) Truck engine
Rpm
Rpm increase
Rpm decrease
The Operating system
EFFER 35 47
