NOTE

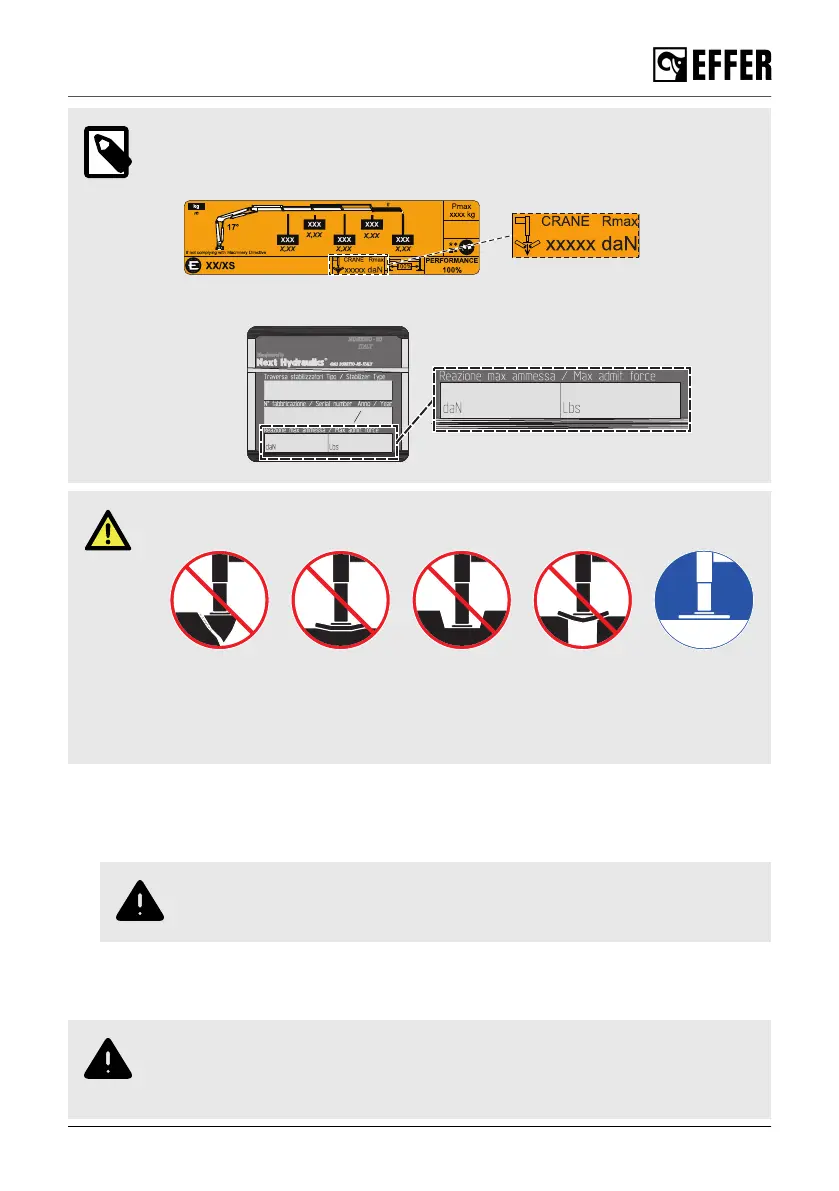

• The load plate shows the maximum force that the stabiliser legs can apply to the
ground.
• There is a plate on the auxiliary stabiliser legs which shows the maximum force
that the stabiliser legs can apply to the ground.
DANGER
Verify that the extra support plates do not bend or sink into the ground.
Do not lower the stabiliser legs on the edge of an embankment, soft ground,
hollows, etc… Lower the stabiliser legs only onto a flat, firm, and stable surface.
5.2.2. Activate the stabiliser system
1. Move to the side of the crane where you want to start the operation.
2. Make sure that you have full view of the stabiliser system.
WARNING
• You must always have a clear view of the stabiliser system when operating.
3. Activate the related lever.
5.2.3. Extend the stabiliser extensions
WARNING
Do not extend/retract the extensions by holding the hydraulic hose. Risk of
damage or personal injuries.
Starting crane operation
EFFER 35 55
To Next Page
