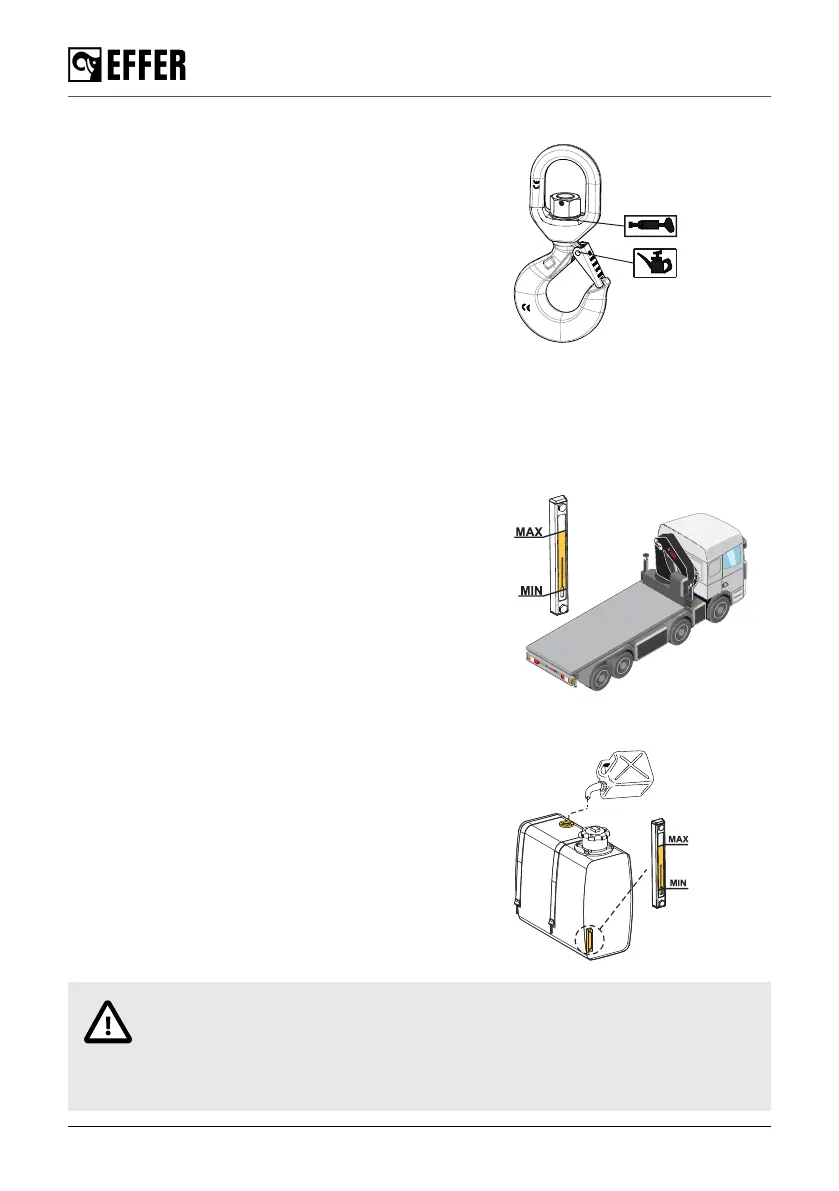

Hooks with swivel
1. Lubricate with oil the spring of the latch.
2. If the hooks cannot rotate easily with load, grease the
swivel bearing.
Use a bearing grease, type "Texaco Multifak EP 2" or
equivalent quality.
8.5. Checking and topping up oil levels
8.5.1. Oil tank / Hydraulic oil
Checking of the oil level of the tank
1. Place the crane and stabiliser legs in the transport
position.
2. Place the vehicle on level ground.
3. Check the oil level in the tank.
4. If the oil level is too low, top up with hydraulic oil.
Oil filling / Top up
1. Make sure that the required equipment to fill the tank is
fully clean.
2. Put the crane in the parked position.
3. Clean the area around the oil filler cap.
4. Fill with oil up to the max level indicator.
CAUTION
• Never fill the tank completely, because during operation the volume of the oil
could expand as the temperature increases.
• Never use recycled oil!
Maintenance and Service
84 EFFER 35
