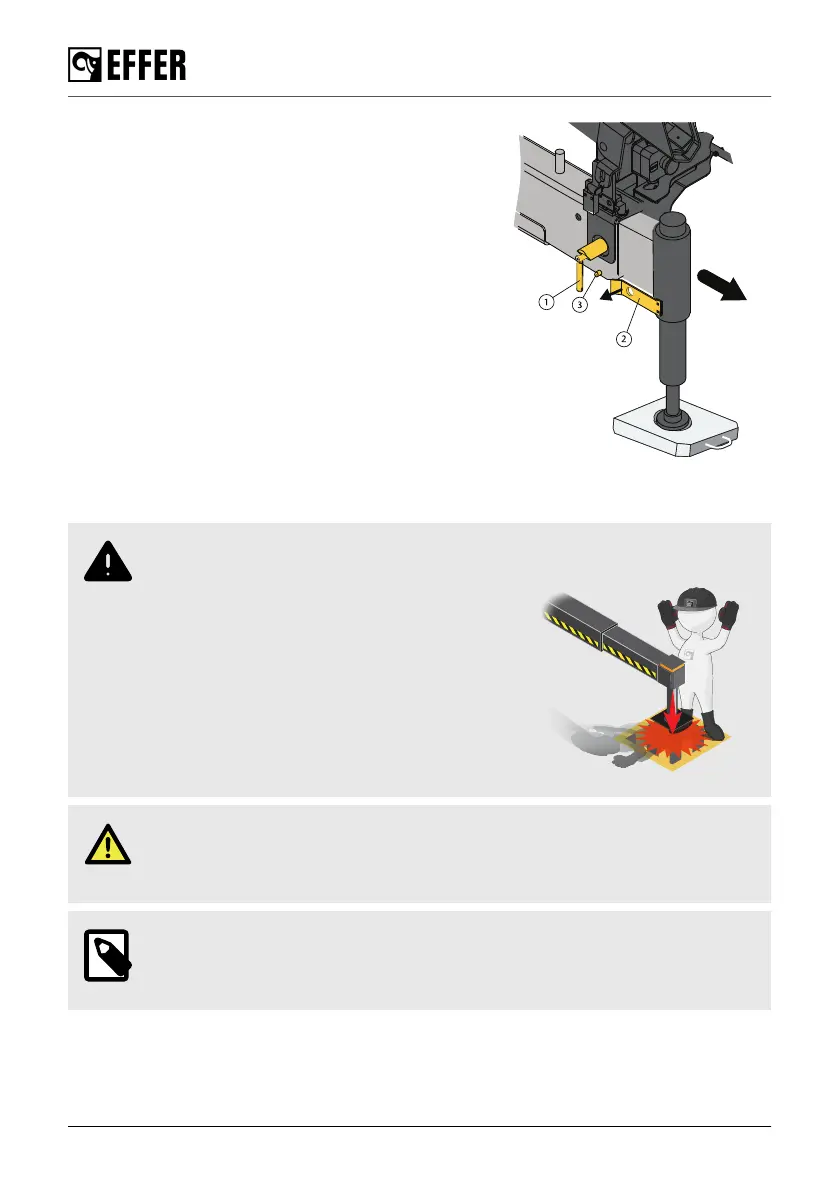

1. Only for remote-controlled cranes: Turn the
CRANE/STAB selector on the controller [option] to
STAB
2. Turn the locking device (1) 180° pointing upwards
3. Pull the locking device (2) free from the pin (3)
4. Manually extend the stabiliser extension about 20 cm
5. Turn the locking device (1) 180° pointing downwards
6. Manually extend the stabiliser extension until you see
the coloured strip and the locking device (1) lock the
extension.
7. Make sure that the stabiliser extension are fully
extended and locked.
Repeat the instructions for the stabiliser extension(s) on the
other side of the vehicle.
The procedure of setting the auxiliary [option] stabiliser
extensions differs depending on the type of stabiliser
extensions.
5.2.4. Set the stabiliser legs
WARNING
Take care not to lower the stabiliser leg onto
your foot.
DANGER
Always ensure that the stabiliser legs and stabiliser extensions are in working
position and securely locked.
NOTE
At the end of the operation, do a check of the levelling of the vehicle with the spirit
level. If necessary, adjust the stabiliser system.
Starting crane operation
56 EFFER 35
