To retract the manual extensions:
1. Put the boom system as close as possible to the horizontal position, but low enough to reach
the extension by hand or with the lifting device.
2. Push the stop emergency button to stop the crane.
3. Remove the locking pins and the locking shafts (A).
4. Fully retract the manual extension by hand.
5. Secure the manual extension by locking the locking pins and the locking shafts (A).
DANGER
Make sure that the locking devices are properly locked.

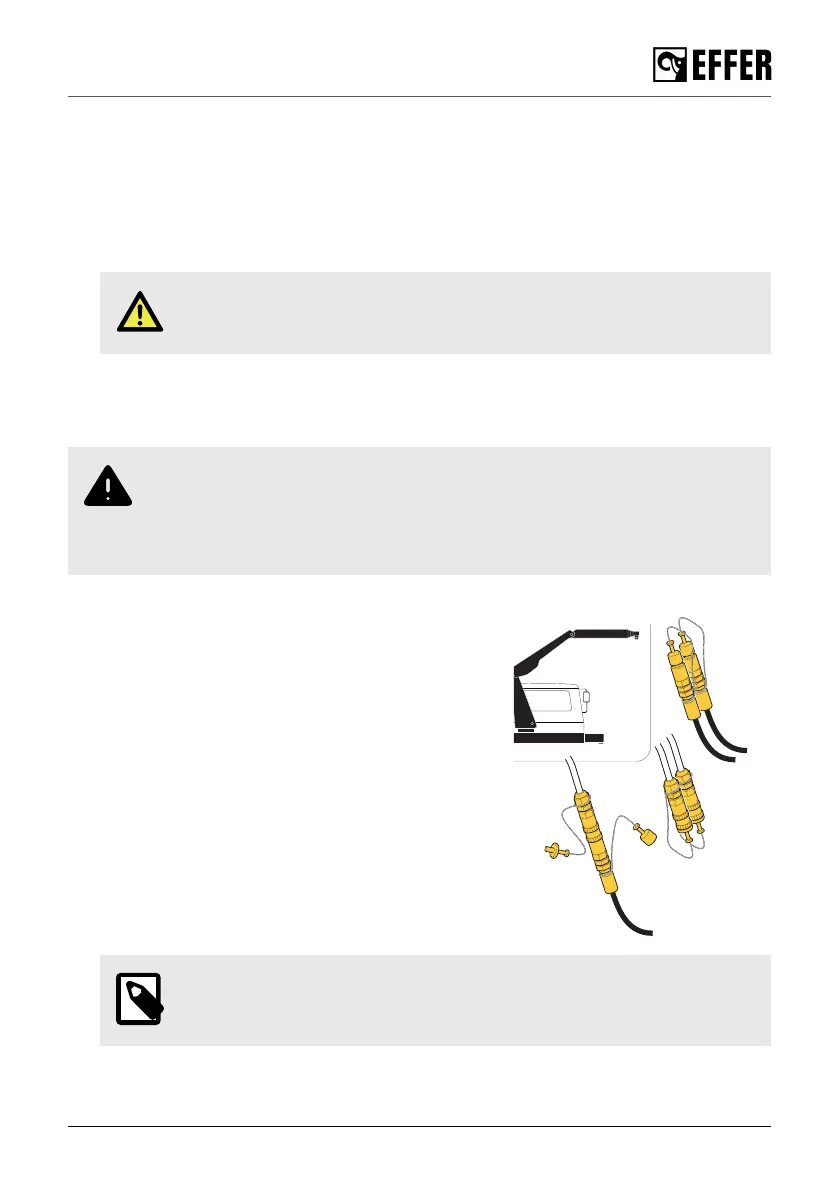

6.5. Hydraulic couplings [option]
Hydraulic couplings allow a faster connection and disconnection of each hydraulic line.
WARNING
• Push the emergency stop button and switch off the PTO before connecting or
disconnecting the connectors.
• Keep the hydraulic protection caps in good condition.
To connect the hydraulic couplings you must:
1. Push the emergency stop button.
2. Disengage the PTO.
3. Connect the respective hydraulic couplings taking care
with the corresponding identification.
NOTE
To prevent damage, do not change the hydraulic couplings position.
4. Reconnect the PTO and switch on the system, if needed.
5. Do a functional test of all movements of the accessories to verify that there are no mistakes in
the connections.
During operation
EFFER 35 63
