HIAB EFFER 35 - Grease on the Stabiliser Extensions; Lubrication of the Hooks

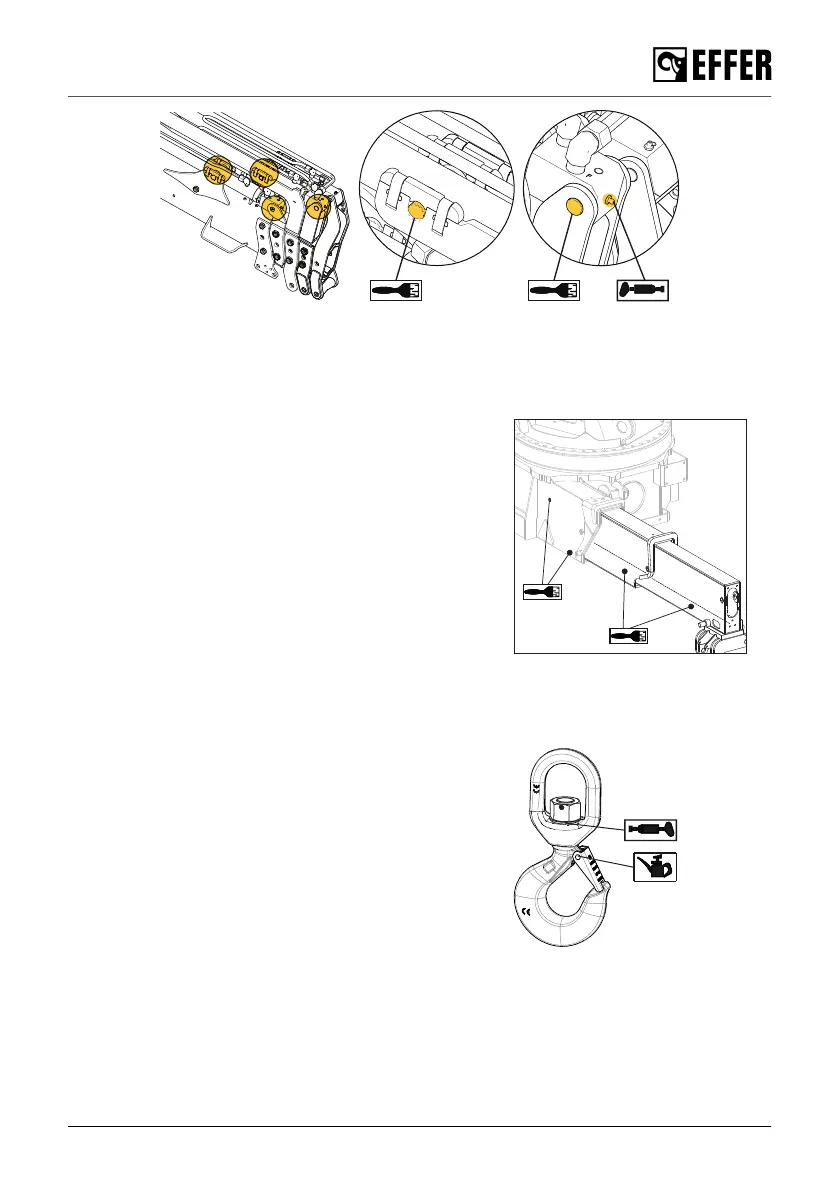

• Grease all points where the extension cylinders touch the supports.
• Grease the supports and locking pins located on the rod of the extension cylinder.
8.4.5. Grease on the stabiliser extensions
Grease the lower sliding surfaces on the stabiliser
extensions.
When accessible, grease inside the stabiliser beam in the
upper and lower sliding surfaces.
8.4.6. Lubrication of the hooks
Hooks with plane bearing
1. Lubricate with oil the spring of the latch.
2. If the hook cannot rotate easily without load, grease the
plane bearing surfaces.
Use a heavy duty penetrating spray grease, type "ZEP
2000" or equivalent quality.
Maintenance and Service
EFFER 35 83
