The procedure of operating the auxiliary [option] stabiliser legs differs depending on the type of
stabiliser leg. Repeat the instructions for the stabiliser extension and leg on the other side of the
vehicle.
DANGER
Always ensure that the stabiliser legs and the stabiliser extensions are in transport
position and securely locked before moving the vehicle.

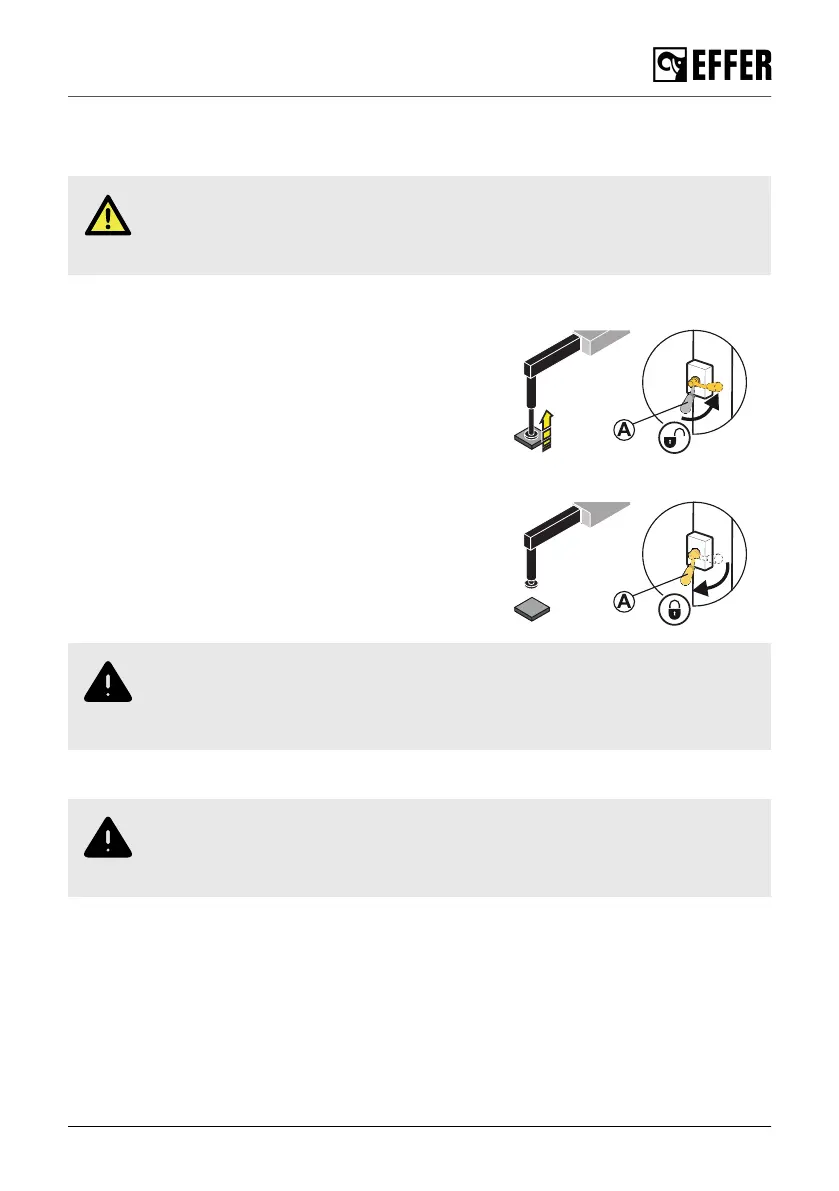

Stabiliser legs
1. Only for remote-controlled cranes: Turn to selector
CRANE/STAB to STAB on the controller (option)
2. Turn the lever (A) horizontally.
3. Fully retract the stabiliser leg
4. Move the lever (A) to the vertical position
5. Remove the extra support plate.
Repeat the instructions for the stabiliser leg(s) on the other
side of the vehicle.
The procedure of closing the auxiliary [option] stabiliser
legs differs depending on the type of stabiliser legs.
WARNING
Risk of crushing injuries.
Always keep hands away from moving parts during operation.
Retract the stabiliser extensions
WARNING
Do not extend/retract the extensions by holding the hydraulic hose. Risk of
damage or personal injuries.
Ending crane operation
EFFER 35 67
