Thermal Image Scope User Manual
4
Chapter 2 Preparation
2.1 Cable Connection
Connect the device and power adaptor with a type-C cable to power on the device. Alternatively,
connect the device and PC to export files.

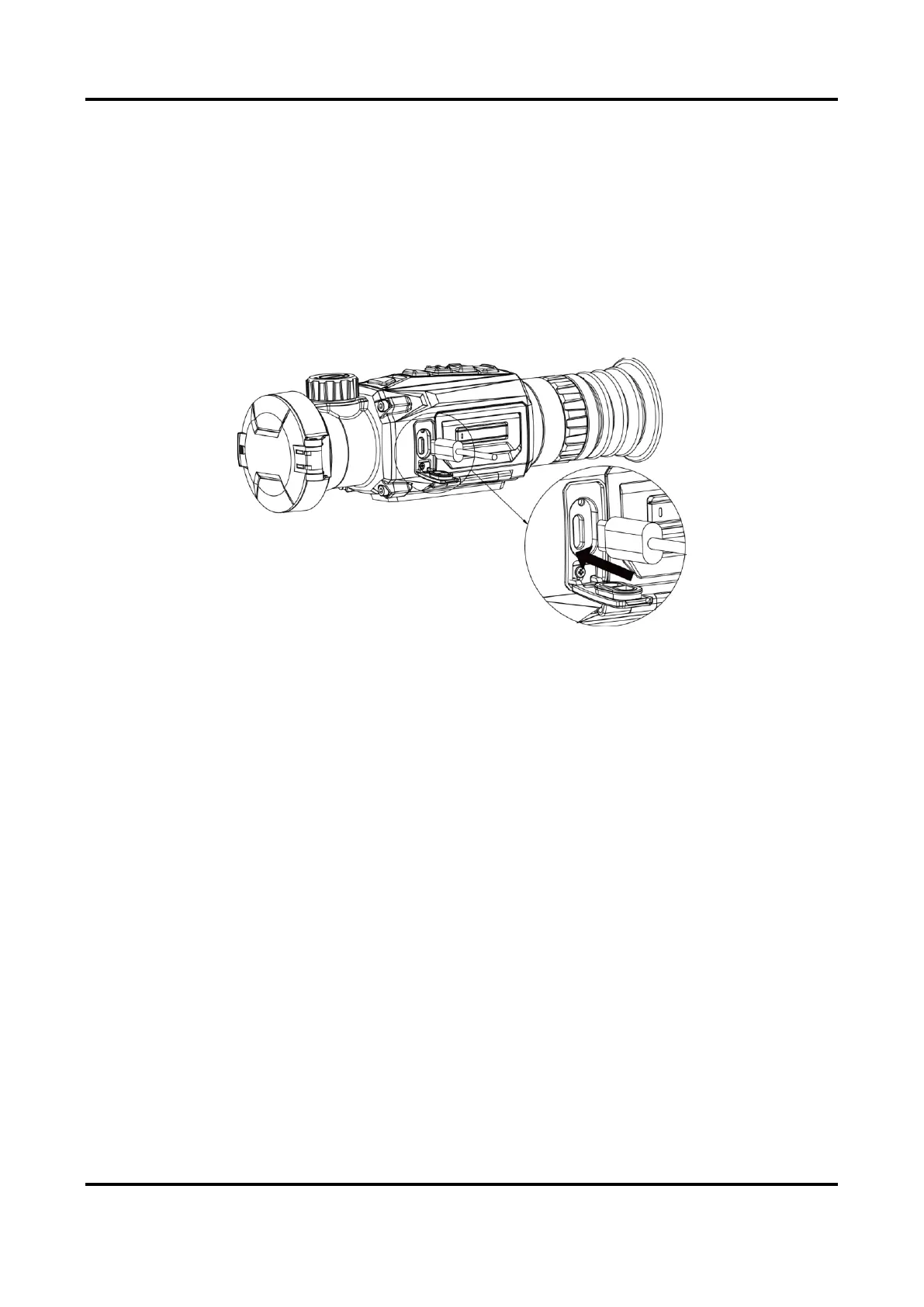

Figure 2-1 Cable Connection
2.2 Install Battery
2.2.1 Battery Instruction
● The device supports removable li-ion battery. The charging limited voltage of the battery is 4.2
V. The Battery capacity is 3.6 V/4.4 Ah (15.84 Wh).
● Charge the battery for more than 4 hours before first use.
● Please purchase the batteries recommended by the manufacturer if necessary.
● Remove the battery if the device is not used for a long time.
2.2.2 Change Battery
Insert the battery into and remove it from the battery compartment.
Before You Start
Make sure to power off the device before removing the battery.
Steps
1. Lift the battery compartment cover handle, and pull the battery compartment cover outwards.
To Next Page
