User Manual of All-in-One Network Video Recorder
103
9.2 Setting Sensor Alarms
Purpose:
Set the handling action of an external sensor alarm.
Steps:
1. Enter Alarm Settings of System Configuration and select an alarm input.
Menu > Configuration > Alarm

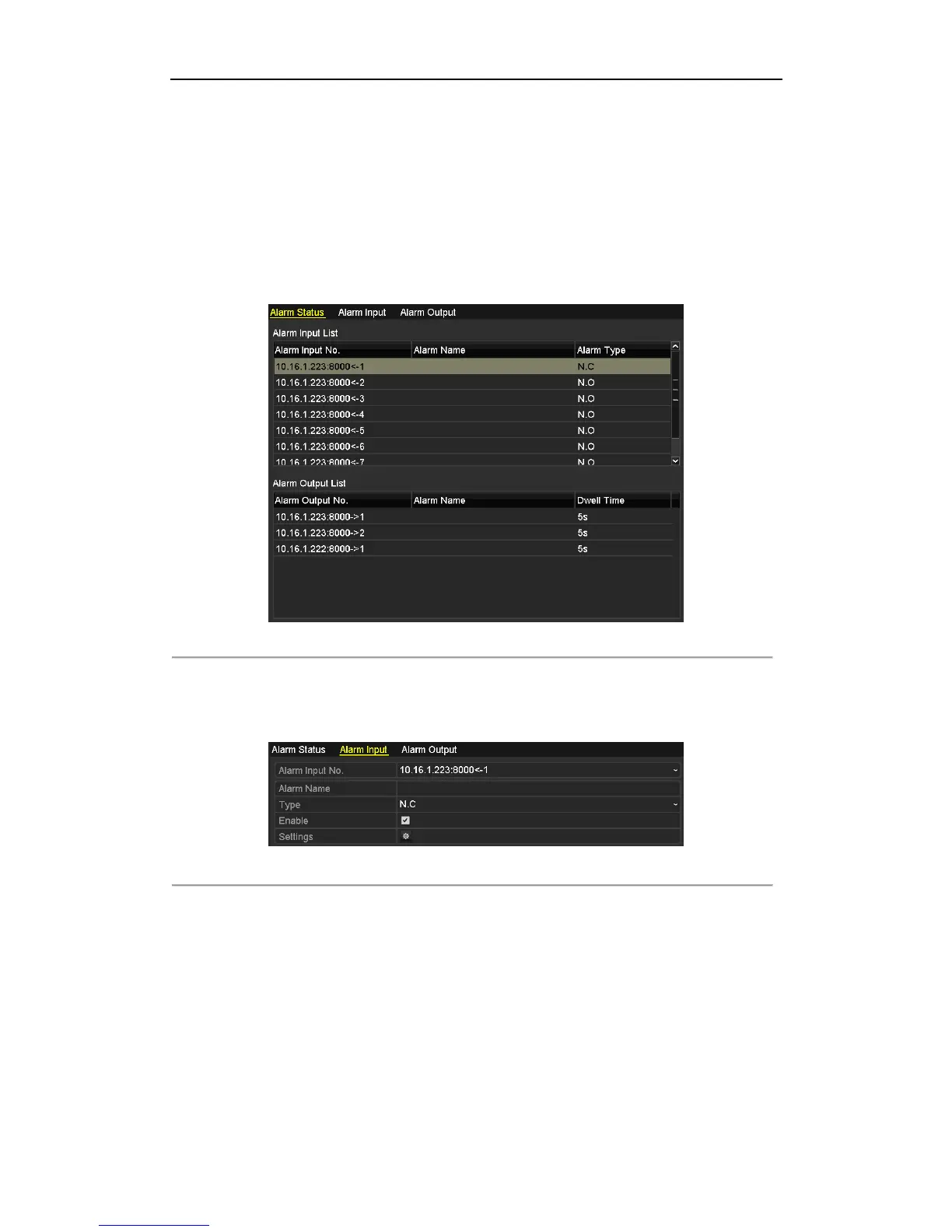

Figure 9. 4 Alarm Status Interface of System Configuration
2. Select Alarm Input tab to enter Alarm Input Settings interface.
3. Set up the handling action of the selected alarm input.
Check the Enable checkbox and click Settings button to set up its alarm response actions.
Figure 9. 5 Alarm Input Setup Interface
4. Select Trigger Channel tab and select one or more channels which will start to record or become full-screen
monitoring when an external alarm is input, and click Apply to save the settings.
5. Select Arming Schedule tab to set the arming schedule of handling actions.
To Next Page
