1.5 Rear View

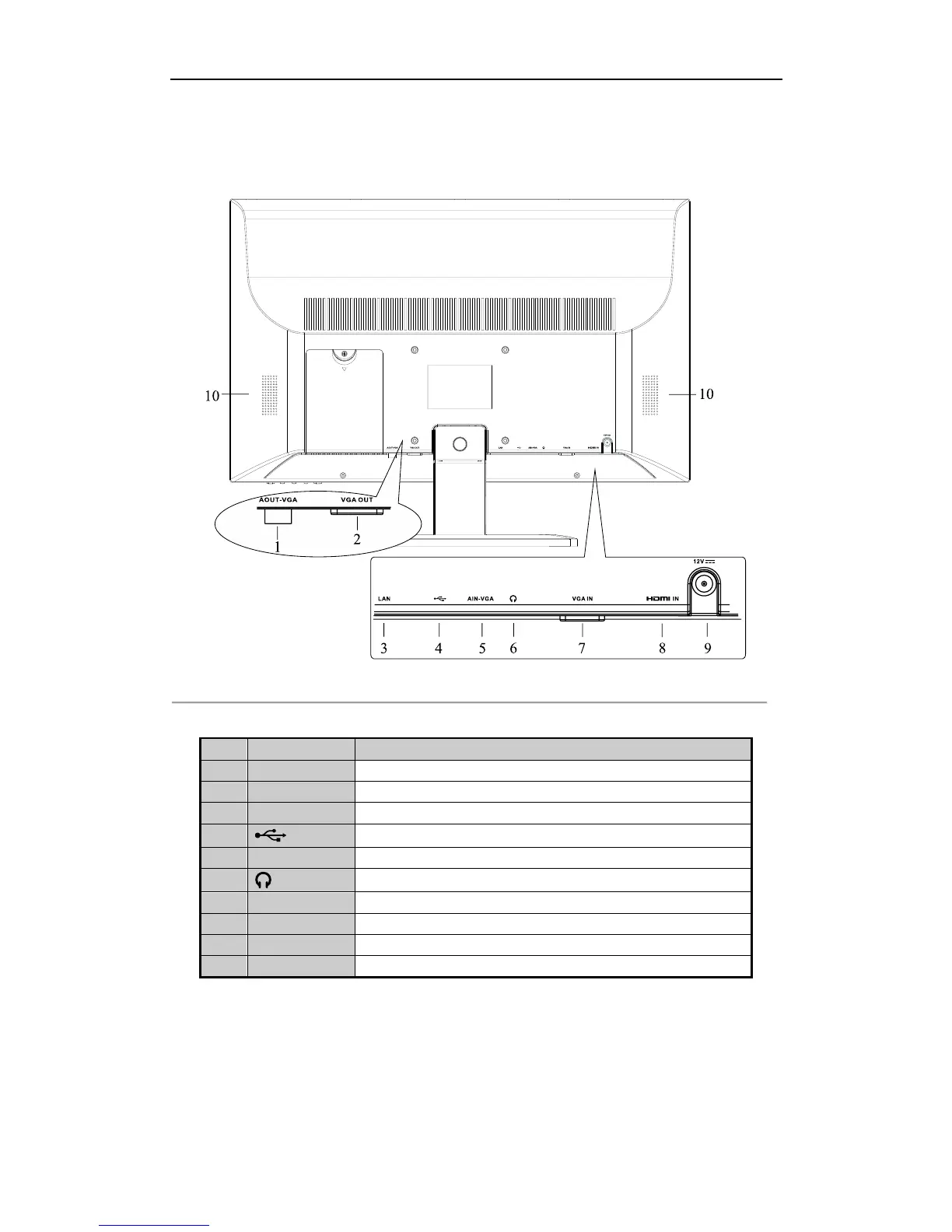

Figure 1. 5 Rear View
Table 1. 6 Description of Interfaces
No.
Name
Description
1
AOUT-VGA
Audio output interface for NVR VGA signal.
2
VGA OUT
Video output interface for NVR VGA signal.
3
LAN
Network interface.
4
Universal Serial Bus (USB) interface for external USB device.
5
AIN-VGA
Audio input interface for NVR VGA signal.
6
MIC interface for audio output.
7
VGA IN
Video input for VGA input.
8
HDMI IN
Video input for HDMI input.
9
12V
12V Power supply.
10
Loudspeaker
Loudspeaker for audio output.
