User Manual of All-in-One Network Video Recorder
147

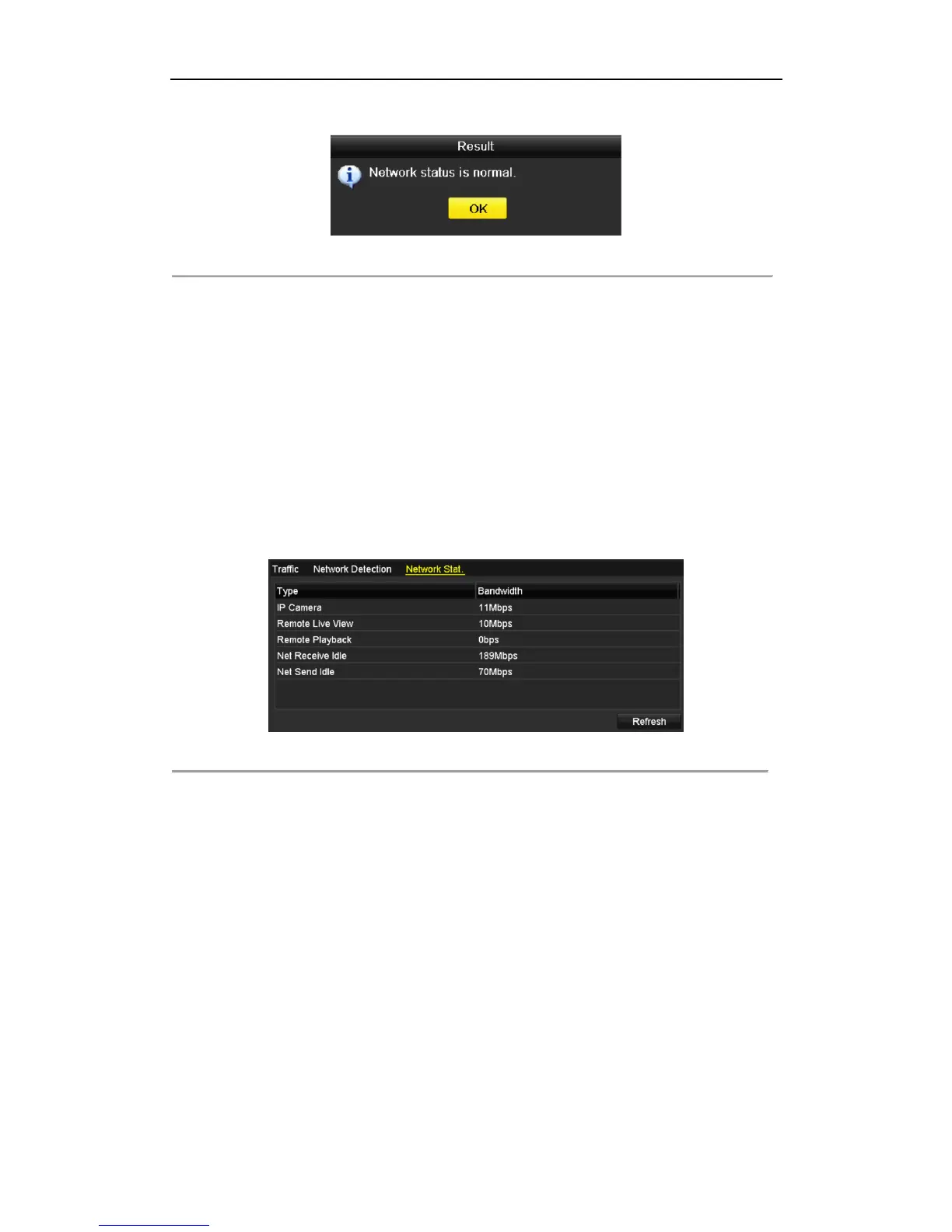

If the network is normal the following message box pops out.
Figure 12. 34 Network status checking result
If the message box pops out with other information instead of this one, you can click Network button to
show the quick setting interface of the network parameters.
12.4.4 Checking Network Statistics
Purpose:
You can check the network status to obtain the real-time information of NVR.
Steps:
1. Enter the Network Detection interface.
Menu > Maintenance > Net Detect
2. Choose the Network Stat. tab.
Figure 12. 35 Network Stat. Interface
3. Check the bandwidth of IP Camera, bandwidth of Remote Live View, bandwidth of Remote Playback,
bandwidth of Net Receive Idle and bandwidth of Net Send Idle.
4. You can click Refresh to get the newest status.
