HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
265

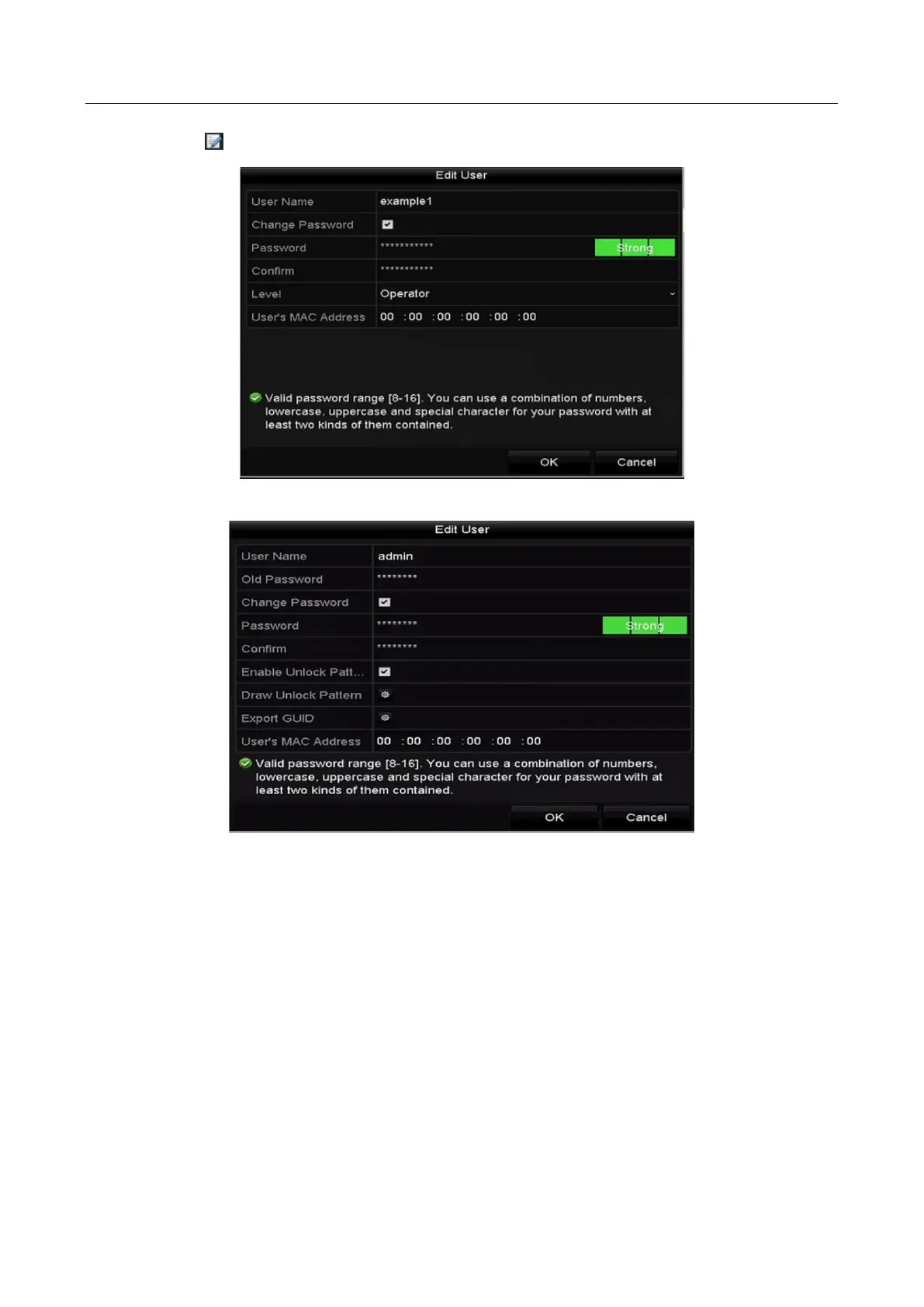

Step 3 Click the icon to enter the Edit User interface, as shown in Figure 17-12.
Figure 17-11 Edit User (Operator/Guest)
Figure 17-12 Edit User (admin)
Step 4 Edit the password for the user
• Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
• Admin
You are only allowed to edit the password and MAC address. Check the checkbox of
Change Password if you want to change the password, and the input the correct old
password, and the new password in the text field of Password and Confirm.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
