HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
29
Step 4 Press the DEV button.
Step 5 Use the Number buttons to enter the Device ID# that was entered into the NVR.
Step 6 Press Enter button to accept the new Device ID#.

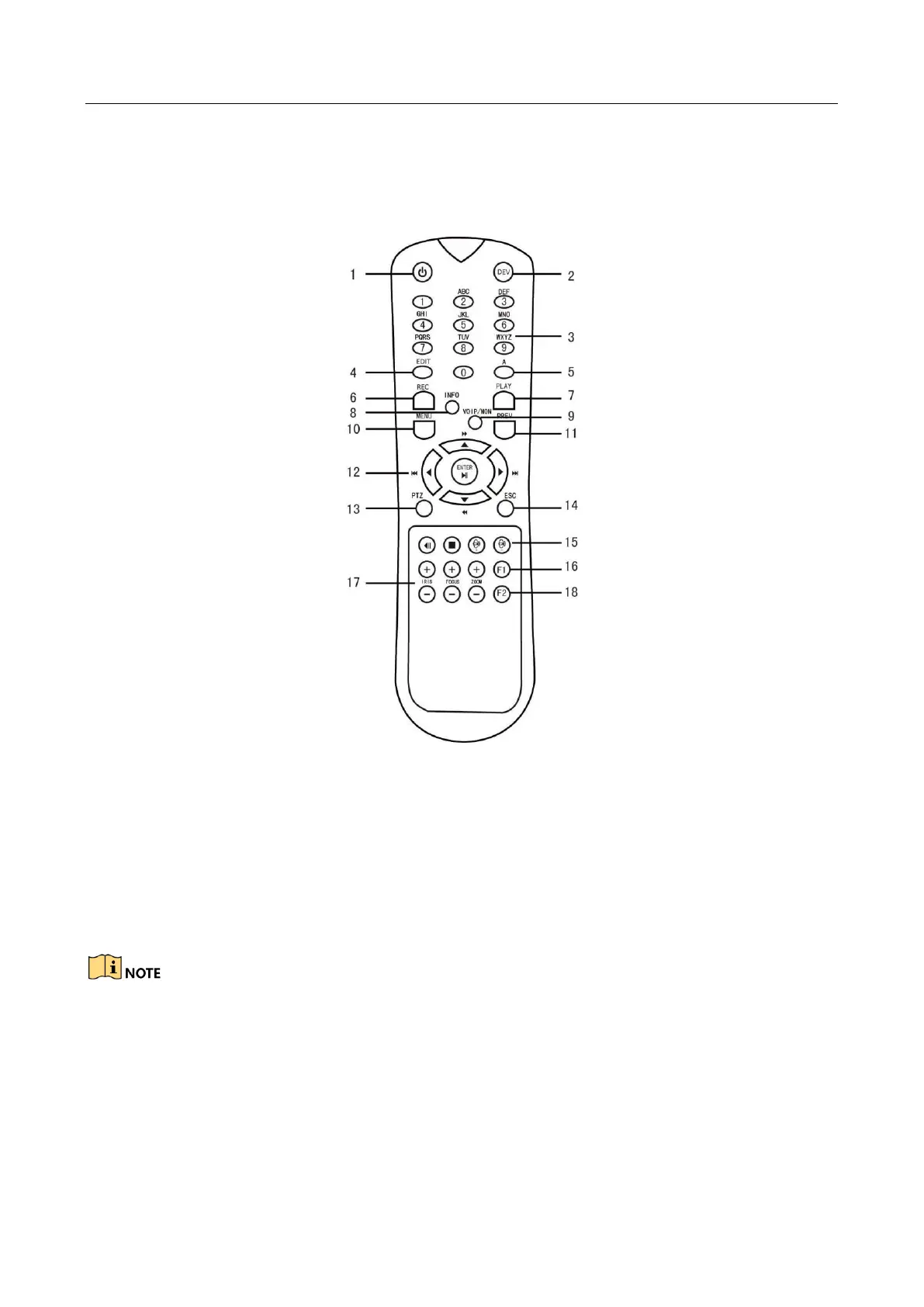

Figure 1-7 Remote Control
Unpairing (Disabling) an IR Remote from a NVR
To unpair an IR Remote from a NVR so that the unit cannot control any NVR functions, proceed as
follows:
Press the DEV key on the IR Remote. Any existing Device ID# will be erased from the unit’s memory
and it will no longer function with the NVR.
(Re)-enabling the IR Remote requires pairing to a NVR. See “Pairing the IR Remote to a Specific
NVR (optional),” above.
The keys on the remote control closely resemble the ones on the front panel. See the table 1.4.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
