HIKVISION DS-7716NI-K4/16P User Manual

Network Video Recorder User Manual
115

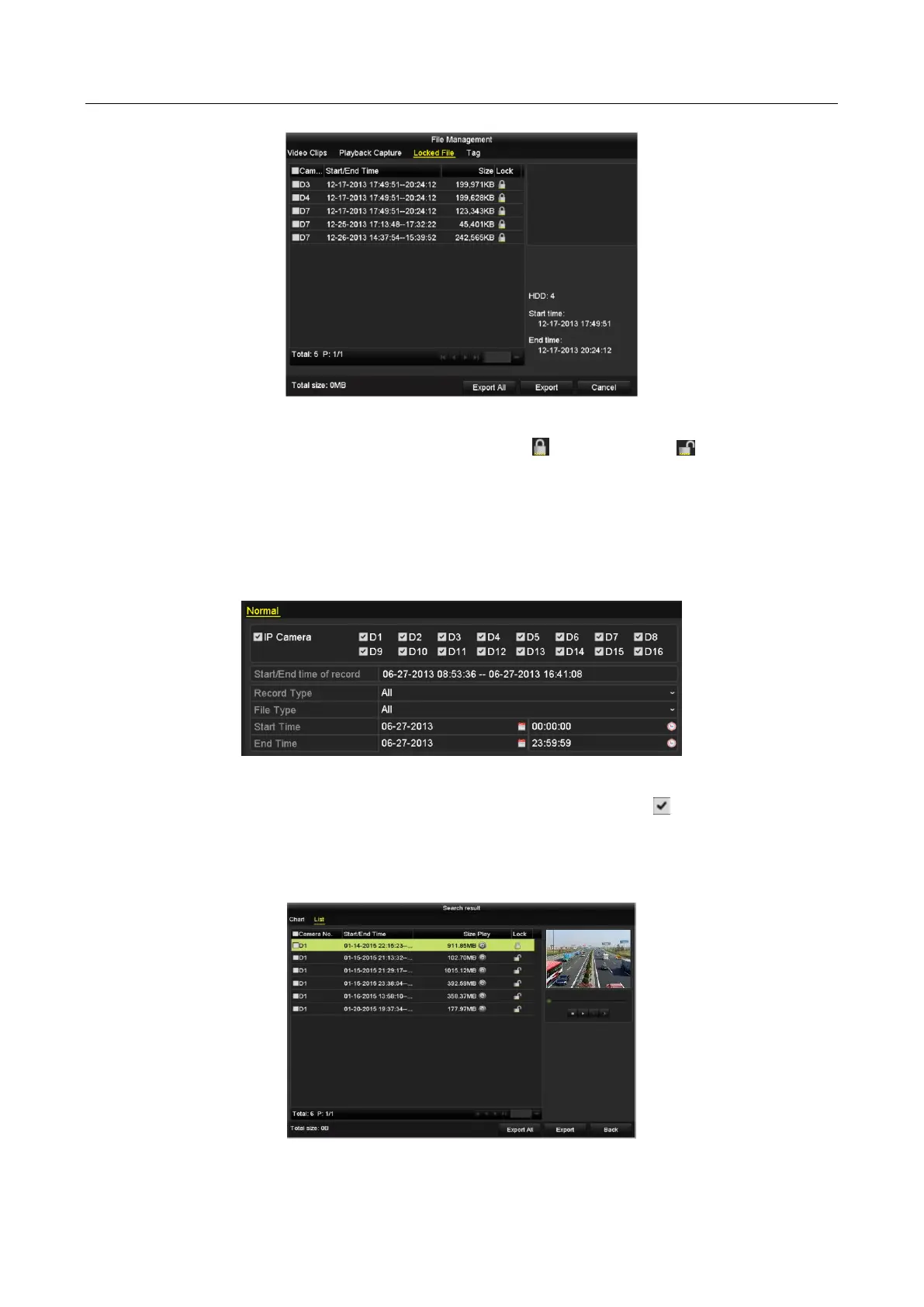

Figure 5-30 Locked File Management
In the File Management interface, you can also click to change it to to unlock the file
and the file is not protected.
 Lock File when Export
Step 1 Enter Export setting interface.
Menu> Export
Figure 5-31 Export
Step 2 Select the channels you want to search by checking the checkbox to .
Step 3 Configure the record type, file type start/end time.
Step 4 Click Search to show the results.
Figure 5-32 Export- Search Result

HIKVISION DS-7716NI-K4/16P Specifications

General

Input bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
