Network Video Recorder User Manual
118
Chapter 6 Playback
6.1 Playing Back Record Files
6.1.1 Instant Playback
Purpose
Play back the recorded video files of a specific channel in the live view mode. Channel switch is
supported.
Instant playback by channel
Choose a channel in live view mode and click the button in the quick setting toolbar.
In the instant playback mode, only record files recorded during the last five minutes on this
channel will be played back.

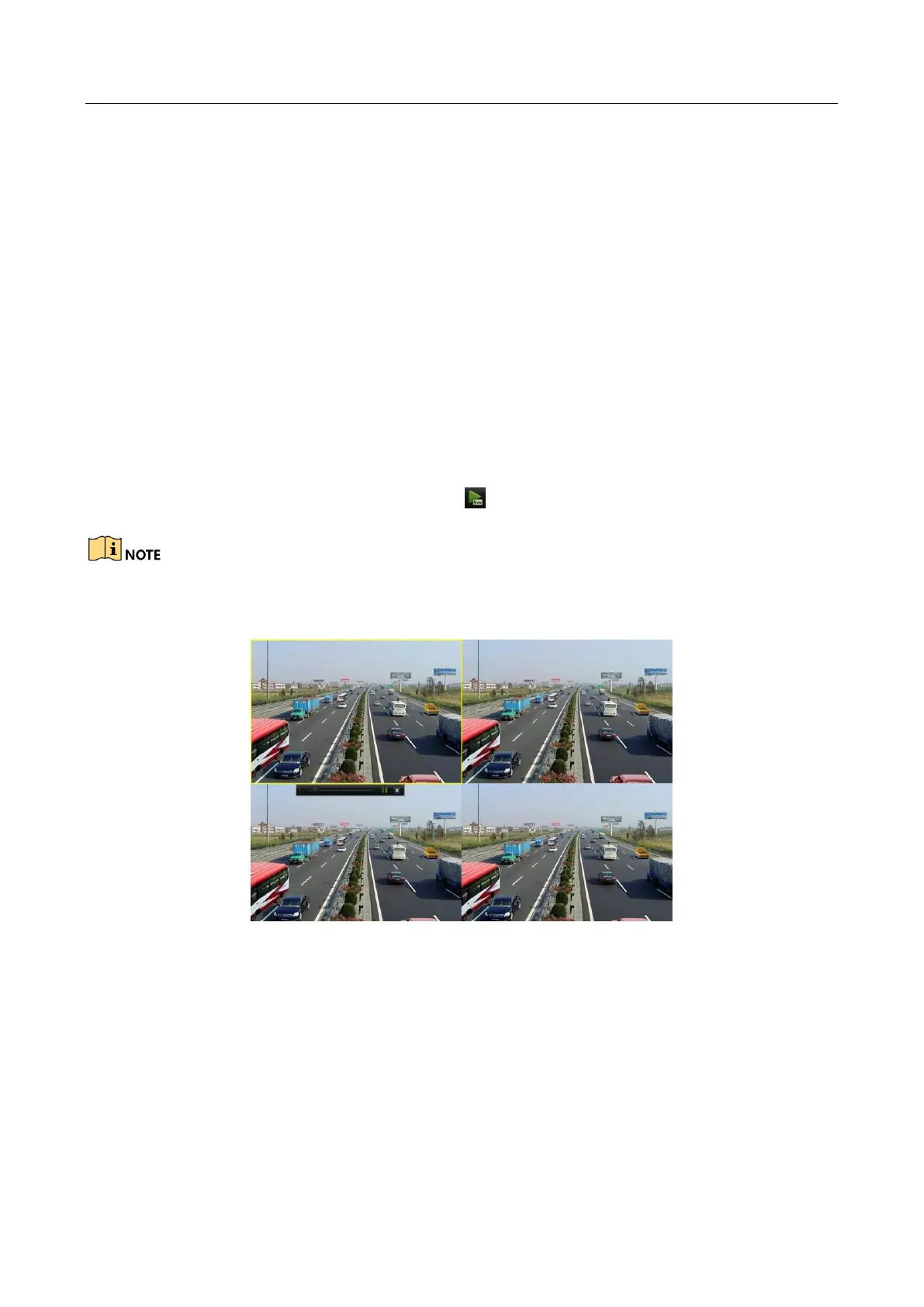

Figure 6-1 Instant Playback Interface
6.1.2 Playing Back by Normal Search
Playback by Channel
Enter the Playback interface.
Right click a channel in live view mode and select Playback from the menu, as shown in Figure 6-2.

Table of Contents

Other manuals for HIKVISION DS-7716NI-K4/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7716NI-K4/16P and is the answer not in the manual?

HIKVISION DS-7716NI-K4/16P Specifications

General IconGeneral
Input bandwidth160 Mbit/s
Maximum resolution4096 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
HDD capacity- GB
HDD interfaceSATA
Maximum storage capacity8 TB
Number of HDDs installed0
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)20 W
Total Power over Ethernet (PoE) budget200 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
CertificationFCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product colorBlack
Wi-FiNo
Weight and Dimensions IconWeight and Dimensions
Depth400 mm
Width445 mm
Height75 mm
Weight5000 g
