Network Video Recorder User Manual
50

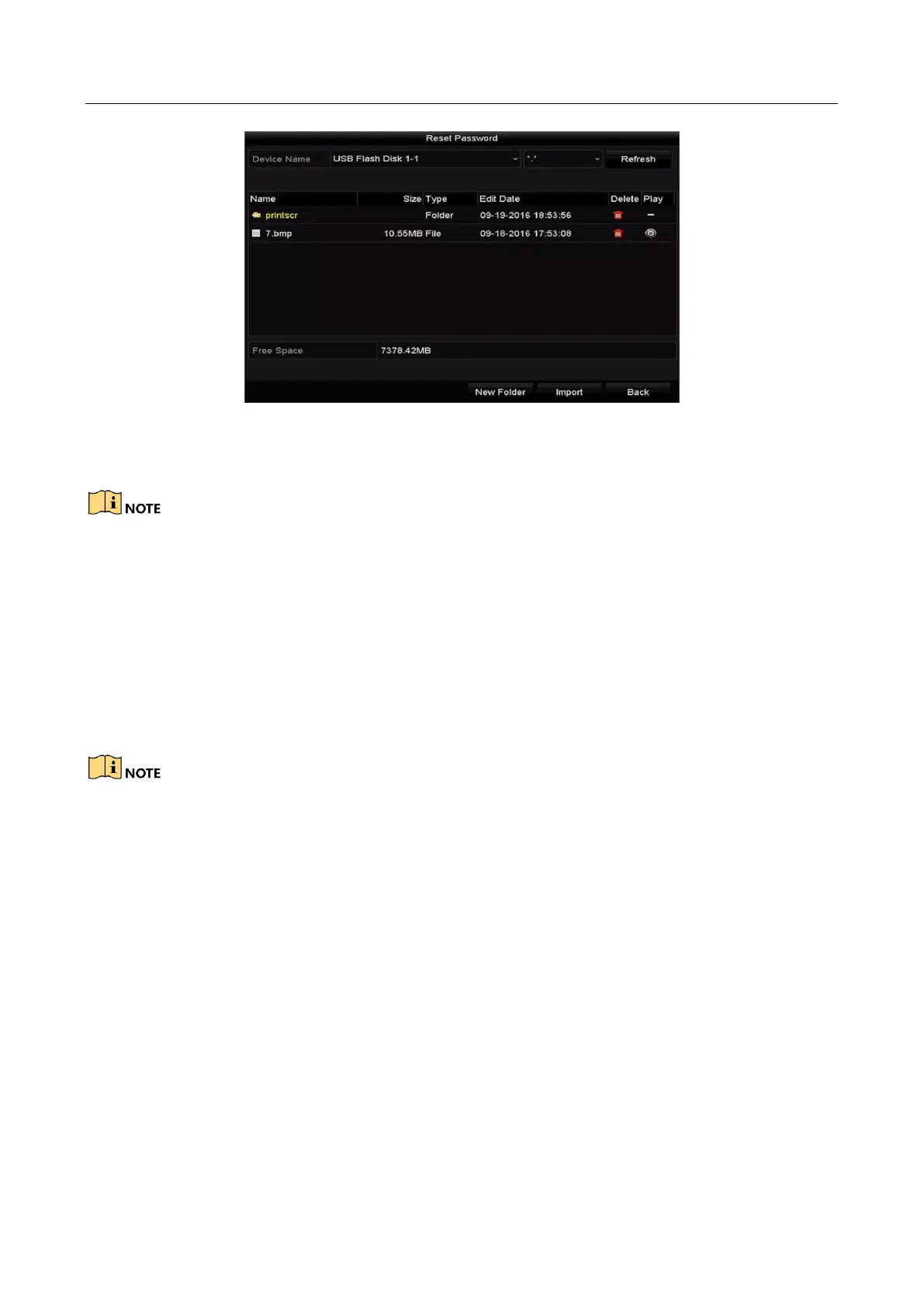

Figure 2-14 Reset Password
Step 2 Select the GUID file from the U flash disk and click Import to import the file to the device.
If you have imported the wrong GUIE file for 7 times, you will be not allowed to reset the password
for 30 minutes.
Step 3 After the GUID file is successfully imported, enter the reset password interface to set the
new admin password. Refer to Chapter 2.1.2 Activating Your Device for details.
Step 4 Click OK to set the new password. You can export the new GUID file to the U flash disk for
future password resetting.
When the new password is set, the original GUID file will be invalid. The new GUID file should be
exported for future password resetting. You can also enter the User>User Management interface to
edit the admin user and export the GUID file.
2.2 Using Wizard for Basic Configuration
By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure 2-15.

Table of Contents

Other manuals for HIKVISION DS-7716NI-K4/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7716NI-K4/16P and is the answer not in the manual?

HIKVISION DS-7716NI-K4/16P Specifications

General IconGeneral
Input bandwidth160 Mbit/s
Maximum resolution4096 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
HDD capacity- GB
HDD interfaceSATA
Maximum storage capacity8 TB
Number of HDDs installed0
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)20 W
Total Power over Ethernet (PoE) budget200 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
CertificationFCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product colorBlack
Wi-FiNo
Weight and Dimensions IconWeight and Dimensions
Depth400 mm
Width445 mm
Height75 mm
Weight5000 g
