PTZ
Enter the PTZ control interface.
Output Mode
Four modes of output supported, including Standard, Bright,
Gentle and Vivid.
Aux Monitor
Switch to the auxiliary output mode and the operation for
the main output is disabled.

The dwell time of the live view configuration must be set before using Start Auto-switch.

If you enter Aux monitor mode and the Aux monitor is not connected, the mouse operation
is disabled; you need to switch back to the Main output with the MAIN/AUX button on the
front panel or remote.

If the corresponding camera supports intelligent function, the Reboot Intelligence option is
included when right-clicking mouse on this camera.

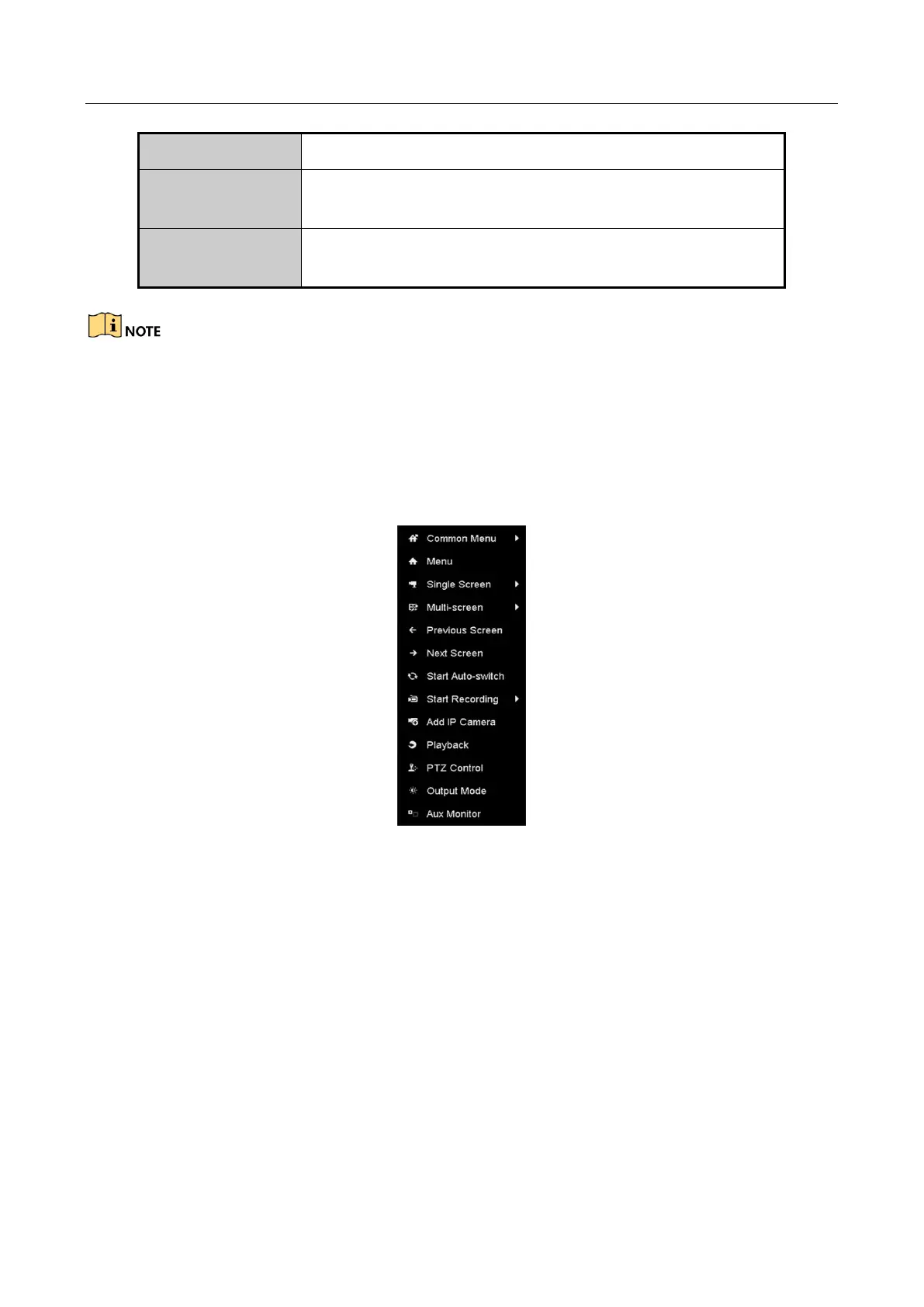

Figure 3-1 Right-click Menu
3.2.3 Using an Auxiliary Monitor
Certain features of the Live View are also available while in an Aux monitor. These features
include:
 Single Screen: Switch to a full screen display of the selected camera. Camera can be selected
from a dropdown list.
 Multi-screen: Switch between different display layout options. Layout options can be selected
from a dropdown list.
 Next Screen: When displaying less than the maximum number of cameras in Live View, clicking
this feature will switch to the next set of displays.
 Playback: Enter into Playback mode.
 PTZ Control: Enter PTZ Control mode.

HIKVISION DS-7716NI-K4/16P Specifications

General

Input bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
