Network Video Recorder User Manual
182

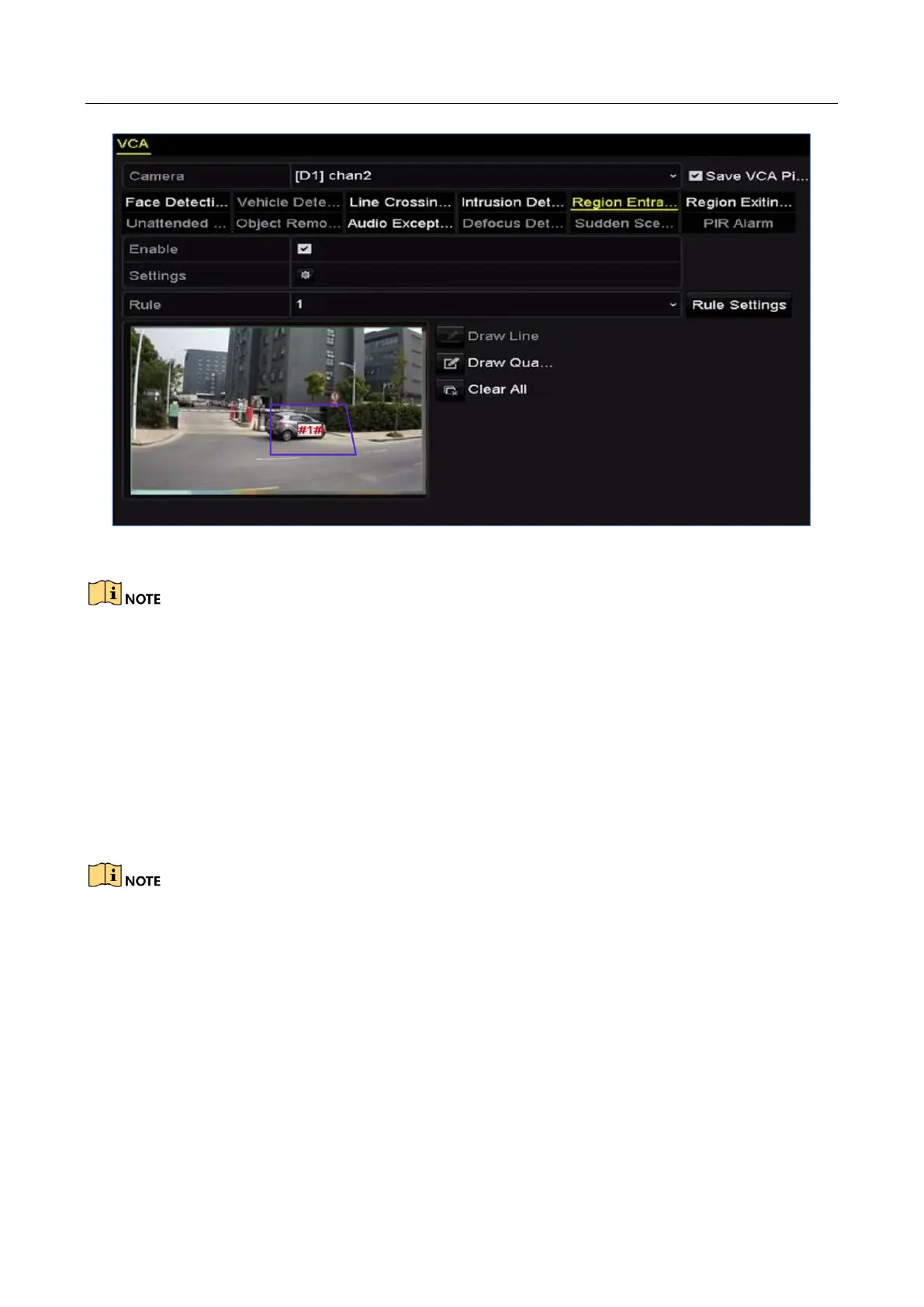

Figure 10-9 Set Region Entrance Detection
Up to 4 rules can be configured.
Step 8 Click Apply to save the settings.
10.6 Region Exiting Detection
Purpose:
Region exiting detection function detects people, vehicle or other objects which exit from a
pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.
Please refer to the Chapter 9.5 Region Entrance Detection for operating steps to configure
the region exiting detection.
Up to 4 rules can be configured.
10.7 Unattended Baggage Detection
Purpose:
Unattended baggage detection function detects the objects left over in the pre-defined region
such as the baggage, purse, dangerous materials, etc., and a series of actions can be taken when
the alarm is triggered.

Table of Contents

Other manuals for HIKVISION DS-7716NI-K4/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7716NI-K4/16P and is the answer not in the manual?

HIKVISION DS-7716NI-K4/16P Specifications

General IconGeneral
Input bandwidth160 Mbit/s
Maximum resolution4096 x 2160 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
HDD capacity- GB
HDD interfaceSATA
Maximum storage capacity8 TB
Number of HDDs installed0
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)20 W
Total Power over Ethernet (PoE) budget200 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
CertificationFCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product colorBlack
Wi-FiNo
Weight and Dimensions IconWeight and Dimensions
Depth400 mm
Width445 mm
Height75 mm
Weight5000 g
