17.4 Configuring More Settings
Step 1 Enter the General Settings interface.
Menu >Configuration>General
Step 2 Click the More Settings tab to enter the More Settings interface.

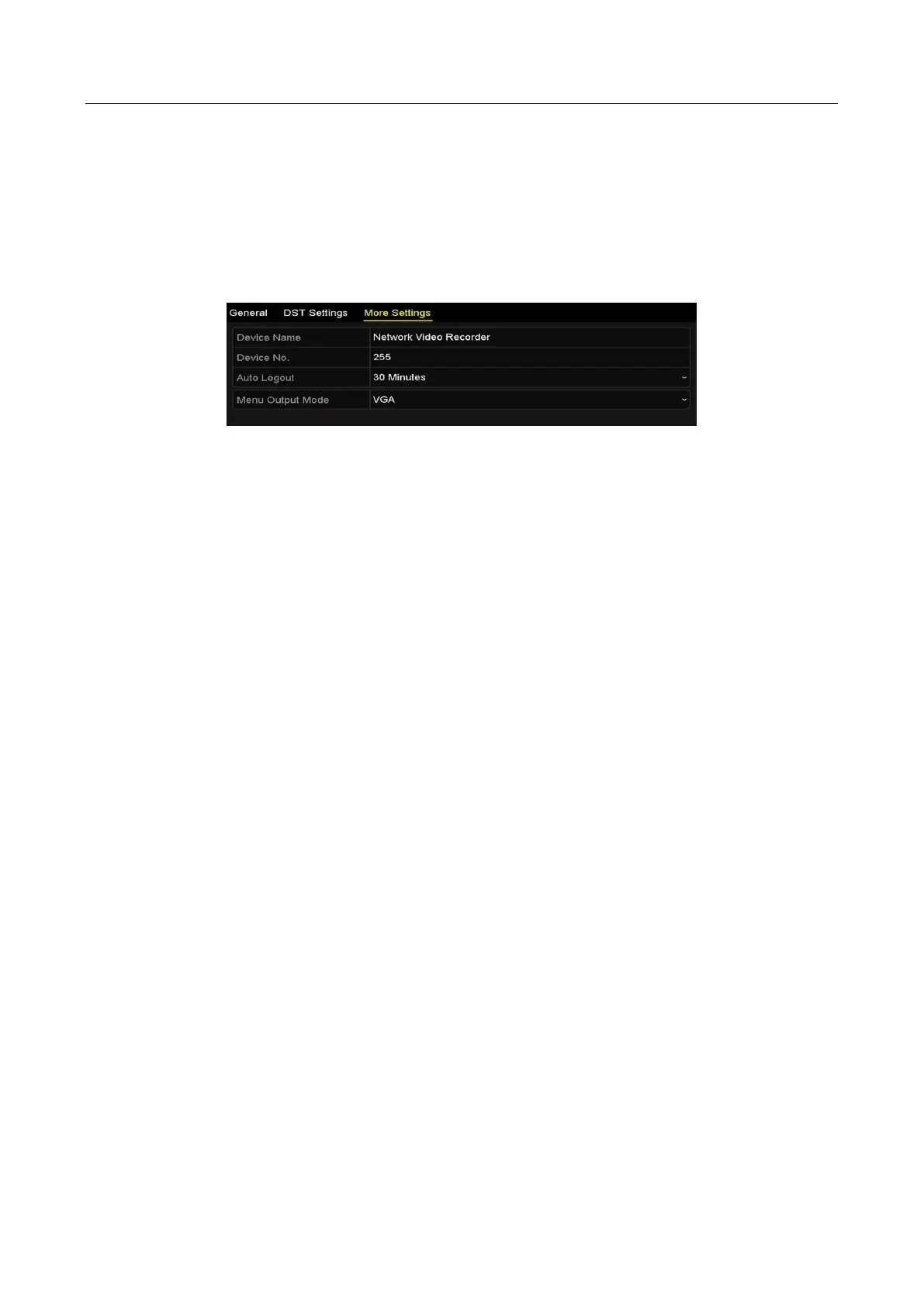

Figure 17-5 More Settings Interface
Step 3 Configure the following settings:
Device Name: Edit the name of NVR.
Device No.: Edit the serial number of NVR. The Device No. can be set in the range of 1~255,
and the default No. is 255. The number is used for the remote and keyboard control.
Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, then the system will exit from the current operation menu to live view screen after
5 minutes of menu inactivity.
Enable HDMI/VGA Simultaneous Output (for DS-9600NI and DS-8600NI only): By default,
the video outputs from HDMI and VGA interfaces can be operated separately. You can set the
simultaneous output for the HDMI and VGA by checking the checkbox of the option.
Menu Output Mode: You can choose the menu display on different video output.
For the DS-9600NI and DS-8600NI series NVR, you can select the menu output mode to
VGA/HDMI, VGA2/HDMI2.
And for the DS-7600NI and DS-7600NI series NVR, you can select the menu output mode to
VGA, HDMI or Auto. When the Auto option is selected and both HDMI and VGA outputs are
connected, the device will detect and set the HDMI as the menu output.
Step 4 Click the Apply button to save the settings.

HIKVISION DS-7716NI-K4/16P Specifications

General

Input bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
