12.4 Configuring Network Detection
Purpose:
You can obtain network connecting status of NVR through the network detection function,
including network delay, packet loss, etc.
12.4.1 Testing Network Delay and Packet Loss
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection menu, as shown in Figure
12-26.

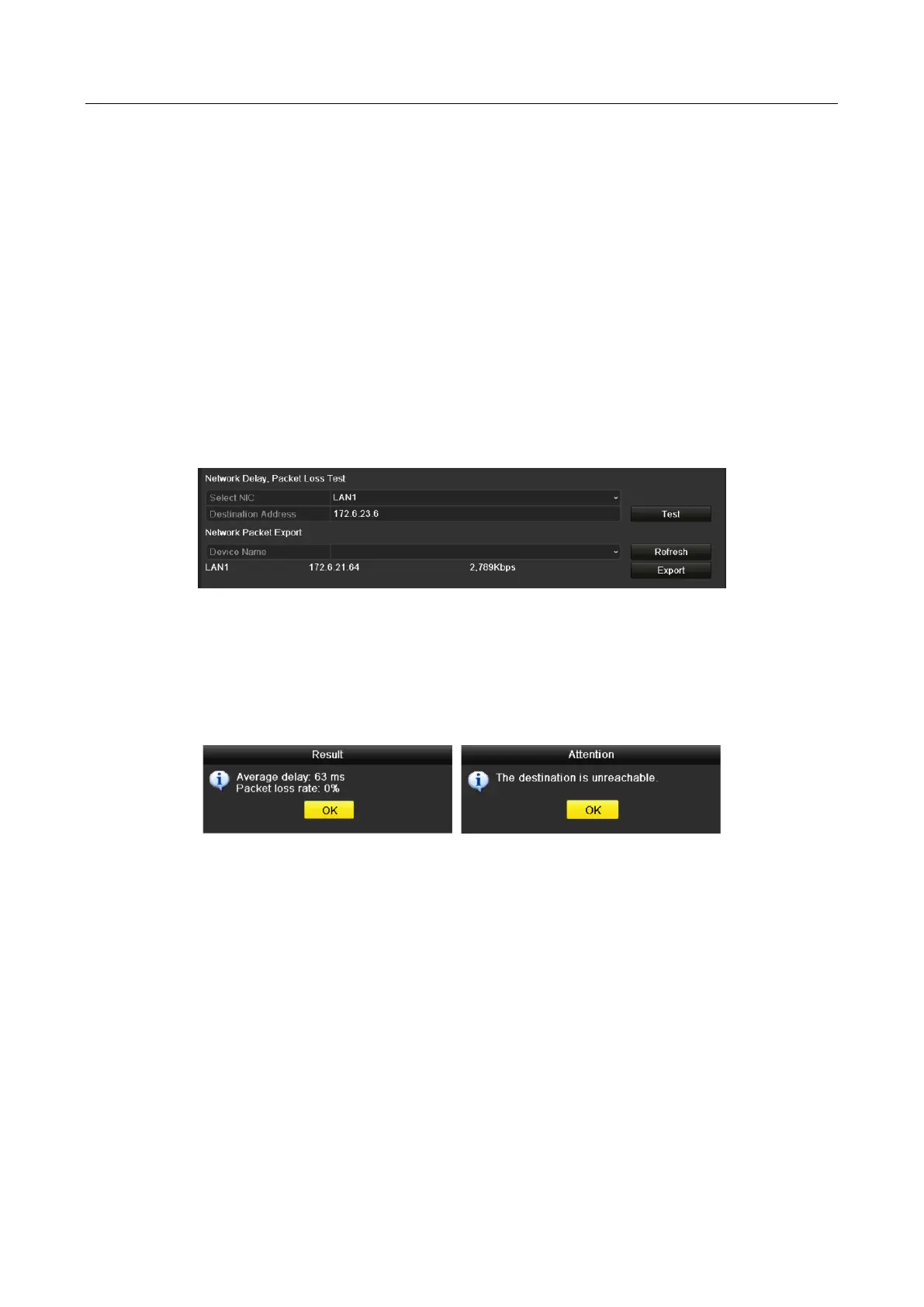

Figure 12-26 Network Detection Interface
Step 3 Enter the destination address in the text field of Destination Address.
Step 4 Click Test button to start testing network delay and packet loss. The testing result pops up
on the window. If the testing is failed, the error message box will pop up as well. Refer to
Figure 12-27.
Figure 12-27 Testing Result of Network Delay and Packet Loss
12.4.2 Exporting Network Packet
Purpose:
By connecting the NVR to network, the captured network data packet can be exported to USB-flash
disk, SATA/eSATA, DVD-R/W and other local backup devices.
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection interface.
Step 3 Select the backup device from the dropdown list of Device Name, as shown in Figure 12-28.

HIKVISION DS-7716NI-K4/16P Specifications

General

Input bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
