Network Video Recorder User Manual
149
Chapter 8 Alarm Settings
8.1 Setting Motion Detection Alarm
Step 1 Enter Motion Detection interface of Camera Management and choose a camera you want to
set up motion detection.
Menu> Camera> Motion

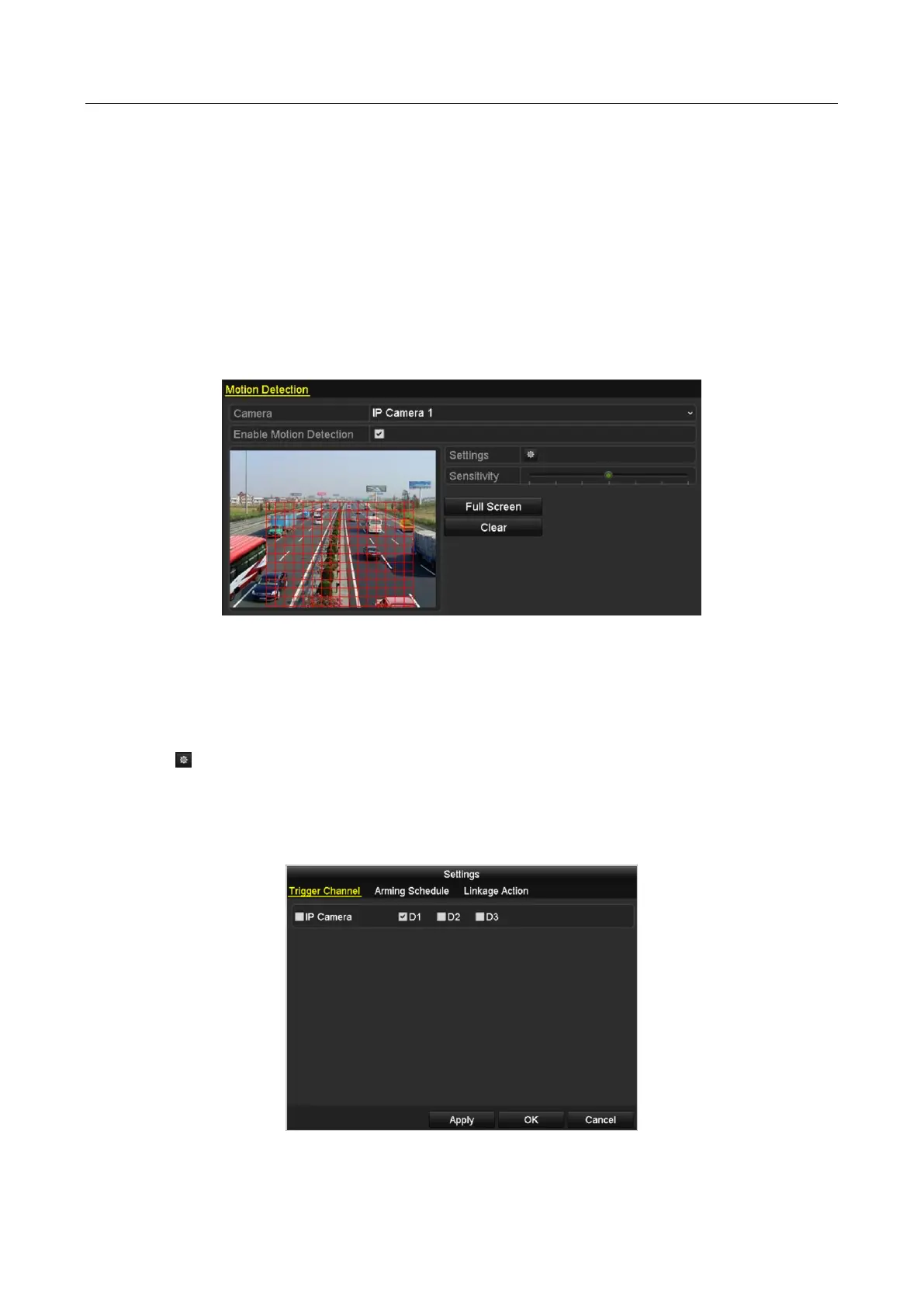

Figure 8-1 Motion Detection Setup Interface
Step 2 Set up detection area and sensitivity.
Tick “Enable Motion Detection”, use the mouse to draw detection area(s) and drag the
sensitivity bar to set sensitivity.
Click button and set alarm response actions.
Step 3 Click Trigger Channel tab and select one or more channels which will start to record/capture
or become full-screen monitoring when motion alarm is triggered, and click Apply to save
the settings.
Figure 8-2 Set Trigger Camera of Motion Detection
