HIKVISION DS-7716NI-K4/16P User Manual

Network Video Recorder User Manual
199

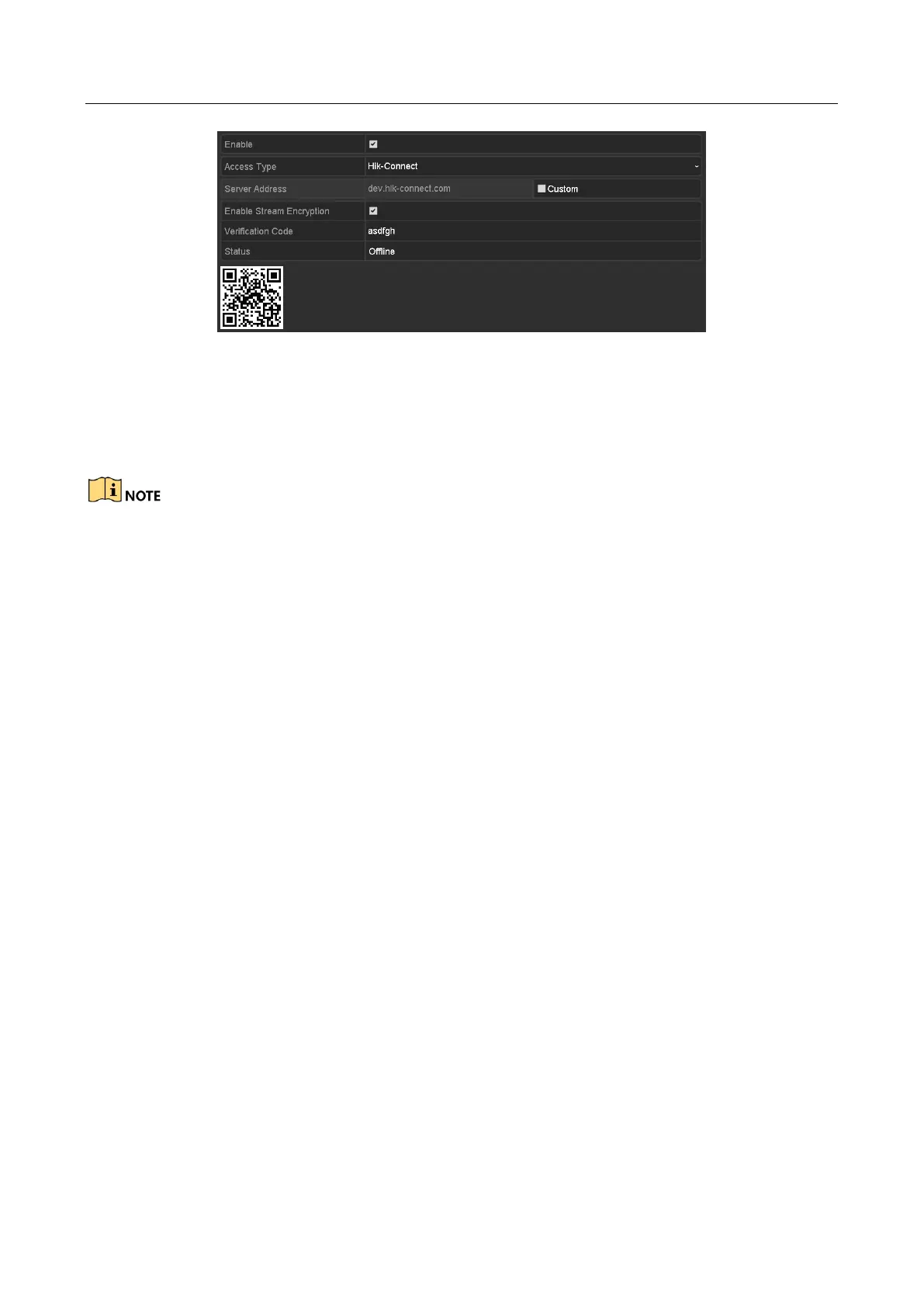

Figure 12-4 Hik-Connect Settings Interface
Step 6 Click the Apply button to save the settings.
After configuration, you can access and manage the NVR by your mobile phone on which the
Hik-Connect application is installed or by the website (www.hik-connect.com).
Please refer to the help file on the official website (www.hik-connect.com) and the Hik-Connect
Mobile Client User Manual for adding the device to Hik-Connect and more operation instructions.
12.2.2 Configuring DDNS
Purpose:
You can set the Dynamic DNS (DDNS) for network access.
Prior registration with your ISP is required before configuring the system to use DDNS.
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the DDNS tab to enter the DDNS Settings interface.
Step 3 Check the DDNS checkbox to enable this feature.
Step 4 Select DDNS Type. Three DDNS types are selectable: DynDNS, PeanutHull, and NO-IP.
• DynDNS:
1) Enter Server Address for DynDNS (i.e. members.dyndns.org).
2) In the Device Domain Name text field, enter the domain obtained from the DynDNS
website.
3) Enter the User Name and Password registered in the DynDNS website.

HIKVISION DS-7716NI-K4/16P Specifications

General

Input bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
