HIKVISION DS-7716NI-K4/16P User Manual

Network Video Recorder User Manual
165
When the new protocol is selected, you should reboot the device to activate the new settings.
 Universal Protocol
Click the Advanced button to expand more settings when selecting the universal protocol.
You can set the start line tag, line break tag and end line tag for the POS overlay characters,
and the case-sensitive property of the characters.

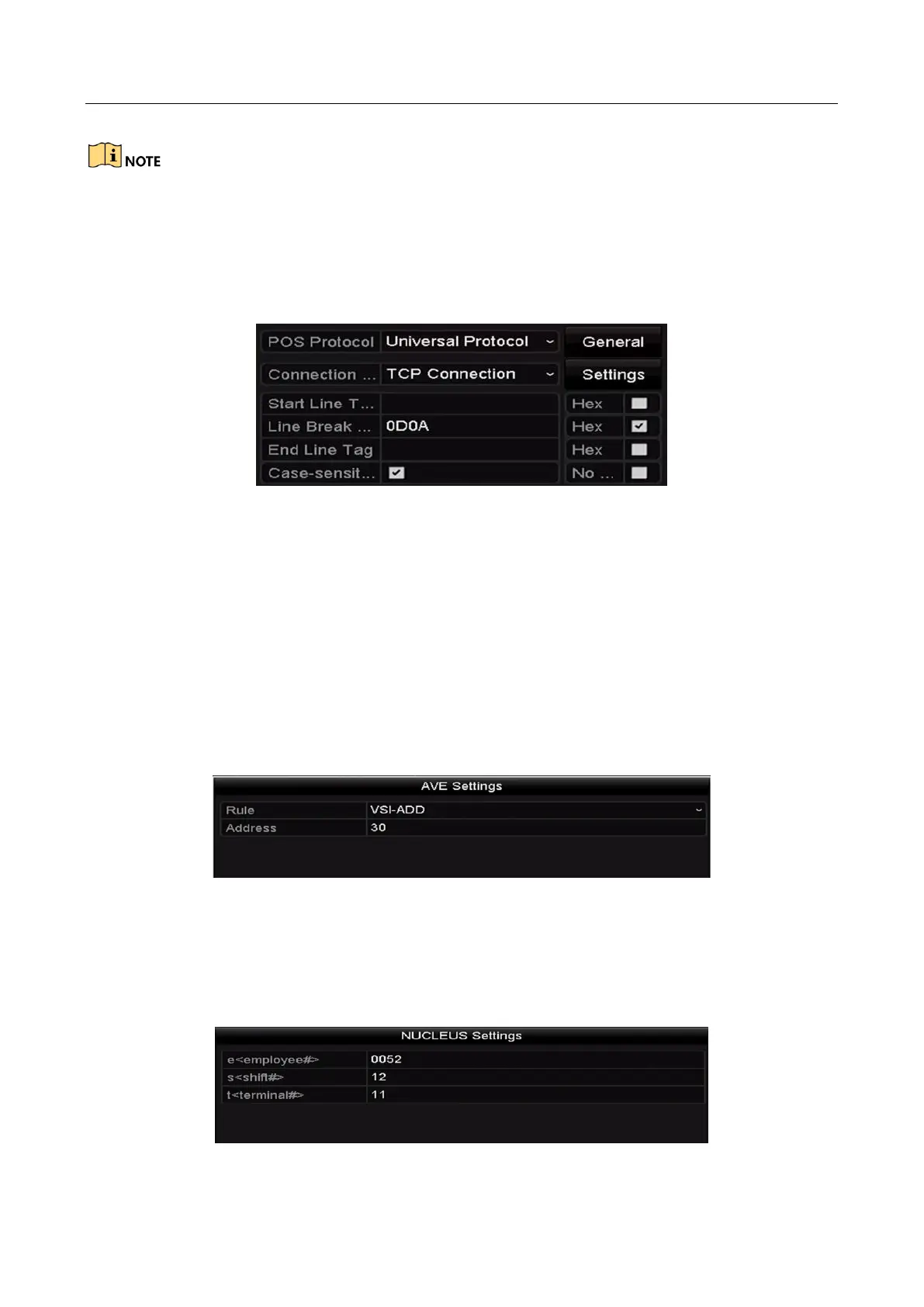

Figure 9-2 Universal Protocol Settings
 EPSON
The fixed start and end line tag are used for EPSON protocol.
 AVE
The fixed start and end line tag are used for AVE protocol. And the serial port and virtual
serial port connection types are supported.
1) Click the Set to configure the AVE settings.
2) Se the rule to VSI-ADD or VNET.
3) Set the address bit of the POS message to send.
4) Click OK to save the settings.
Figure 9-3 AVE Settings
 NUCLEUS
1) Click the Set to configure the NUCLEUS settings.
2) Enter the employee No. shift No. and the terminal No. in the field. The matching message sent from
the POS device will be used as the valid POS data.
Figure 9-4 NUCLEUS Settings

HIKVISION DS-7716NI-K4/16P Specifications

General

Input bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
