Network Video Recorder User Manual
136

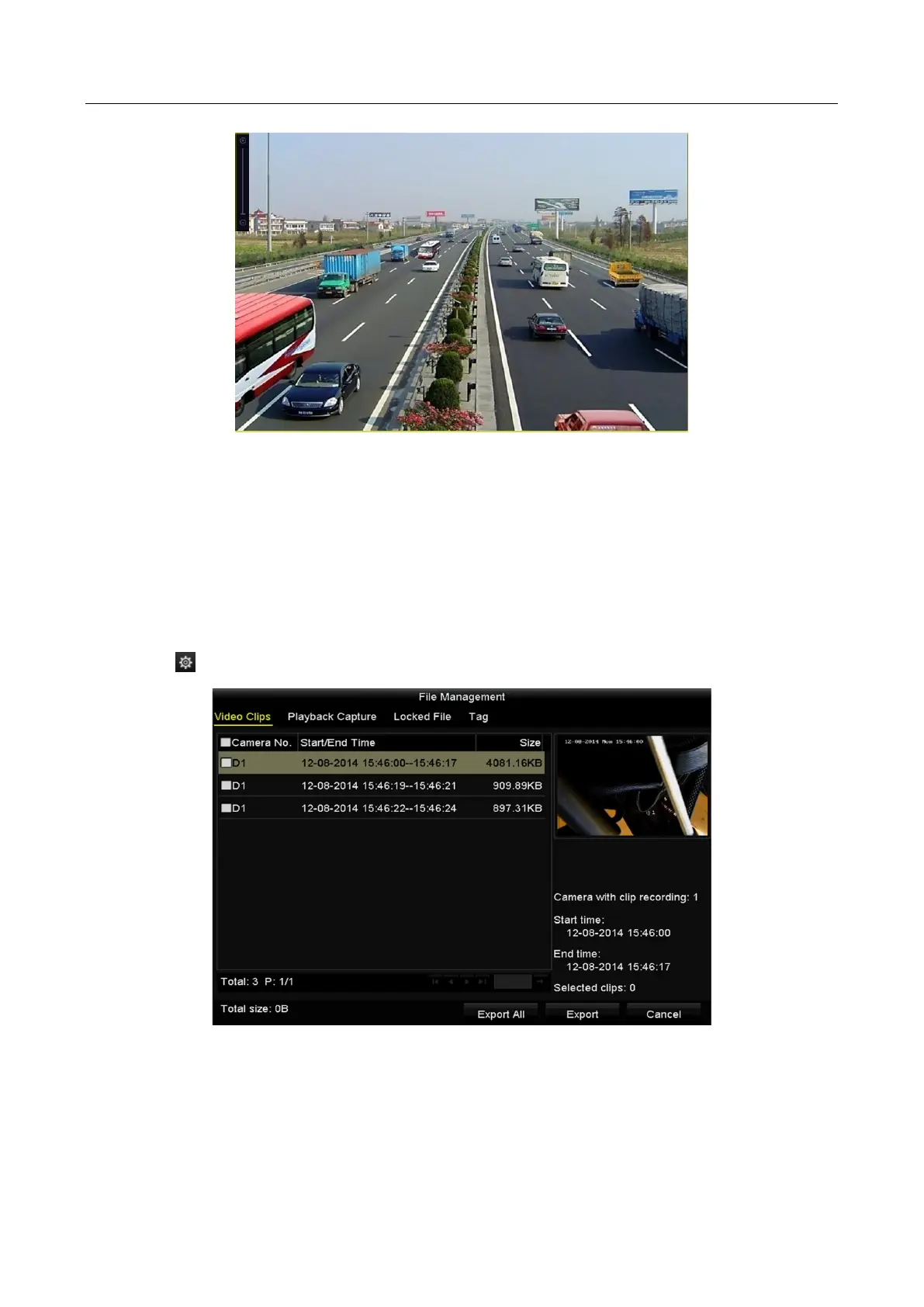

Figure 6-23 Draw Area for Digital Zoom
Step 3 Right-click the image to exit the digital zoom interface.
6.2.5 File Management
You can manage the video clips, captured pictures in playback, locked files and tags you have
added in the playback mode.
Step 1 Enter the playback interface.
Step 2 Click on the toolbar to enter the file management interface.
Figure 6-24 File Management
Step 3 You can view the saved video clips, captured playback pictures, lock/unlock the files and edit
the tags which you added in the playback mode.
Step 4 If required, select the items and click Export All or Export to export the
clips/pictures/files/tags to local storage device.

Table of Contents

Other manuals for HIKVISION DS-7732NI-I4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7732NI-I4 and is the answer not in the manual?

HIKVISION DS-7732NI-I4 Specifications

General IconGeneral
Playback modesPause, Play
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels32 channels
Alarm output channels4
Video formats supportedH.264, H.265, MPEG4
Resolution at capture speed1920x1080@60fps, 3840x2160@30fps
On/off switchYes
Product colorBlack, Silver
Rack capacity1.5U
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
AC input voltage100 - 240 V
Power consumption (typical)20 W
RS-485 ports1
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
HDD capacity- GB
HDD interfaceSerial ATA
Maximum storage capacity24 TB
Number of HDDs installed-
Total installed storage capacity12000 GB
Weight and Dimensions IconWeight and Dimensions
Depth390 mm
Width445 mm
Height70 mm
