HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
190

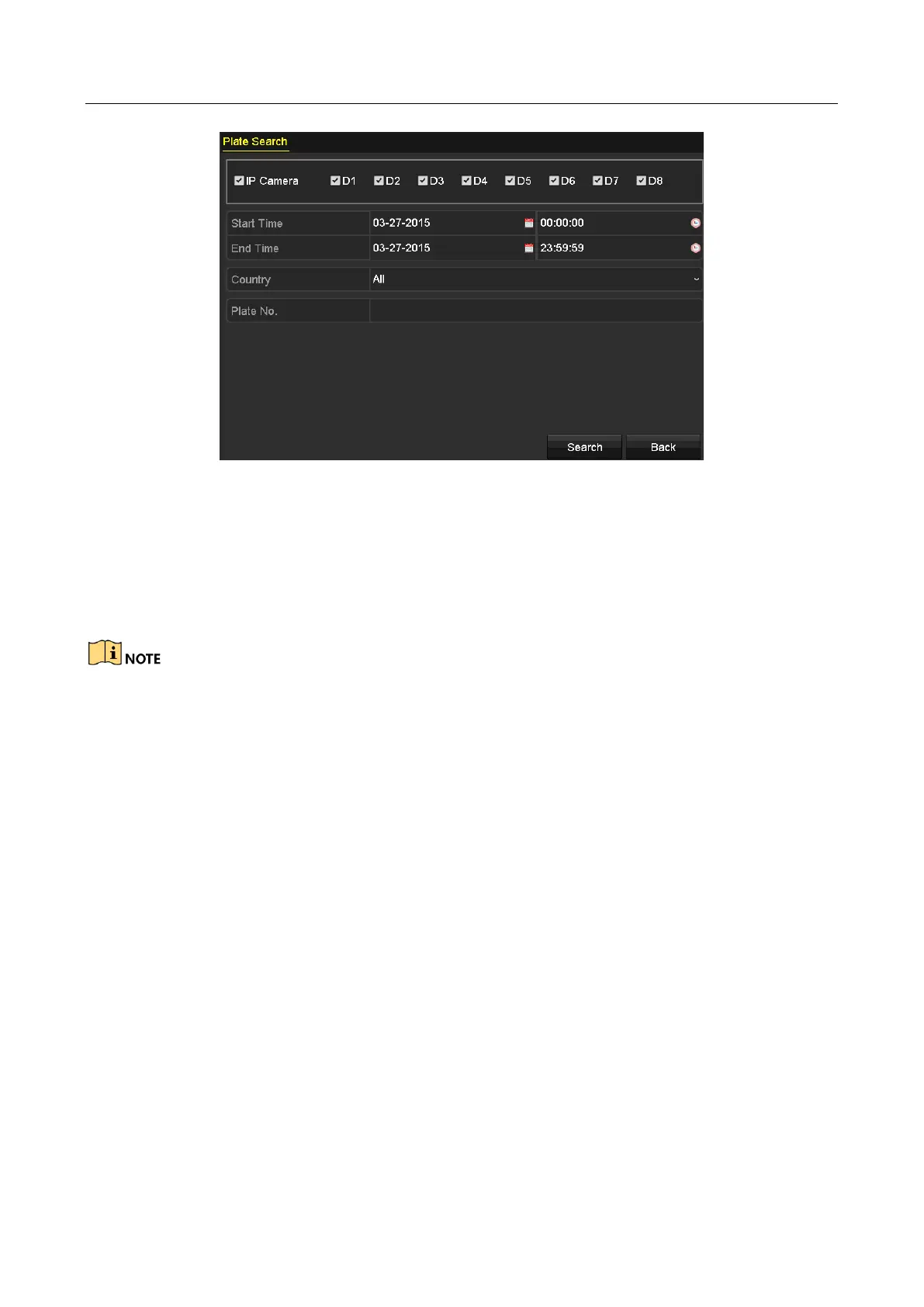

Figure 11-6 Plate Search
Step 4 Select the country from the drop-down list for searching the location of the vehicle plate.
Step 5 Input the plate No. in the field for search.
Step 6 Click Search to start searching. The search results of detected vehicle plate pictures are
displayed in list or in chart.
Please refer to the Step7-Step8 of Section 10.1 Face Search for the operation of the search results.
11.4 People Counting
Purpose:
The Counting is used to calculate the number of people entered or left a certain configured area
and form in daily/weekly/monthly/annual reports for analysis.
Step 1 Enter the Counting interface.
Step 2 Menu>VCA Search>Counting
Step 3 Select the camera for the people counting.
Step 4 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.
Step 5 Set the statistics time.
Step 6 Click the Counting button to start people counting statistics.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
