HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
193
11.6 Advanced Search
The DS-7600/7700/8600/9600-I (/P) series NVR supports the advanced search for
fire/ship/temperature/temperature difference detection triggered alarm and the recorded video
files and pictures.
Before you start
To get the smart search result, the corresponding fire/ship temperature/temperature difference
type must be enabled and configured on the connected thermal network camera (Configuration >
Advanced Configuration> Smart Event). Please refer to the user manual of the thermal network
camera for details.
Step 1 Enter the Advanced Search interface.
Menu > VCA Search > Advanced Search
Step 2 Select the camera (s) for the advanced search.

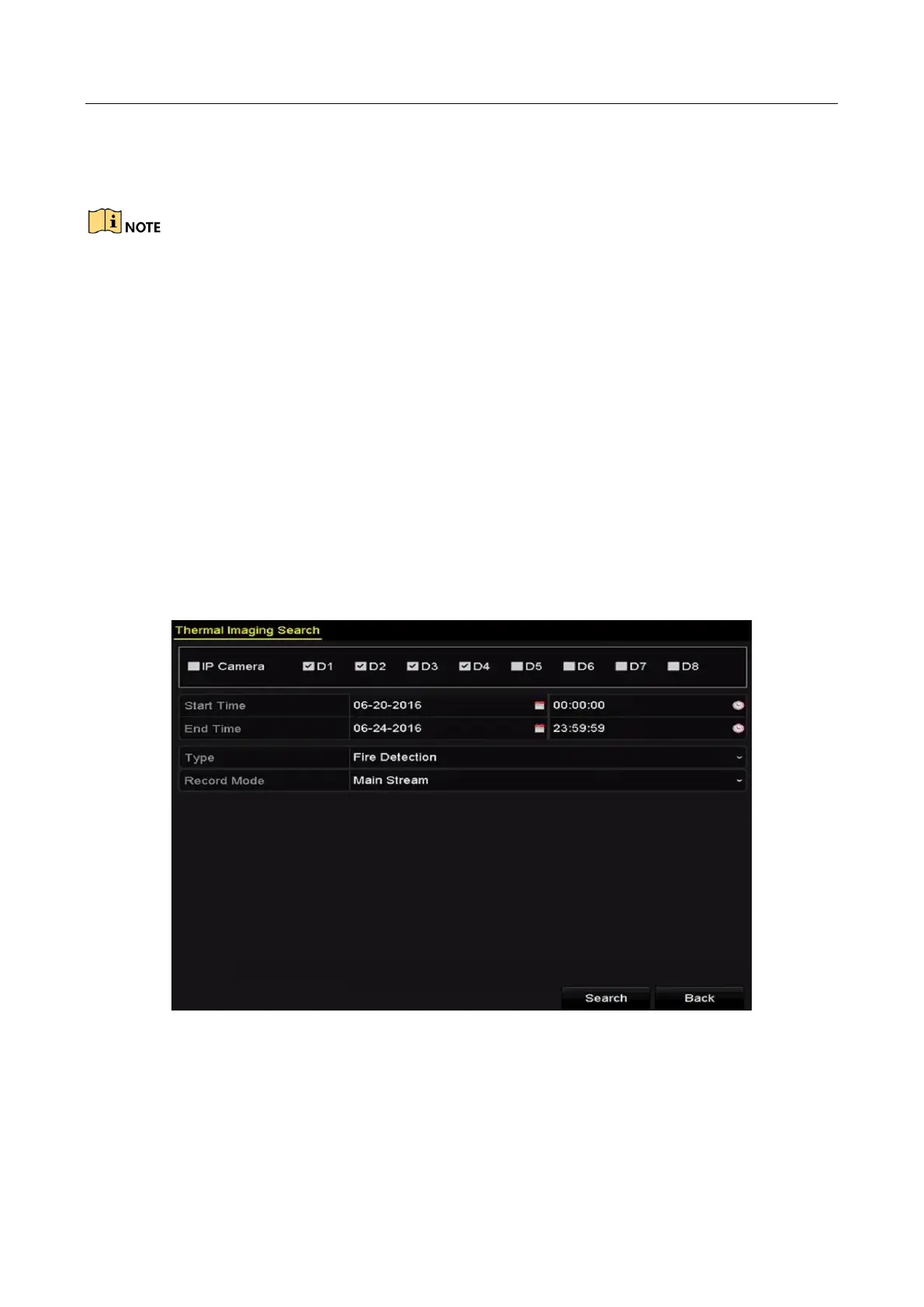

Figure 11-9 Advanced Search
Step 3 Specify the start time and end time for searching the thermal imaging detection results.
Step 4 Select the type to fire detection, ship detection, temperature detection and temperature
difference detection.
Step 5 Click Search to start searching. The search results are displayed in list or in chart.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
