HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
214

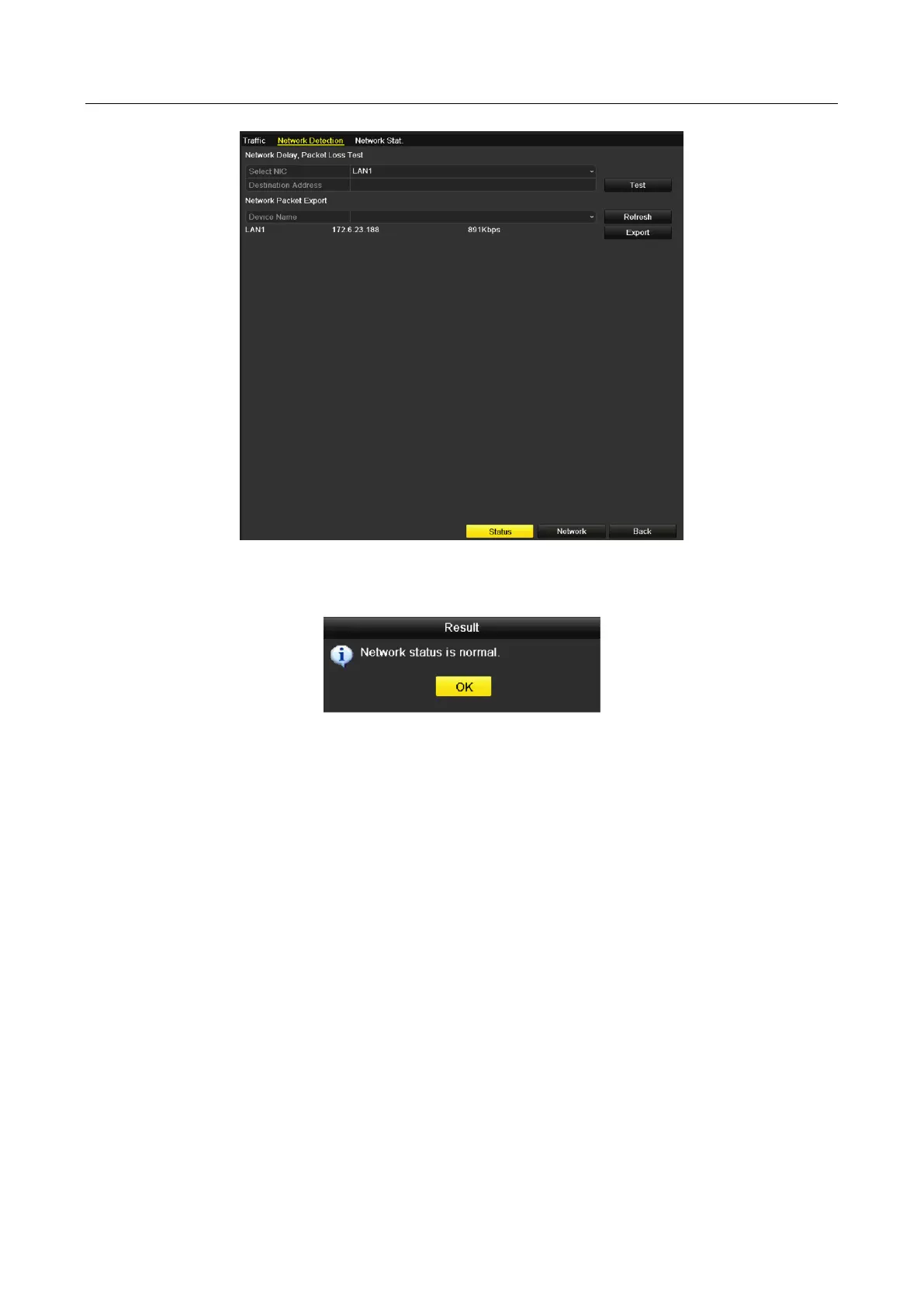

Figure 12-30 Network Status Checking
If the network is normal the following message box pops out.
Figure 12-31 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click
Network button to show the quick setting interface of the network parameters.
12.4.4 Checking Network Statistics
Purpose:
You can check the network status to obtain the real-time information of NVR.
Step 1 Enter the Network Detection interface.
Menu>Maintenance>Net Detect
Step 2 Choose the Network Stat. tab.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
