HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
97
5.2 Configuring Recording and Capture Schedule
Purpose:
Set the record schedule, and then the camera automatically starts/stops recording according to the
configured schedule.
In this chapter, we take the record schedule procedure as an example, and the same procedure can
be applied to configure schedule for both recording and capture. To schedule the automatic
capture, you need to choose the Capture tab in the Schedule interface.
Step 1 Enter the Record Schedule interface.
Menu>Record/Capture>Schedule
Step 2 Configure Record Schedule
1) Select Record/Capture Schedule.

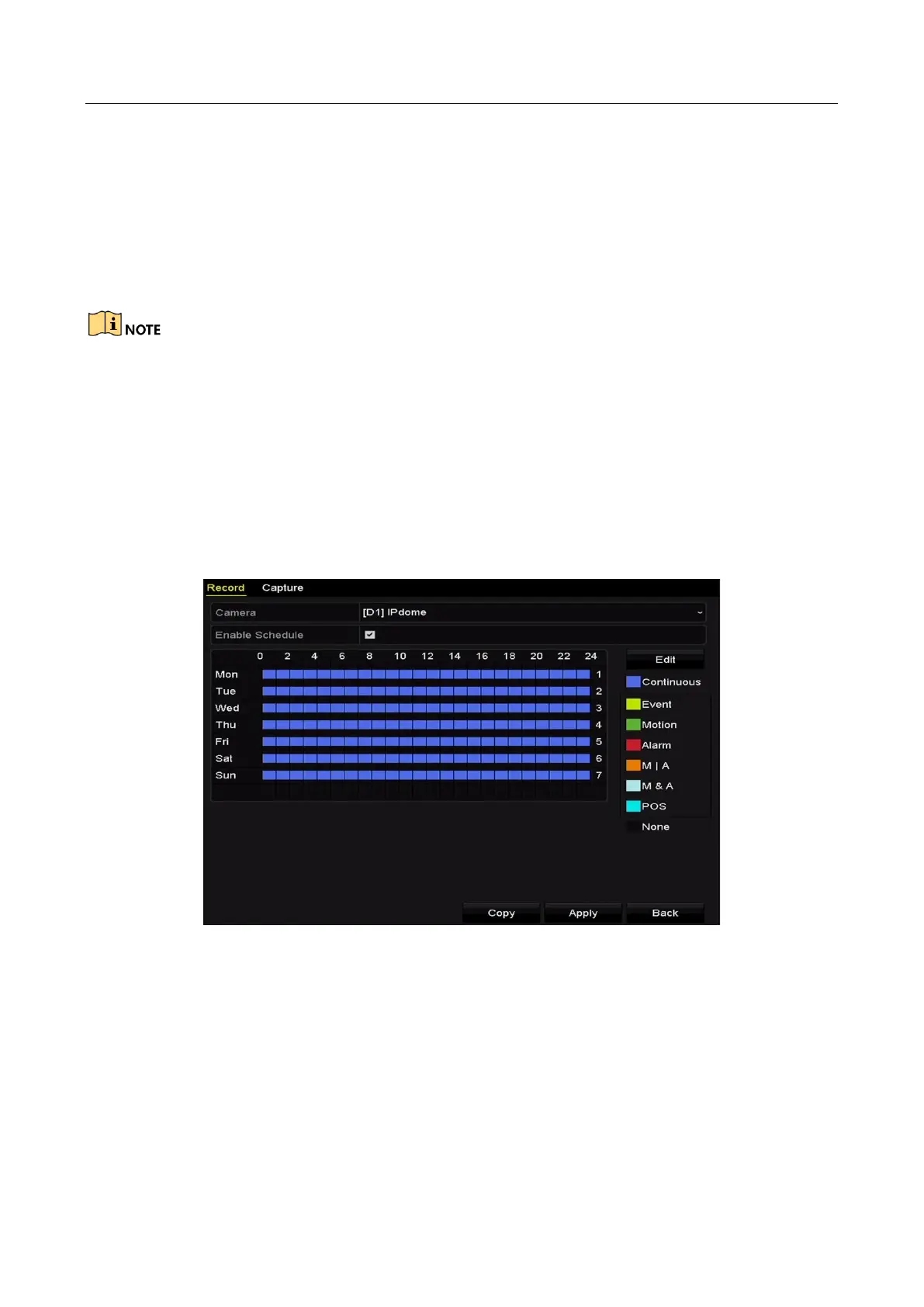

Figure 5-7 Record Schedule
Different recording types are marked in different color icons.
Continuous: scheduled recording.
Event: recording triggered by all event triggered alarm.
Motion: recording triggered by motion detection.
Alarm: recording triggered by alarm.
M/A: recording triggered by either motion detection or alarm.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
