HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
229
14.2 Managing Network HDD
Purpose:
You can add the allocated NAS or disk of IP SAN to NVR, and use it as network HDD. Up to 8
network disks can be added.
Step 1 Enter the HDD Information interface.
Menu > HDD>General

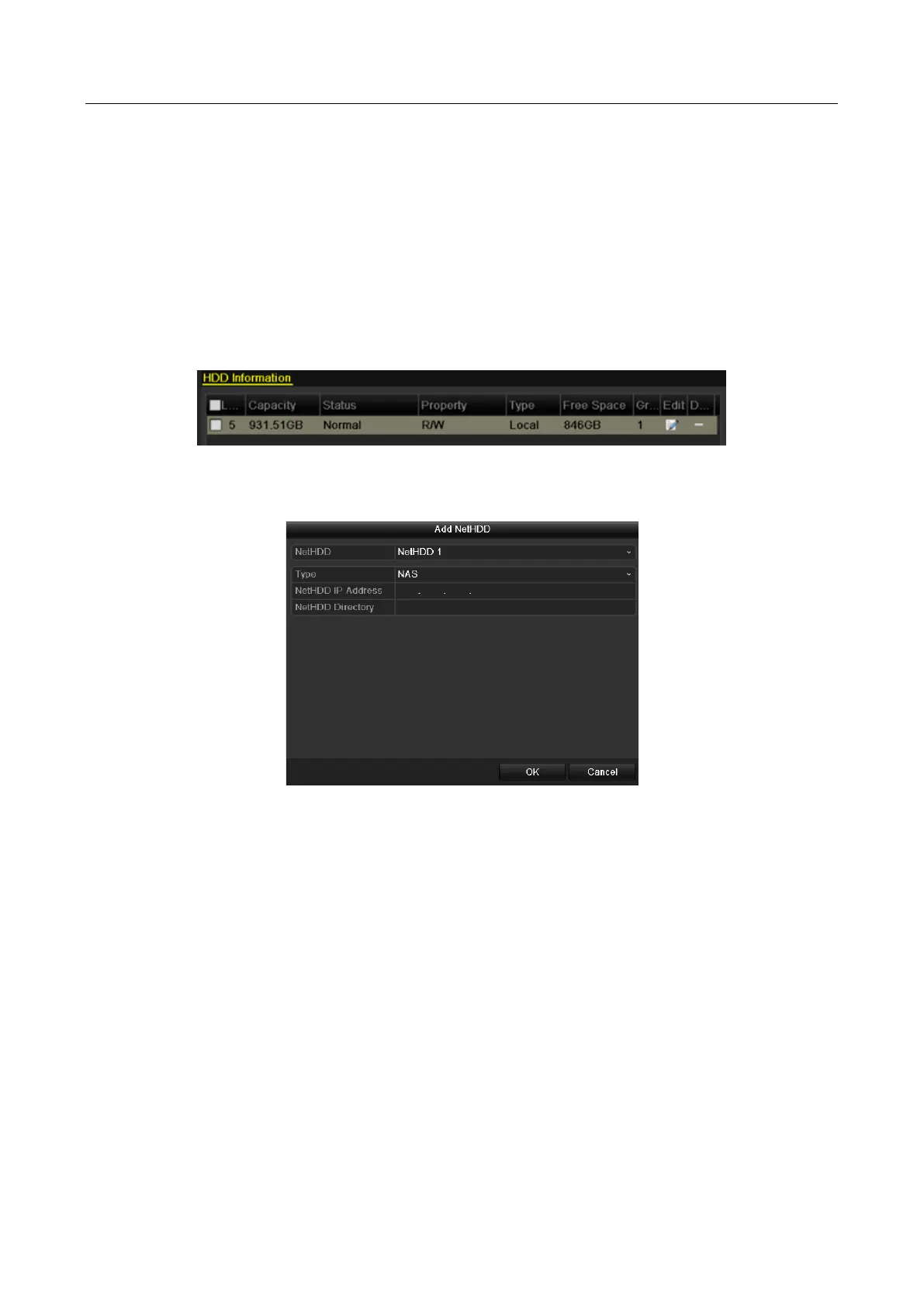

Figure 14-6 HDD Information Interface
Step 2 Click the Add button to enter the Add NetHDD interface, as shown in Figure 14-7.
Figure 14-7 HDD Information Interface
Step 3 Add the allocated NetHDD.
Step 4 Select the type to NAS or IP SAN.
Step 5 Configure the NAS or IP SAN settings.
 Add NAS disk:
1) Enter the NetHDD IP address in the text field.
2) Click the Search button to search the available NAS disks.
3) Select the NAS disk from the list shown below.
4) Or you can just manually enter the directory in the text field of NetHDD Directory.
5) Click the OK button to add the configured NAS disk.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
