HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
230

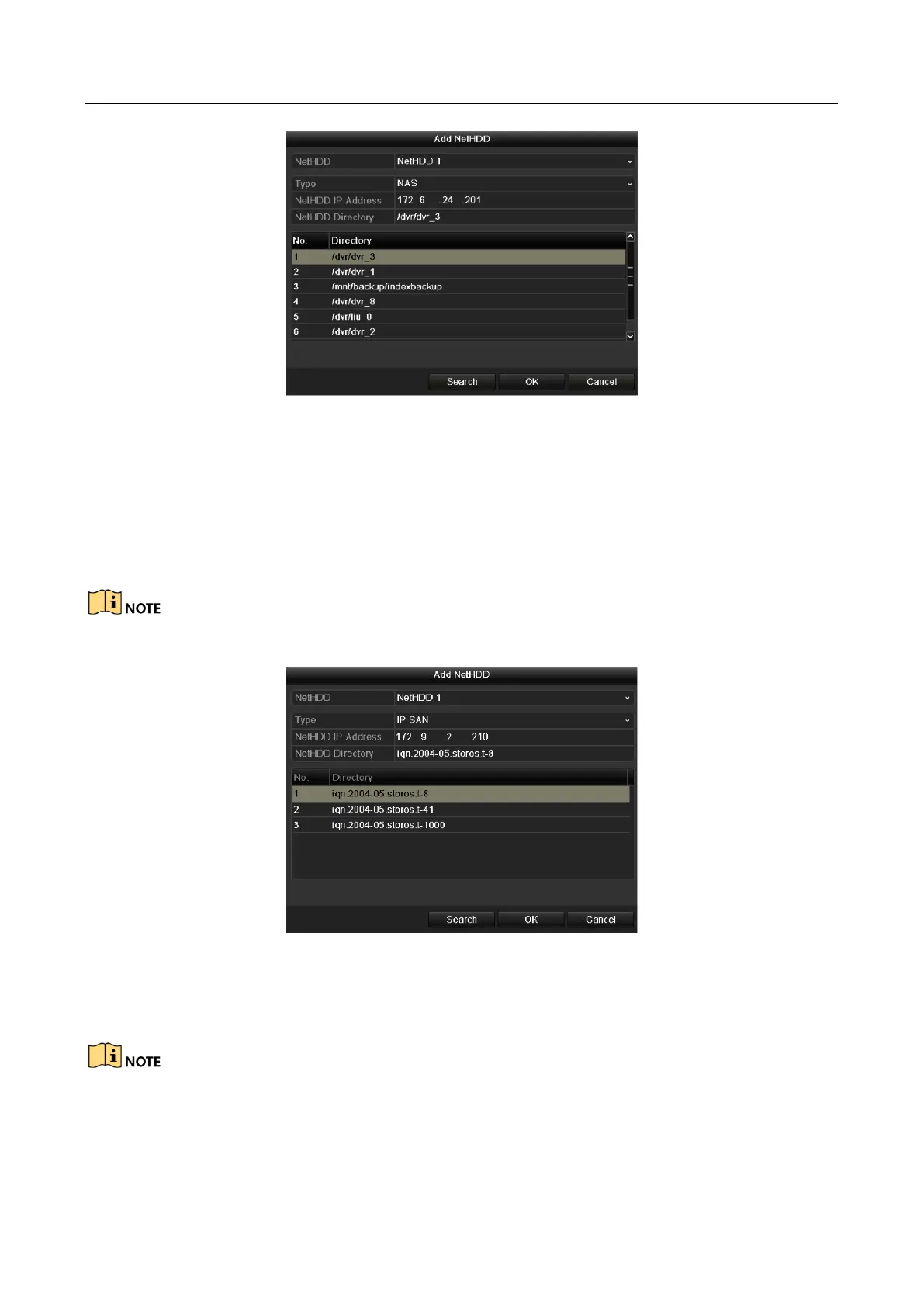

Figure 14-8 Add NAS Disk
 Add IP SAN:
1) Enter the NetHDD IP address in the text field.
2) Click the Search button to search the available IP SAN disks.
3) Select the IP SAN disk from the list shown below.
4) Click the OK button to add the selected IP SAN disk.
Up to 1 IP SAN disk can be added.
Figure 14-9 Add IP SAN Disk
Step 6 After having successfully added the NAS or IP SAN disk, return to the HDD Information menu.
The added NetHDD will be displayed in the list.
If the added NetHDD is uninitialized, please select it and click the Init button for initialization.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
