HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
165
When the new protocol is selected, you should reboot the device to activate the new settings.
 Universal Protocol
Click the Advanced button to expand more settings when selecting the universal protocol.
You can set the start line tag, line break tag and end line tag for the POS overlay characters,
and the case-sensitive property of the characters.

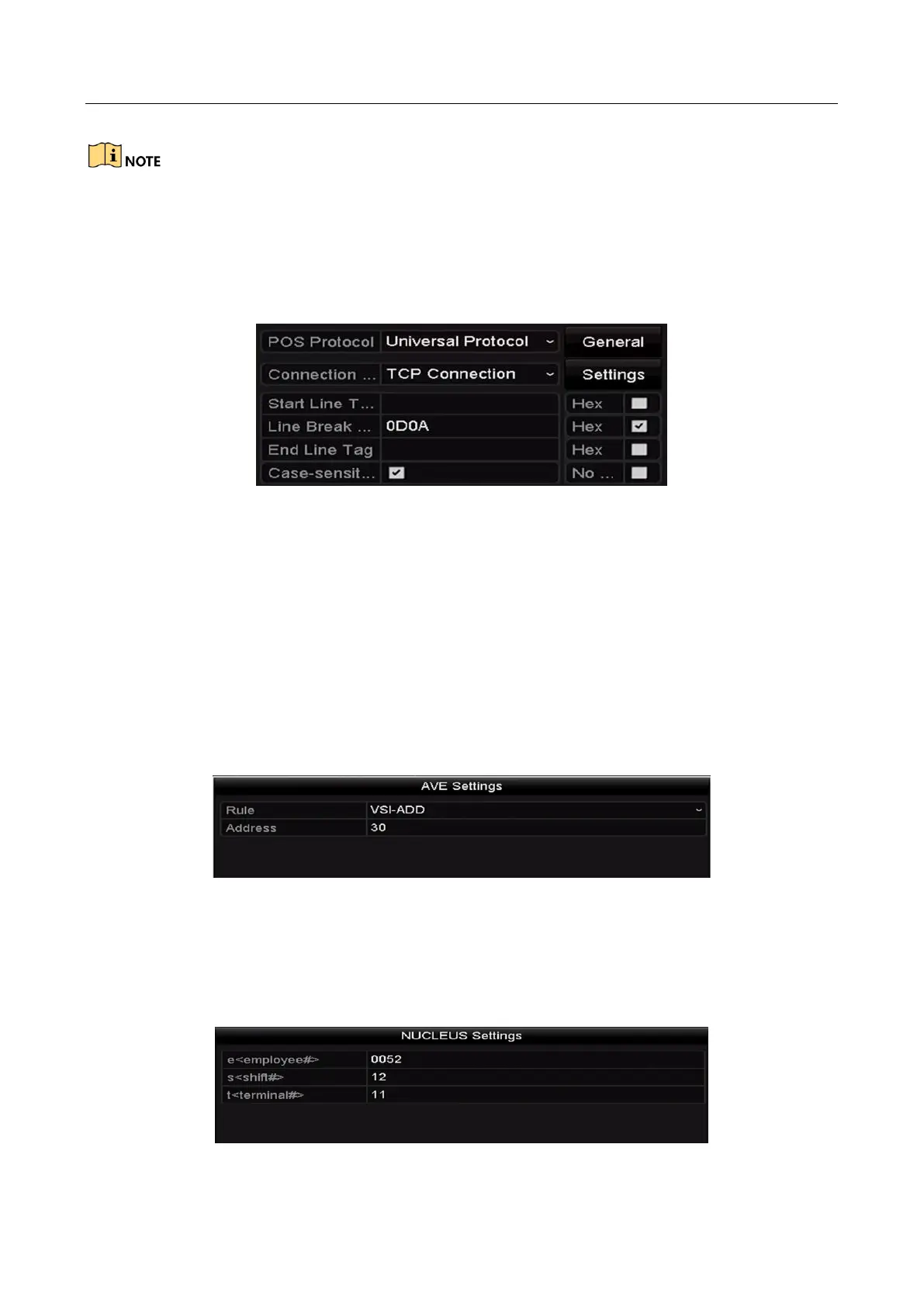

Figure 9-2 Universal Protocol Settings
 EPSON
The fixed start and end line tag are used for EPSON protocol.
 AVE
The fixed start and end line tag are used for AVE protocol. And the serial port and virtual
serial port connection types are supported.
1) Click the Set to configure the AVE settings.
2) Se the rule to VSI-ADD or VNET.
3) Set the address bit of the POS message to send.
4) Click OK to save the settings.
Figure 9-3 AVE Settings
 NUCLEUS
1) Click the Set to configure the NUCLEUS settings.
2) Enter the employee No. shift No. and the terminal No. in the field. The matching message sent from
the POS device will be used as the valid POS data.
Figure 9-4 NUCLEUS Settings

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
