Network Video Recorder User Manual
174

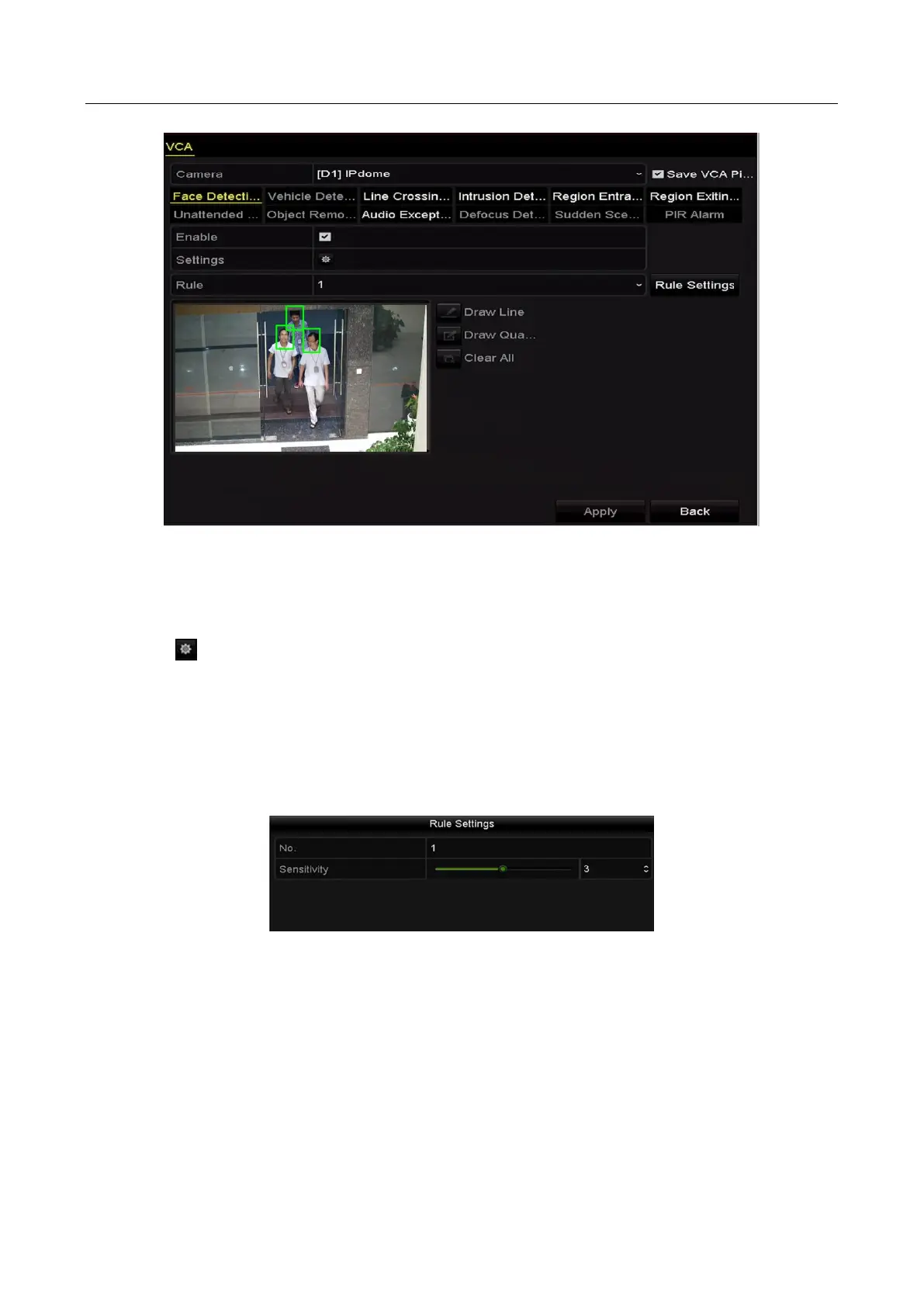

Figure 10-1 Face Detection
Step 3 Select the VCA detection type to Face Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to enter the face detection settings interface. Configure the trigger channel,
arming schedule and linkage action for the face detection alarm. Please refer to step3~step5
of Chapter 8.1 Setting Motion Detection Alarm for detailed instructions.
Step 6 Click the Rule Settings button to set the face detection rules. You can click-and-drag the
slider to set the detection sensitivity.
Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.
Figure 10-2 Set Face Detection Sensitivity
Step 7 Click Apply to activate the settings.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
