HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
39
DS-7600NI-K1 and DS-7600NI-K1/4P

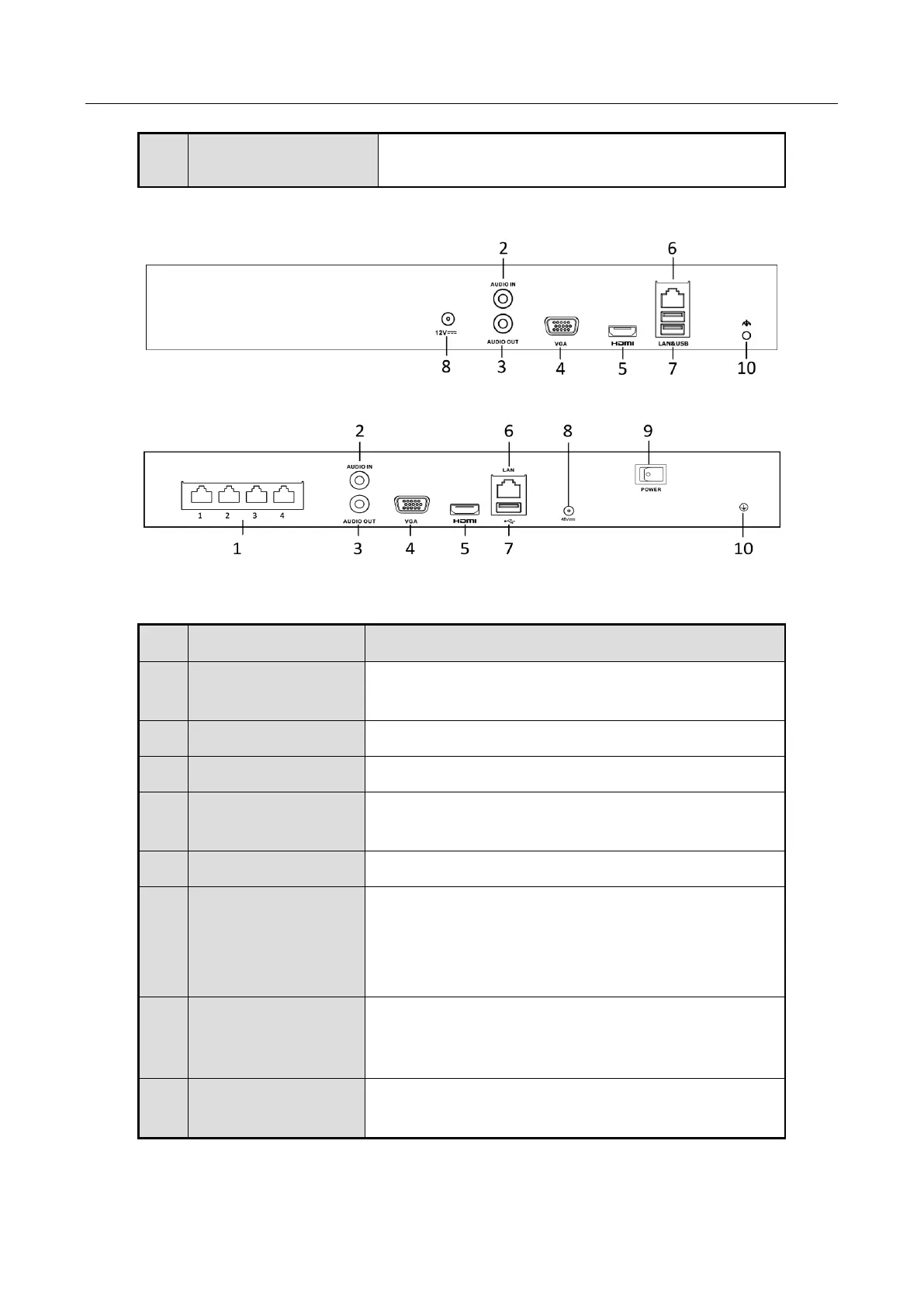

Figure 1-14 DS-7600NI-K1 Series
Figure 1-15 DS-7604NI-K1/4P Series
Table 1-10 Panel Description
(supported by
DS-7600NI-I2/P)
No.
Name
Description
1
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
2
Audio In
RCA connector for audio input.
3
Audio Out
RCA connector for audio output.
4
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
5
HDMI Interface
HDMI video output connector.
6
LAN Network
Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface for DS-7600NI-K1;
1 100 Mbps full-duplex Ethernet interface for
DS-7600NI-K1/4P.
7
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
9
Power Supply
12VDC power supply for DS-7600NI-K1 and 48 VDC
power supply for DS-7600NI-K1/4P

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
