DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
102

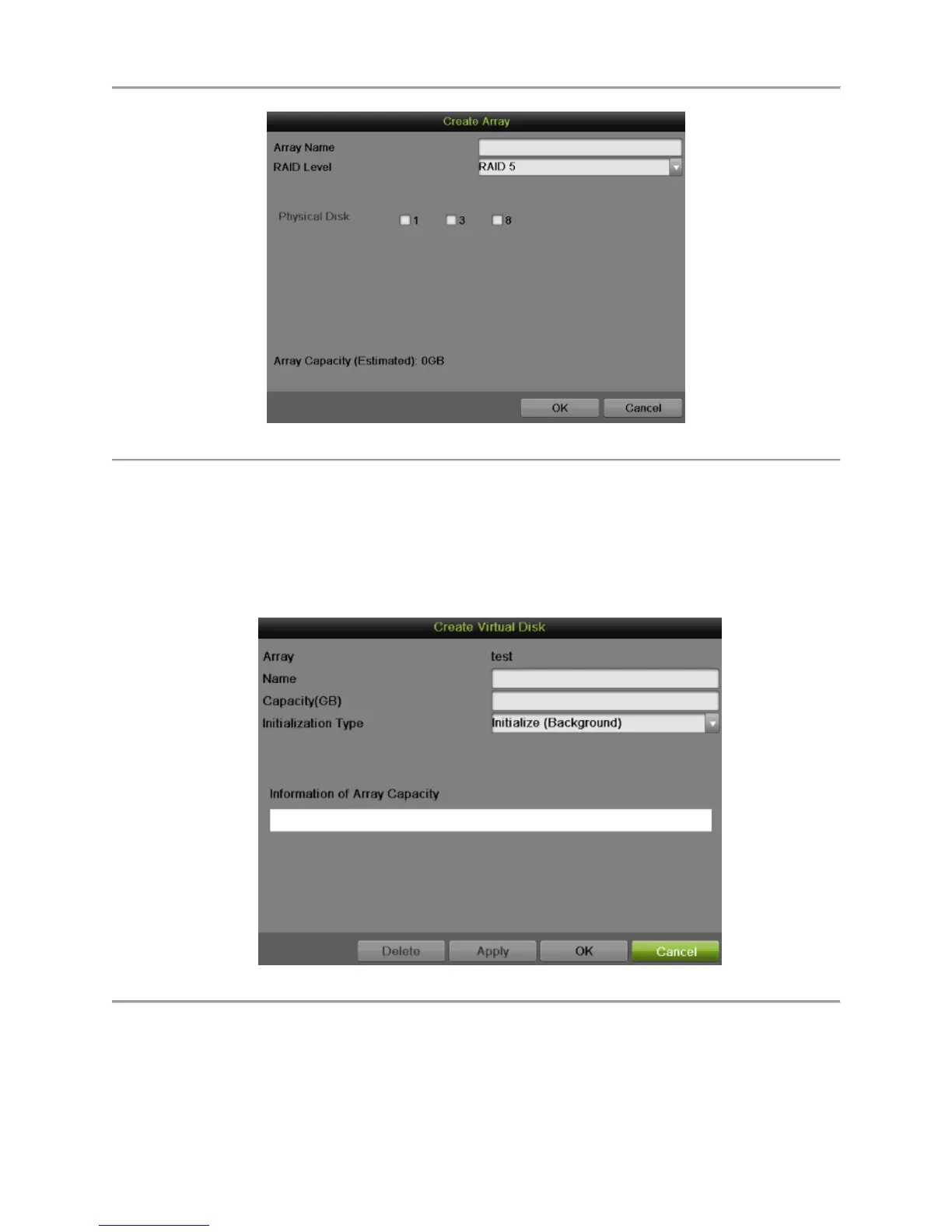

Figure 105 Create Array Interface
3. Edit the Array Name.
4. Select the RAID Level from RAID 0, RAID 1, RAID 5 and RAID 10.
5. Check the checkbox of corresponding disk to select the Physical Disk that you want to configure
array.
6. Click OK to create array.
7. Click Array tab to view the successfully created array.
8. Click to select an array and click Create Vd to enter the Create Virtual Disk interface.
Figure 106 Create Virtual Disk Interface
9. Edit the Virtual Disk Name.
10. Set the Capacity of the virtual disk. And at least 100GB capacity must be configured for each
virtual disk. You can click the Information of Array Capacity area to set the remaining capacity
of the array for the disk.
11. Select the Initialization Type from Background, Foreground and Fast.
