DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
81
Configuring Alarm Inputs
Certain actions can also be performed if an alarm input is triggered. To setup trigger actions:
1. Enter the Trigger menu, shown in Figure 82 by going to Menu > Recording Configuration >
Trigger.

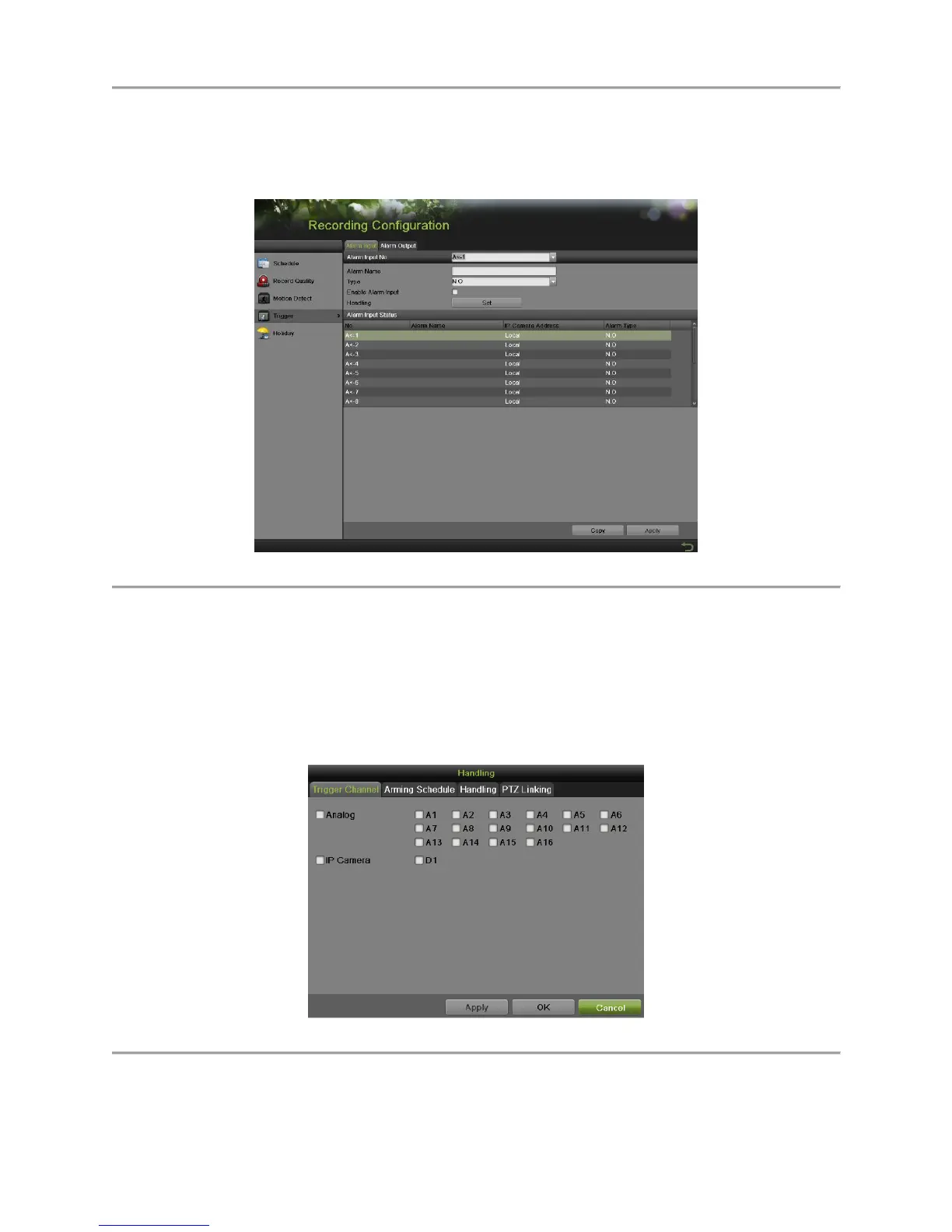

Figure 82 Trigger Settings Menu
2. Select the Alarm Input tab.
3. Select the Alarm Input No. in the dropdown list.
4. Edit the Alarm Name.
5. Select the trigger Type for the external alarm input device. N.O means Normal Open. N.C means
Normal Close. These two types can be selected.
6. Check the Enable Alarm Input checkbox to enable the selected alarm input. Uncheck the
checkbox to disable alarm input.
7. Click Handing Set to pop-up the Handing menu, as shown in Figure 83.
Figure 83 Trigger Channel Settings Menu
1) Select the Trigger Channel tab and check the checkbox of channels which you want the
alarm to trigger recording. Click Apply to save the settings.
To Next Page
