DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
119

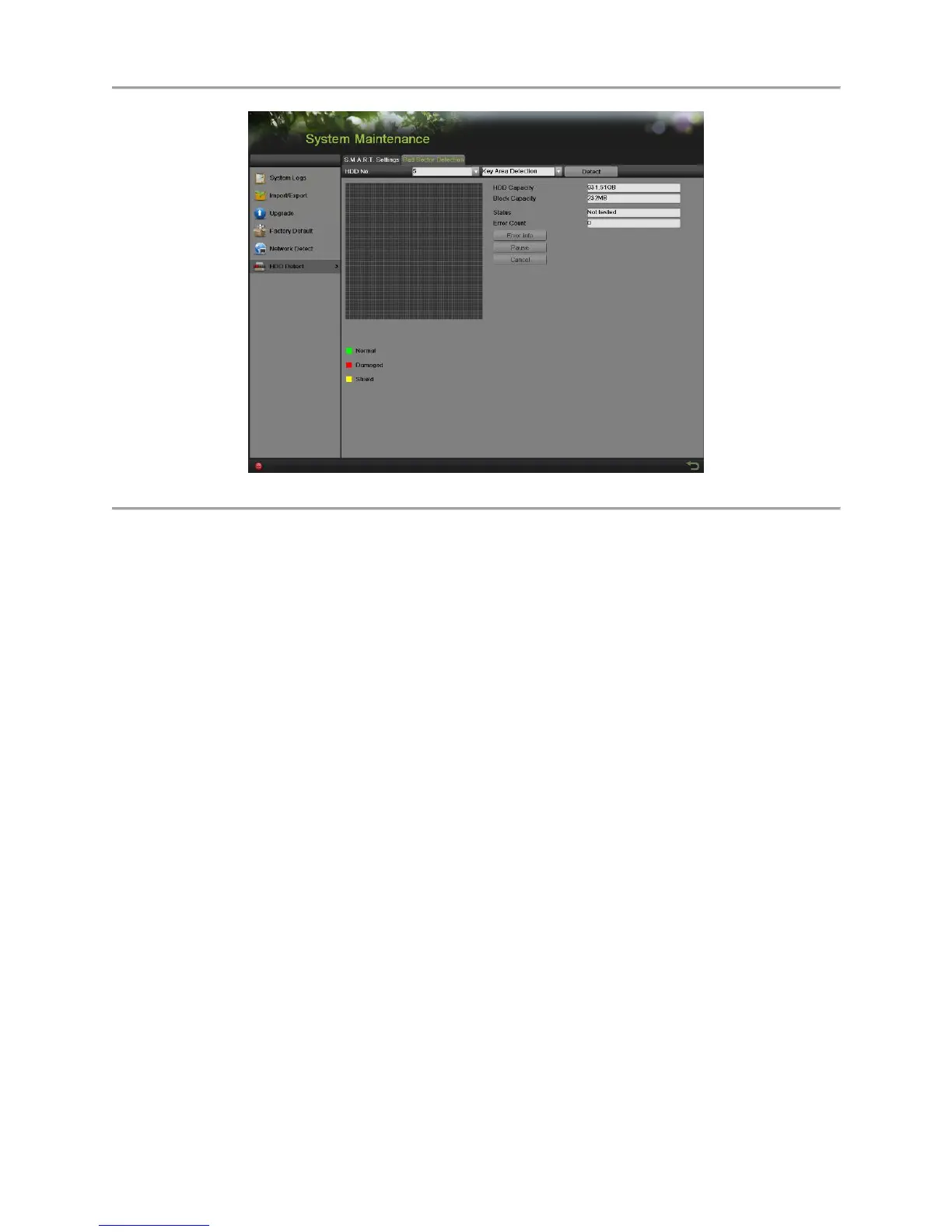

Figure 135 Bad Sector Detection Interface
3. Select the HDD you want to configure in the dropdown list.
4. Choose Key Area Detection or All Detection.
5. Click the Detect button to start the detection.
6. Click the Pause/Cancel button to pause/cancel at any time you want.
7. If the HDD is normal you can see the green color icon on the screen, while red means damaged
and yellow means shield.
8. Click the Error Info to see the detail damage or shield information.
