DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
98

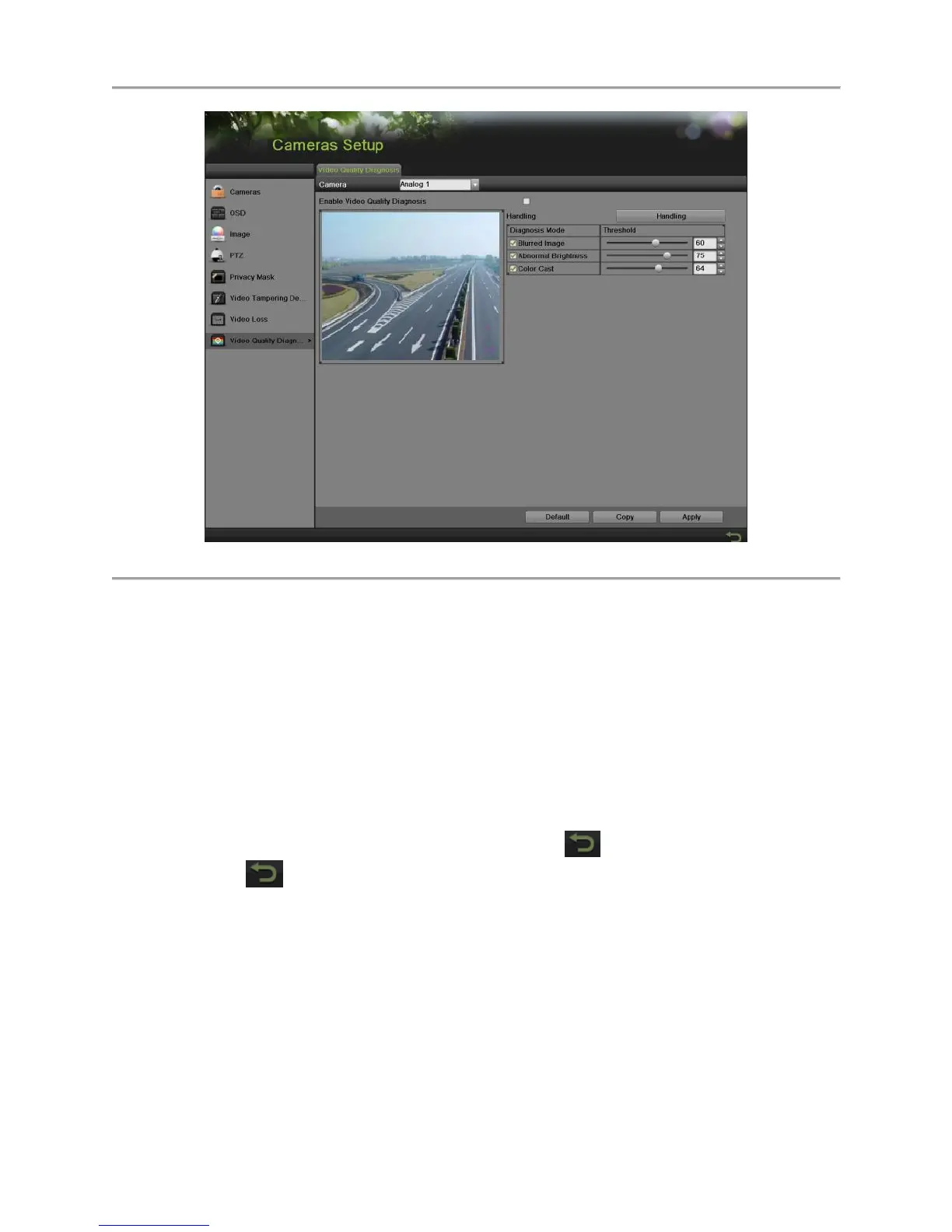

Figure 102 Video Quality Diagnosis Configuration Menu
5. Select the camera to setup Video Quality Diagnosis configuration in using the camera dropdown
list.
6. Check the Enable Video Quality Diagnosis check box to enable this function.
7. Click the Handing button to set the alarming schedule and linkage action.
8. Configure Diagnosis Mode settings, including:
Blurred Image: the blurredness of image.
Abnormal Brightness: the brightness of the image.
Color Cast: the color cast of image.
9. If you want to reset the default settings of threshold, click Default to set a default threshold
value to each kind of diagnosis mode.
10. If the same configurations can be applied to other channels, click Copy to copy the settings to
other channels.
11. Select the Apply button to save these settings and select to return to the previous menu.
Selecting without clicking Apply will quit out of the menu without saving settings.
