HIKVISION DS-C30S-S23 User Manual

Video Wall Controller • User Manual
13

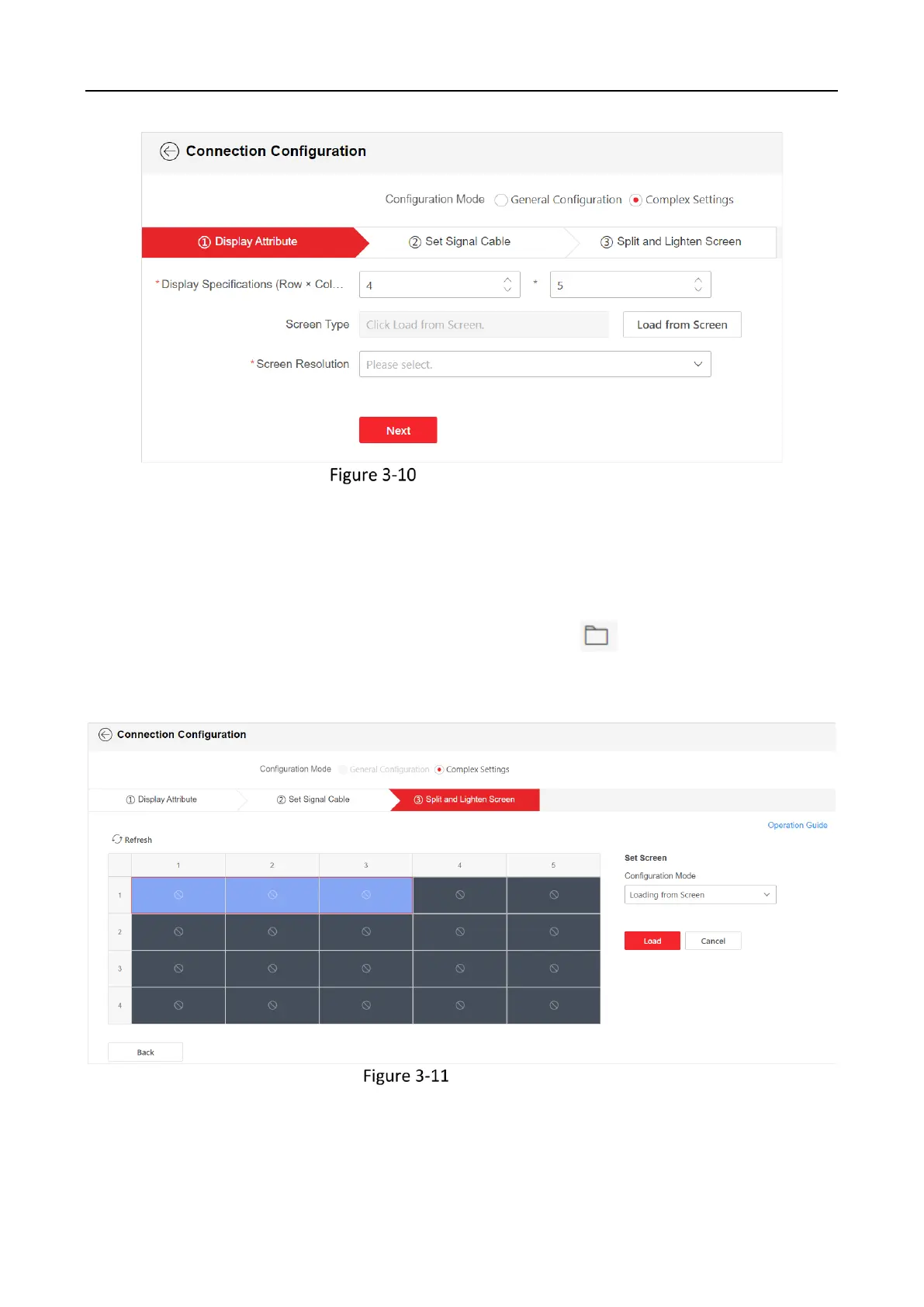

Select Complex Settings
1) Set the screen attribute.
2) Set the signal connection.
3) Select the screens that are bound with sending cards and lighten the screens.
− Select Load from Screen as the screen configuration mode, and click Load.
− Select Import File as screen configuration mode, click to import a locally saved
file.
Lighten Screen

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
