HIKVISION DS-C30S-S23 User Manual

Video Wall Controller • User Manual
35
Only UHD signal sources (such as 4K HDMI input channels or 4K DP input channels) support the
resolution customization.

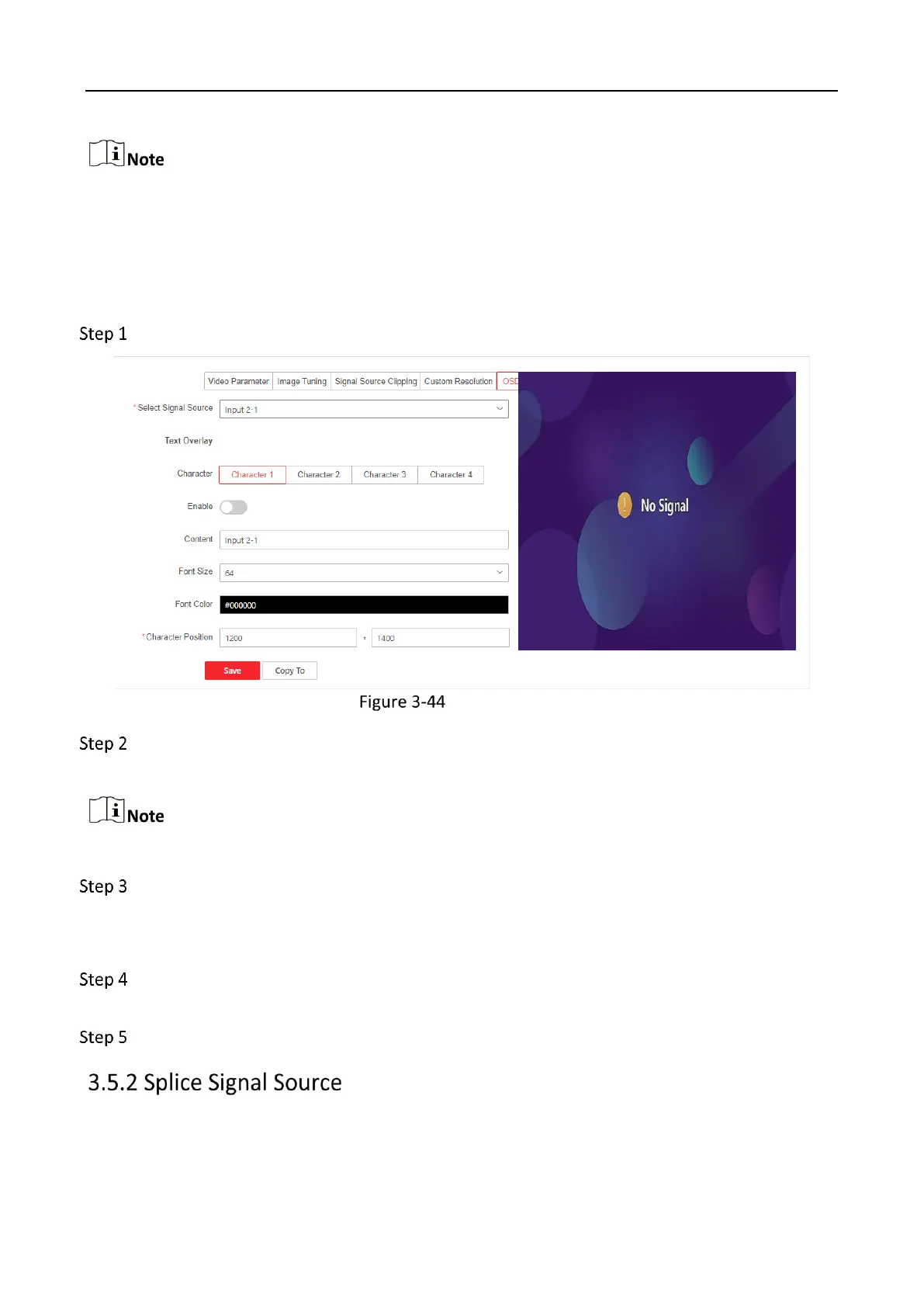

Set OSD Display
You can add multiple On-Screen Displays (OSDs) to the input signal image.
Click OSD Display and select a signal source.
Set OSD Display
Select a character, and then switch on Enable to overlay the character to the input signal
image.
You can overlay up to 4 characters to the input signal image.
Enter the content, and set the font size, font color, and character position according to
requirements.
You can also drag the character to adjust its position.
(Optional) Click Copy To to copy the current signal source configuration to other signal
sources.
Click Save.
This function allows you to splice multiple signal source images into one signal source image. After
the signal source splicing, the spliced signal sources will disappear from the signal source list.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
