HIKVISION DS-C30S-S23 User Manual

Video Wall Controller • User Manual
14

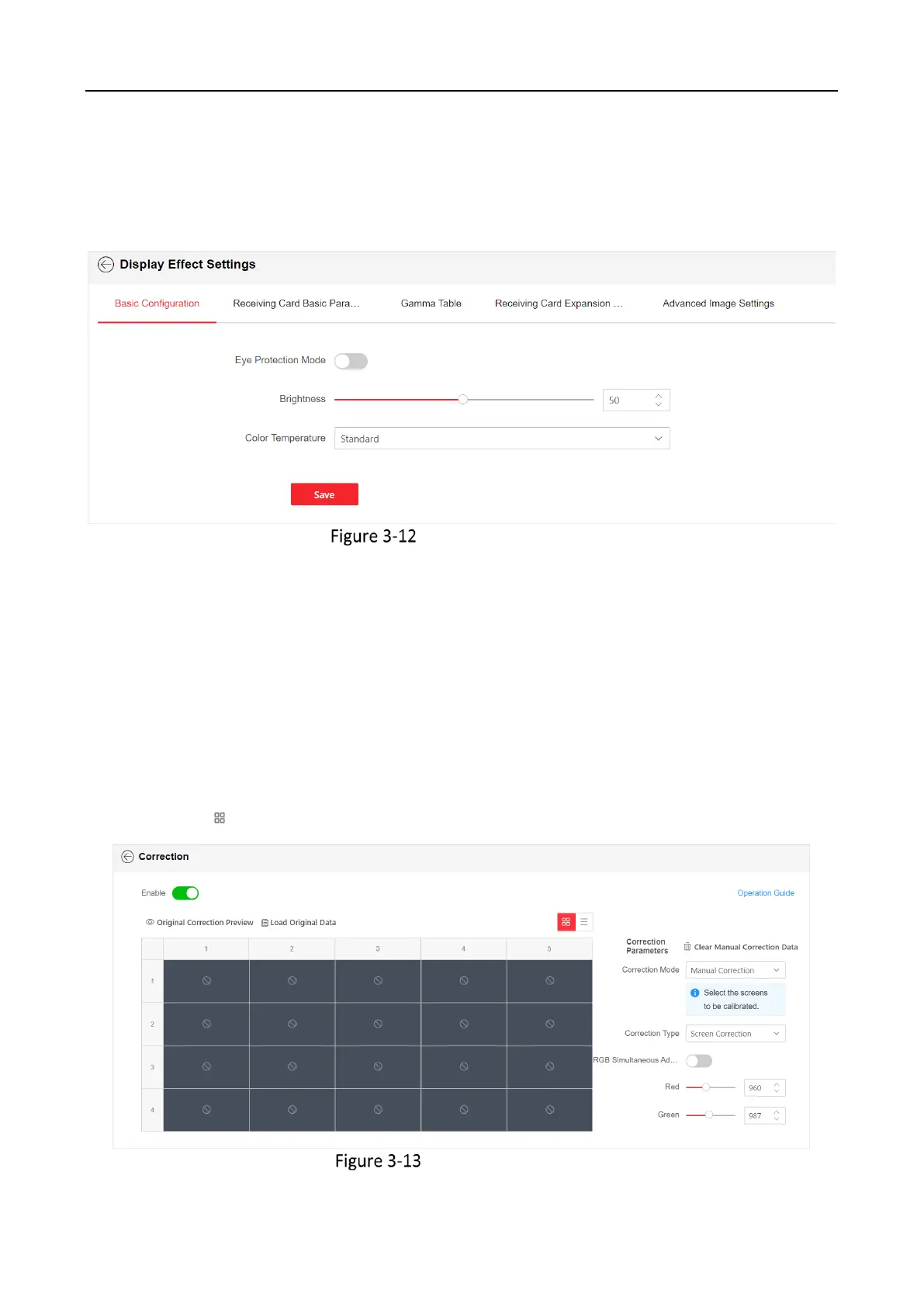

Configure Display Effect
Click Display Effect Settings to configure basic screen parameters, Gamma table, receiving card
expansion parameters, and advanced image parameters and view the receiving card basic
parameters.
Configure Display Effect
Correct Screen or Seam
When you enable correction for the first time, load the original correction data to make the data in
the light board consistent with the data of the receiving card. Select File Correction if the light
board data is missing. Otherwise, select Manual Correction.
If there is color difference or seam, you can adjust the RGB values of the screen or seam.
 Select manual correction:
1) Switch on Enable to start the correction configuration.
2) Select the corrected area.
− Click to select the area to be corrected.
Select Correction Area

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
