HIKVISION DS-C30S-S23 User Manual

Video Wall Controller • User Manual
15

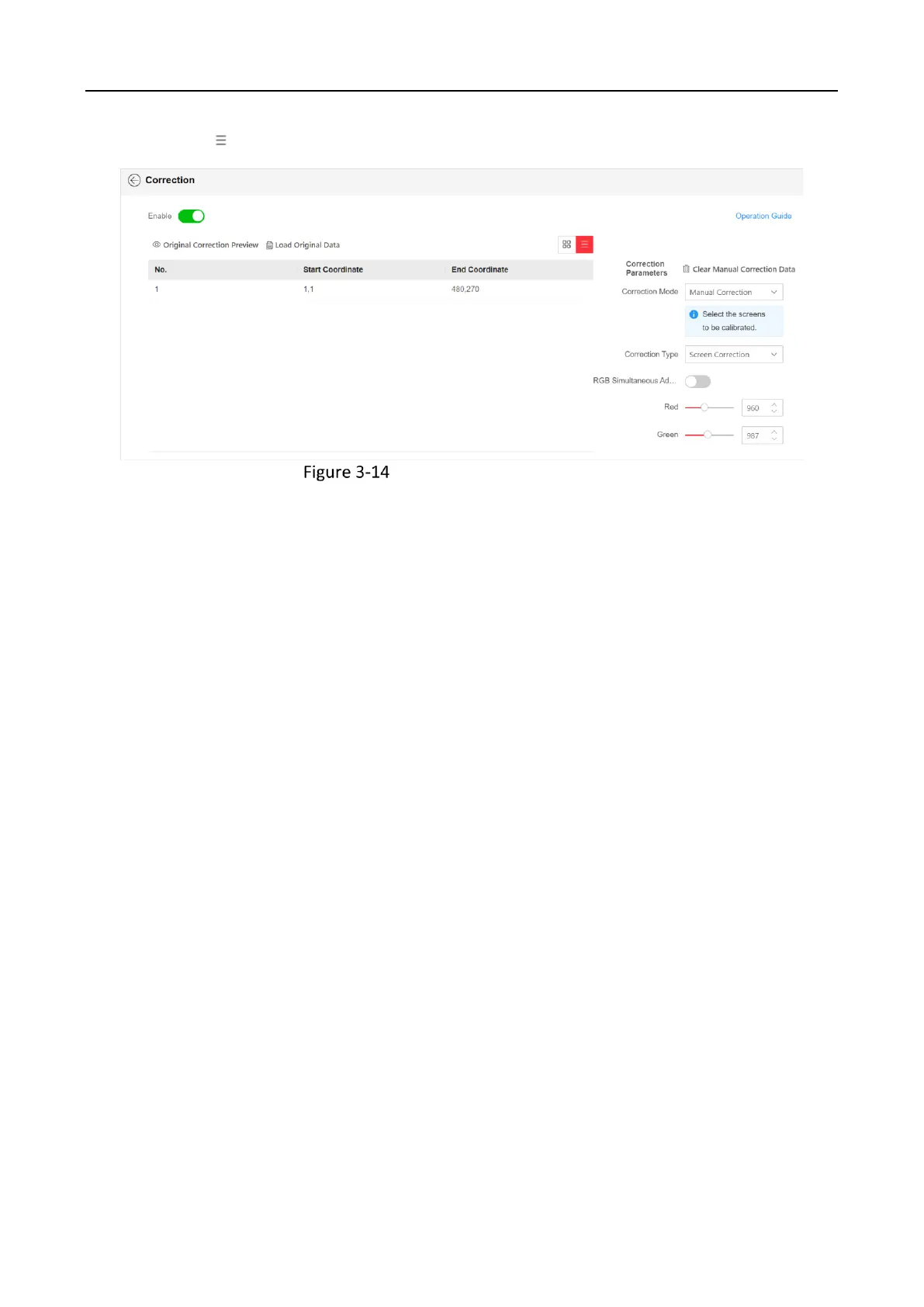

− Click to enter the start and end coordinates of the area to be corrected.
Set Correction Area Coordinate
3) Click Original Correction Preview to preview the original correction data.
4) Click Load Original Data to load the factory correction data of light board.
5) If the light board data still exists, select Manual Correction.
6) Select a correction type.
− Select Screen Correction.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
