HIKVISION DS-C30S-S23 User Manual

Video Wall Controller • User Manual
30

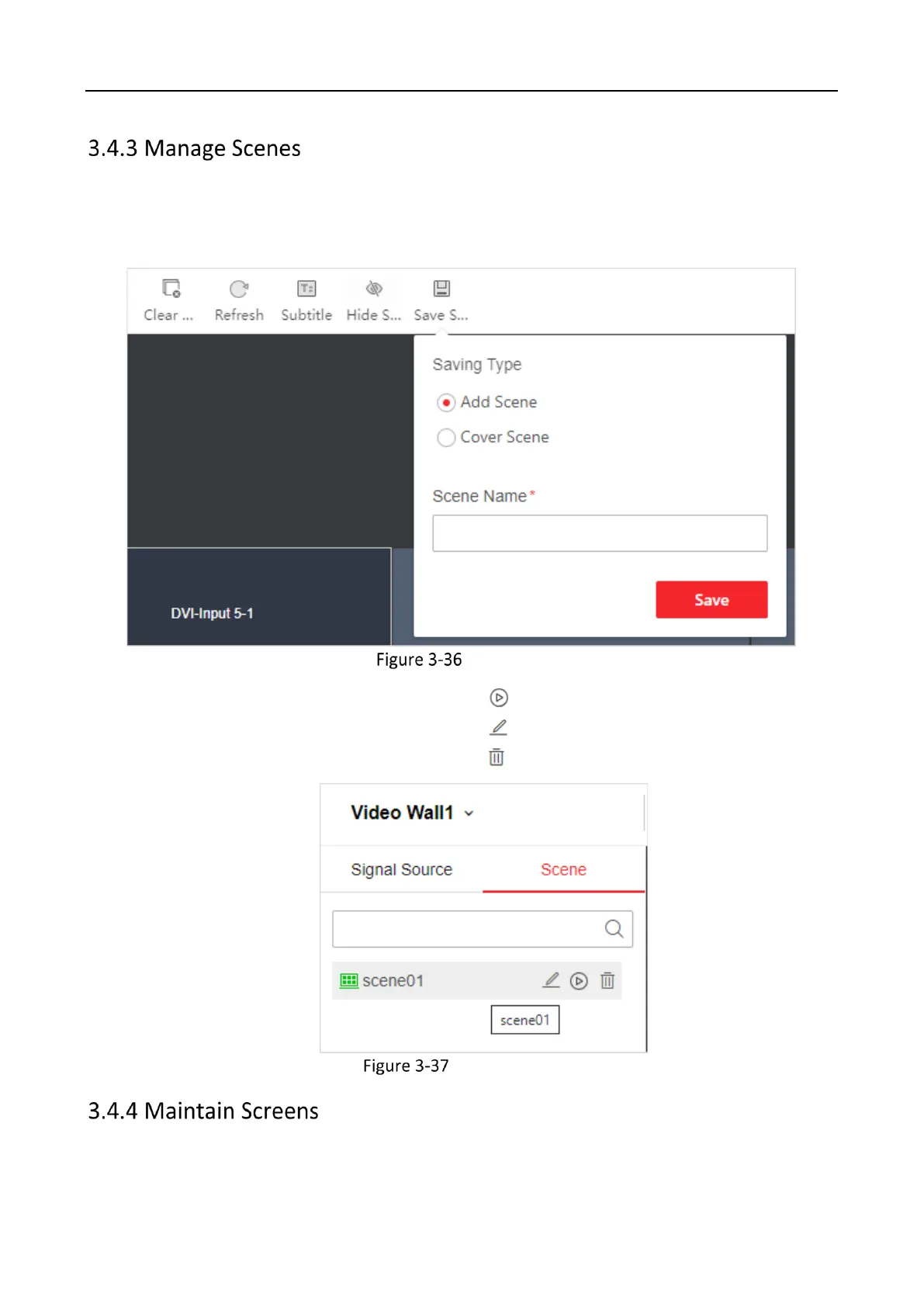

Up to 128 scenes are supported. Go to Video Wall Operation to manage scenes.
 Click Save Scene to save the current video wall configuration as a new scene or overwrite the
existing scene.
Save Scene
 Click Scene and hover over a scene name. Click to call the scene.
 Click Scene and hover over a scene name. Click to edit the scene name.
 Click Scene and hover over a scene name. Click to delete the scene.
Manage Scene

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
