HIKVISION DS-C30S-S23 User Manual

Video Wall Controller • User Manual
32
Select an input source type.
Set the image brightness, contrast, color, and sharpness.
Adjust the image position.
(Optional) Click Copy to All Screens to copy the screen parameters to all screens.
(Optional) Click to power on the screen or click to power off the screen. You can
also power on or power off the screen via the serial port.

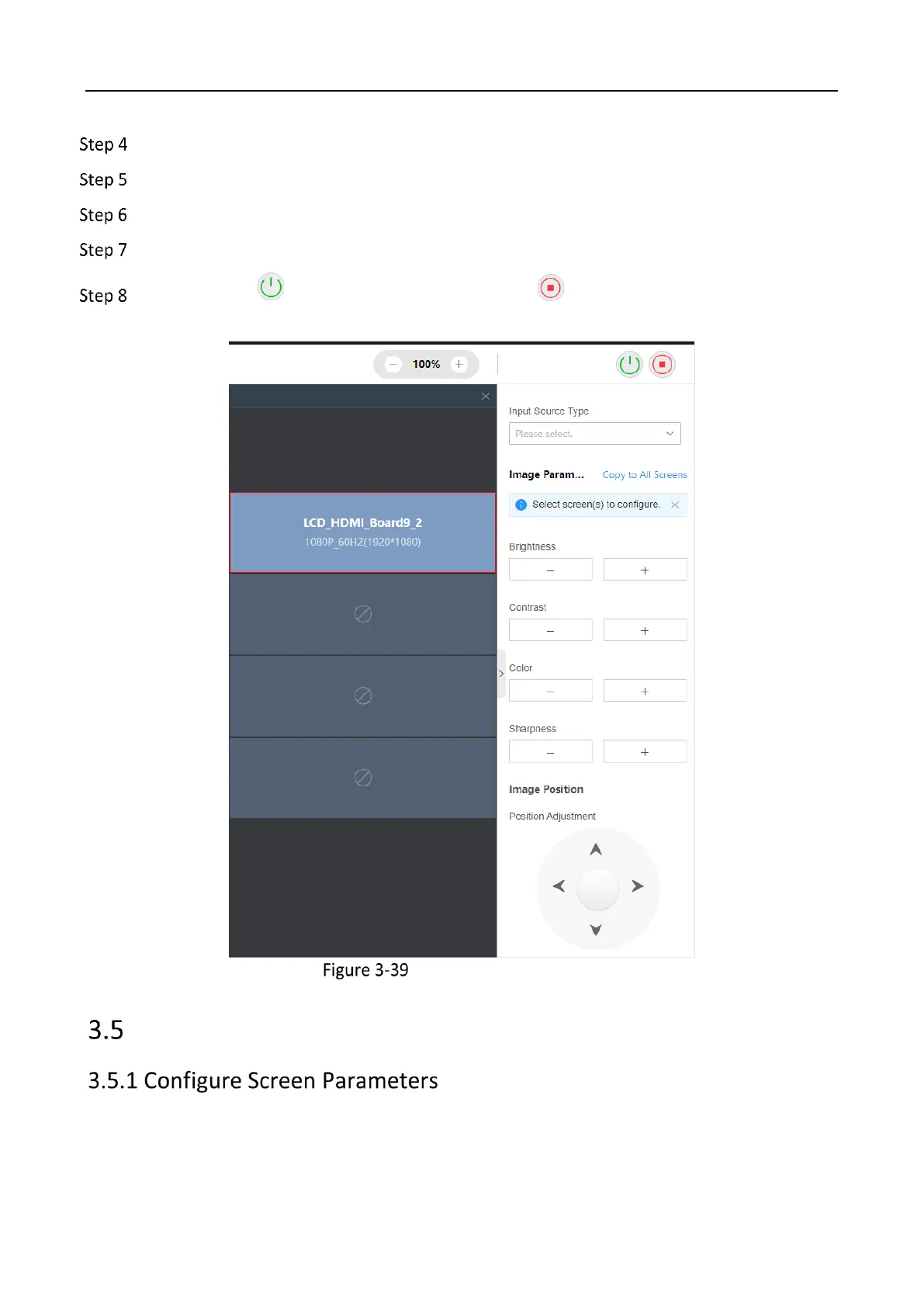

Screen Maintenance Page
Configure Screen Display Effect
Go to Configuration → Signal Source Settings → Image Settings to configure video parameters,
image tuning, signal source clipping, resolution, and OSD display.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
